Equipment Management
Cat PL161 Attachment Tracker
The Cat PL161 Attachment Tracker is the most advanced OEM integrated solution for attachment tracking. The PL161 mounts easily to your attachments or anything else you want to track.
Specifications
Features
Attachment Tracking Made Easy
- The PL161 can be mounted to any asset brand.
- View the location of your attachments across multiple work sites.

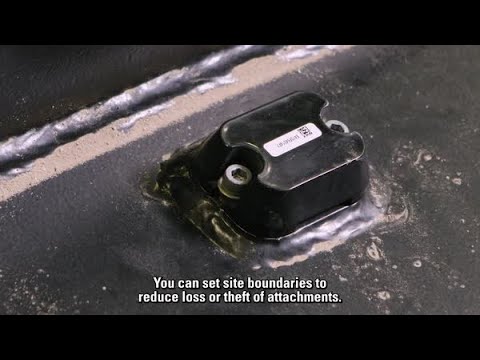

- Reduce misplacement or theft of attachments by setting up jobsite boundaries (geofences).
- Track working hours per attachment to help predict the need for replacement wear parts or to replace the attachment itself.
- The PL161’s compact size allows you to collect data about your attachment without interfering with the work it is doing.
- View and track your attachments through your PC’s internet browser or mobile device.
- The PL161 comes pre-installed on many Cat attachments for excavators.*
* Availability may vary by region, consult your Cat dealer for details.
Rugged and Reliable
- The PL161 is designed to be extremely rugged and maintenance-free to allow for installation in locations on assets that are exposed to harsh work environments.
- The PL161 is battery powered for up to two years, and communicates via Bluetooth® low energy technology.
- The PL161’s firmware is pre-configured and installed.
Work Tool Recognition
- Save more time with the work tool recognition feature available on select track excavator and large wheel loader models.*
- A simple shake of the attached tool confirms its identity and ensures all the attachment settings (pressure, flow, and dimensions) are correct so you can work quickly and efficiently.
- Many excavator models (GC & GX excluded) feature work tool profiles that automatically import attachment settings into Cat Grade, Cat E-fence, and more.
* Availability may vary by region, consult your Cat dealer for details.
How It Works
- The PL161 sends a signal to the Bluetooth® receiver or PL542 on the machine.
- Location updates are sent to the VisionLink® using cellular and satellite connectivity for full fleet management capability.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
312/A-Linkage, 4-Tine
Weight
937 lb
Width
40 in
Tine Spacing
12.2 in
320 – Tier 3 Medium Excavators
Net Power – ISO 9249
117 kW
Operating Weight
21300 kg
Maximum Digging Depth
6720 mm
323 – Tier 3 Medium Excavators
Net Power – ISO 9249
117 kW
Operating Weight
22900 kg
Maximum Digging Depth
6730 mm
326 Medium Excavators
Net Power – ISO 9249
157.8 kW
Operating Weight
25700 kg
Maximum Digging Depth
6820 mm
330 GC – Tier 3 Medium Excavators
Net Power – ISO 9249
157.8 kW
Operating Weight
28900 kg
Maximum Digging Depth
7260 mm
330 Medium Excavators
Net Power – ISO 9249
193.8 kW
Operating Weight
31400 kg
Maximum Digging Depth
7250 mm
336 Large Excavators
Net Power – ISO 9249
311 HP
Operating Weight
79100 lb
Maximum Digging Depth
24.7 ft
345 GC Large Excavators
Net Power – ISO 9249
258 kW
Operating Weight
42200 kg
Maximum Digging Depth
7200 mm
B-linkage, 3-tine
Weight
1273 lb
Width
33 in
Tine Spacing
15.75 in
B-Linkage, 4 Tine
Weight
1808 lb
Width
48 in
Tine Spacing
15.75 in
B-linkage, 4-tine
Weight
1502 lb
Width
49 in
Tine Spacing
15.75 in
B-Linkage, 5 Tine
Weight
2315 lb
Width
60 in
Tine Spacing
15.75 in
B-linkage, 5-tine
Weight
1950 lb
Width
65 in
Tine Spacing
15.75 in
CB-Linkage, 3 Tine
Weight
1555 lb
Width
36 in
Tine Spacing
15.75 in
CB-Linkage, 4 Tine
Weight
2022 lb
Width
48 in
Tine Spacing
15.75 in
CB-Linkage, 5 Tine
Weight
2406 lb
Width
60 in
Tine Spacing
15.75 in
Clean-up Bucket 1500 mm (60 in): 439-7298
Width
60 in
Capacity
1.33 yd³
Weight
1389 lb
Clean-up Bucket 1500 mm (60 in): 449-8618
Width
60 in
Capacity
1.33 yd³
Weight
1434 lb
Clean-up Bucket 1800 mm (72 in): 439-7308
Width
72 in
Capacity
2.09 yd³
Weight
2157 lb
Clean-up Bucket 1800 mm (72 in): 439-7323
Width
72 in
Capacity
3.24 yd³
Weight
3183 lb
Clean-up Bucket 1800 mm (72 in): 439-7326
Width
72 in
Capacity
3.26 yd³
Weight
3120 lb
Clean-up Bucket 1800 mm (72 in): 449-8617
Width
72 in
Capacity
1.63 yd³
Weight
1649 lb
Clean-up Bucket 1800 mm (72 in): 449-8626
Width
72 in
Capacity
3.24 yd³
Weight
3353 lb
Clean-up Bucket 2000 mm (78 in): 439-7330
Width
78 in
Capacity
3.66 yd³
Weight
4822 lb
Clean-up Bucket 2000 mm (78 in): 449-8625
Width
78 in
Capacity
3.58 yd³
Weight
3567 lb
Clean-up Bucket 2000 mm (78 in): 449-8628
Width
78 in
Capacity
3.66 yd³
Weight
5044 lb
Clean-up Bucket 2100 mm (83 in): 439-7325
Width
83 in
Capacity
3.81 yd³
Weight
3457 lb
Clean-up Bucket 2400 mm (94 in): 449-8627
Width
94 in
Capacity
4.42 yd³
Weight
5999 lb
CVP110
Impulse Force
24669.0 lb
Cycles/Minimum
2200
Base Plate Width
34.0 in
CVP75
Impulse Force
16508.0 lb
Cycles/Minimum
2200
Base Plate Width
29.0 in
CW-20
Weight
418 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
CW-20
Weight
418 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
CW-20S
Weight
418 lb
Width
16.8 in
Load Rating, Hoisting Hook
11 ton (US)
CW-20S
Weight
418 lb
Width
16.8 in
Load Rating, Hoisting Hook
11 ton (US)
CW-30
Weight
462 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
CW-30
Weight
462 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
Out of stockCW-30S
Weight
55 lb
Width
7 in
Load Rating, Hoisting Hook
11 ton (US)
CW-30S
Weight
462 lb
Width
16.8 in
Load Rating, Hoisting Hook
11 ton (US)
CW-40
Weight
528 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
CW-40
Weight
528 lb
Width
22 in
Load Rating, Hoisting Hook
11 ton (US)
CW-40S
Weight
473 lb
Width
16.8 in
Load Rating, Hoisting Hook
11 ton (US)
CW-40S
Weight
473 lb
Width
16.8 in
Load Rating, Hoisting Hook
11 ton (US)
CW-45
Weight
946 lb
Width
27.6 in
Load Rating, Hoisting Hook
15.4 ton (US)
CW-45
Weight
946 lb
Width
27.6 in
Load Rating, Hoisting Hook
15.4 ton (US)
CW-45S
Weight
880 lb
Width
22 in
Load Rating, Hoisting Hook
15.4 ton (US)
CW-45S
Weight
880 lb
Width
22 in
Load Rating, Hoisting Hook
15.4 ton (US)
CW-55
Weight
1540 lb
Width
33.2 in
Load Rating, Hoisting Hook
22 ton (US)
CW-55
Weight
1540 lb
Width
33.2 in
Load Rating, Hoisting Hook
22 ton (US)
CW-70
Weight
2750 lb
Width
33.6 in
Load Rating, Hoisting Hook
22 ton (US)
DB-Linkage, 3 Tine
Weight
1685 lb
Width
36 in
Tine Spacing
15.75 in
DB-linkage, 3-tine
Weight
1528 lb
Width
33 in
Tine Spacing
15.75 in
DB-Linkage, 4 Tine
Weight
2214 lb
Width
48 in
Tine Spacing
15.75 in
DB-linkage, 4-tine
Weight
1921 lb
Width
49 in
Tine Spacing
15.75 in
DB-Linkage, 5 Tine
Weight
2538 lb
Width
60 in
Tine Spacing
15.75 in
DB-linkage, 5-tine
Weight
2205 lb
Width
65 in
Tine Spacing
15.75 in
Ditch Cleaning Bucket 1200 mm (48 in): 439-7299
Width
48 in
Capacity
0.74 yd³
Weight
855 lb
Ditch Cleaning Bucket 1200 mm (48 in): 441-6077
Width
48 in
Capacity
0.74 yd³
Weight
852 lb
Ditch Cleaning Bucket 1200 mm (48 in): 452-6069
Width
48 in
Capacity
0.74 yd³
Weight
718 lb
Ditch Cleaning Bucket 1500 mm (60 in): 439-7300
Width
60 in
Capacity
0.97 yd³
Weight
1003 lb
Ditch Cleaning Bucket 1500 mm (60 in): 439-7301
Width
60 in
Capacity
0.97 yd³
Weight
1024 lb
Ditch Cleaning Bucket 1800 mm (71 in): 460-1994
Width
71 in
Capacity
0.74 yd³
Weight
928 lb
Ditch Cleaning Bucket 1800 mm (72 in): 439-7312
Width
72 in
Capacity
0.89 yd³
Weight
1191 lb
Ditch Cleaning Bucket 1800 mm (72 in): 439-7324
Width
72 in
Capacity
2.56 yd³
Weight
2529 lb
Ditch Cleaning Bucket 1800 mm (72 in): 439-7327
Width
72 in
Capacity
2.56 yd³
Weight
2474 lb
Ditch Cleaning Bucket 1800 mm (72 in): 439-7332
Width
72 in
Capacity
1.18 yd³
Weight
1129 lb
Ditch Cleaning Bucket 1800 mm (72 in): 439-7341
Width
72 in
Capacity
0.89 yd³
Weight
1046 lb
Ditch Cleaning Bucket 1800 mm (72 in): 441-6091
Width
72 in
Capacity
1.96 yd³
Weight
1709 lb
Ditch Cleaning Bucket 1800 mm (72 in): 442-1786
Width
72 in
Capacity
0.89 yd³
Weight
1207 lb
Ditch Cleaning Bucket 1800 mm (72 in): 462-8433
Width
72 in
Capacity
2.56 yd³
Weight
2564 lb
Ditch Cleaning Bucket 2000 mm (78 in): 439-7311
Width
78 in
Capacity
1.31 yd³
Weight
1389 lb
Ditch Cleaning Bucket 2000 mm (79 in): 462-8434
Width
79 in
Capacity
2.85 yd³
Weight
2756 lb
Ditch Cleaning Bucket 2100 mm (83 in): 441-6087
Width
83 in
Capacity
1.91 yd³
Weight
1784 lb
Ditch Cleaning Bucket 2100 mm (83 in): 441-6090
Width
83 in
Capacity
1.69 yd³
Weight
1746 lb
Ditch Cleaning Bucket 2100 mm (83 in): 441-6093
Width
83 in
Capacity
2.31 yd³
Weight
1905 lb
Ditch Cleaning Bucket 2200 mm (87 in): 462-8440
Width
87 in
Capacity
3.14 yd³
Weight
2967 lb
Ditch Cleaning Bucket 2200 mm (87 in): 462-8441
Width
87 in
Capacity
3.14 yd³
Weight
2970 lb
Ditch Cleaning Bucket 2400 mm (94 in): 456-2378
Width
94 in
Capacity
2.12 yd³
Weight
3289 lb
Ditch Cleaning Bucket 2400 mm (94 in): 462-8431
Width
94 in
Capacity
2.67 yd³
Weight
3117 lb
Ditch Cleaning Bucket 2400 mm (94 in): 462-8438
Width
94 in
Capacity
3.51 yd³
Interface
For use with CW-45 Dedicated Coupler
Ditch Cleaning Tilt Bucket 1200 mm (48 in): 509-9130
Width
48 in
Capacity
0.63 yd³
Weight
1240 lb
Ditch Cleaning Tilt Bucket 1500 mm (60 in): 509-9131
Width
60 in
Capacity
0.75 yd³
Weight
1424 lb
Ditch Cleaning Tilt Bucket 1500 mm (60 in): 509-9132
Width
60 in
Capacity
0.98 yd³
Weight
1443 lb
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 482-0843
Width
72 in
Capacity
1.18 yd³
Weight
1728 lb
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 509-9134
Width
72 in
Capacity
0.78 yd³
Weight
1597 lb
Ditch Cleaning Tilt Bucket 1800 mm (72 in): 509-9135
Width
72 in
Capacity
0.78 yd³
Weight
1812 lb
Extreme Duty Bucket 1200 mm (48 in): 528-4654
Width
48 in
Capacity
1.83 yd³
Weight
3419 lb
Extreme Duty Bucket 1250 mm (49 in): 518-9318
Width
49 in
Capacity
2.09 yd³
Weight
4658 lb
Extreme Duty Bucket 1400 mm (55 in): 518-9319
Width
55 in
Capacity
2.44 yd³
Weight
4967 lb
Extreme Duty Bucket 1550 mm (61 in): 518-9340
Width
61 in
Capacity
3.41 yd³
Weight
6530 lb
Extreme Duty Bucket 1550 mm (61 in): 525-4053
Width
61 in
Capacity
2.59 yd³
Weight
888 lb
Extreme Duty Bucket 1600 mm (63 in): 518-9339
Width
63 in
Capacity
3.41 yd³
Weight
6669 lb
Extreme Duty Bucket 1600 mm (63 in): 528-8157
Width
63 in
Capacity
3.48 yd³
Weight
6914 lb
Extreme Duty Bucket 1650 mm (65 in): 518-9341
Width
65 in
Capacity
3.62 yd³
Weight
6927 lb
Extreme Duty Bucket 1700 mm (67 in): 518-9331
Width
67 in
Capacity
3.15 yd³
Weight
5822 lb
Extreme Duty Bucket 1950 mm (77 in): 528-8154
Width
77 in
Capacity
3.64 yd³
Weight
683 lb
Extreme Duty Bucket 2000 mm (79 in): 519-5289
Width
79 in
Capacity
5.02 yd³
Weight
9546 lb
Extreme Duty Bucket 2050 mm (81 in): 519-5409
Width
81 in
Capacity
5.75 yd³
Weight
12297 lb
Extreme Duty Bucket 2050 mm (81 in): 519-5410
Width
81 in
Capacity
5.75 yd³
Weight
12238 lb
Extreme Duty Bucket 2150 mm (85 in): 519-5411
Width
85 in
Capacity
6.02 yd³
Weight
12710 lb
Extreme Duty Bucket 2150 mm (85 in): 519-5412
Width
85 in
Capacity
6.02 yd³
Weight
13325 lb
Extreme Duty Bucket 2200 mm (87 in): 519-5468
Width
87 in
Capacity
6.54 yd³
Weight
16376 lb
Extreme Duty Bucket 2200 mm (87 in): 519-5476
Width
87 in
Capacity
6.54 yd³
Weight
15318 lb
Extreme Duty Bucket 2250 mm (89 in): 519-5413
Width
89 in
Capacity
6.54 yd³
Weight
13115 lb
Extreme Duty Bucket 2350 mm (93 in): 519-5477
Width
93 in
Capacity
7.06 yd³
Weight
16074 lb
Extreme Duty Bucket 2500 mm (98 in): 519-5478
Width
98 in
Capacity
7.46 yd³
Weight
16585 lb
Extreme Duty Bucket 2550 mm (100 in): 588-1489
Width
100 in
Capacity
7.85 yd³
Weight
18303 lb
Extreme Duty Bucket 2800 mm (110 in): 588-1662
Width
110 in
Capacity
8.25 yd³
Weight
18968 lb
G113 312-Linkage Contractors’ Grapple
Machine Class
11-15 Ton Excavators
Weight
1885 lb
Jaw Opening
86.4 in
G120 B-Linkage Contractors’ Grapple
Machine Class
19-23 Ton Excavators
Weight
3350 lb
Jaw Opening
105.8 in
G126 B-Linkage Contractors’ Grapple
Machine Class
19-23 Ton Excavators
Weight
4250 lb
Jaw Opening
123.1 in
G136 DB-Linkage Contractors’ Grapple
Machine Class
24-40 Ton Excavators
Weight
5130 lb
Jaw Opening
126.9 in
G149 TB-Linkage Contractors’ Grapple
Machine Class
30-52 Ton Excavators
Weight
6724 lb
Jaw Opening
135.2 in
G217 GC Demolition & Sorting Grapple: 587-8657
Grapple Area
0.78 yd³
Weight
2037 lb
Machine Class
15-19 Ton Excavators
G312 GC Demolition & Sorting Grapple: 587-8713
Grapple Area
0.52 yd³
Weight
1795 lb
Machine Class
11-15 Ton Excavators
G312 GC Demolition & Sorting Grapple: 587-8715
Grapple Area
0.52 yd³
Weight
1907 lb
Machine Class
11-15 Ton Excavators
G313 GC Demolition & Sorting Grapple: 587-8718
Grapple Area
0.59 yd³
Weight
1863 lb
Machine Class
12-17 Ton Excavators
G313 GC Demolition & Sorting Grapple: 587-8719
Grapple Area
0.59 yd³
Weight
1973 lb
Machine Class
12-17 Ton Excavators
G314 Demolition & Sorting Grapple: 587-8963
Grapple Area
0.49 yd³
Weight
2337 lb
Machine Class
12-18 Ton Excavators
G317 GC Demolition & Sorting Grapple: 587-8720
Grapple Area
0.78 yd³
Weight
2518 lb
Machine Class
17-25 Ton Excavators
G317 GC Demolition & Sorting Grapple: 587-8721
Grapple Area
0.78 yd³
Weight
2646 lb
Machine Class
17-25 Ton Excavators
G318 Demolition & Sorting Grapple: 587-8965
Grapple Area
0.72 yd³
Weight
2888 lb
Machine Class
18-25 Ton Excavators
G318 Demolition & Sorting Grapple: 587-8966
Grapple Area
0.78 yd³
Weight
2884 lb
Machine Class
18-25 Ton Excavators
G318 WH Demolition & Sorting Grapple: 587-8970
Grapple Area
1.05 yd³
Weight
3190 lb
Machine Class
20-25 Ton Excavators
G318 WH Demolition & Sorting Grapple: 587-8975
Grapple Area
1.05 yd³
Weight
3190 lb
Machine Class
20-25 Ton Excavators
G318 WH Demolition & Sorting Grapple: 587-8976
Grapple Area
1.44 yd³
Weight
3569 lb
Machine Class
20-25 Ton Excavators
G324 Demolition & Sorting Grapple: 587-8977
Grapple Area
0.98 yd³
Weight
3940 lb
Machine Class
23-30 Ton Excavators
G324 Demolition & Sorting Grapple: 587-8978
Grapple Area
1.05 yd³
Weight
3818 lb
Machine Class
23-30 Ton Excavators
G324 WH Demolition & Sorting Grapple: 587-8985
Grapple Area
1.96 yd³
Weight
4418 lb
Machine Class
23-30 Ton Excavators
G324 WH Demolition & Sorting Grapple: 587-8986
Grapple Area
2.35 yd³
Weight
4639 lb
Machine Class
23-30 Ton Excavators
G324 WH Demolition & Sorting Grapple: 587-8988
Grapple Area
2.62 yd³
Weight
4861 lb
Machine Class
23-30 Ton Excavators
G332 Demolition & Sorting Grapple: 587-8991
Grapple Area
1.11 yd³
Weight
4570 lb
Machine Class
30-40 Ton Excavators
G345 Demolition & Sorting Grapple: 608-0756
Grapple Area
1.31 yd³
Weight
5337 lb
Machine Class
35-65 Ton Excavators
General Duty – Leveling Edge Bucket 1000 mm (39 in): 477-3378
Width
39 in
Capacity
1.22 yd³
Weight
2006 lb
General Duty – Leveling Edge Bucket 1184 mm (47 in): 490-0055
Width
47 in
Capacity
1.05 yd³
Weight
1381 lb
General Duty – Leveling Edge Bucket 1200 mm (47 in): 441-4768
Width
47 in
Capacity
1.19 yd³
Weight
1598 lb
General Duty – Leveling Edge Bucket 1200 mm (47 in): 455-0749
Width
47 in
Capacity
1.56 yd³
Weight
1855 lb
General Duty – Leveling Edge Bucket 1200 mm (47 in): 477-3379
Width
47 in
Capacity
1.54 yd³
Weight
2277 lb
General Duty – Leveling Edge Bucket 1200 mm (47 in): 489-4229
Width
47 in
Capacity
1.04 yd³
Weight
1715 lb
General Duty – Leveling Edge Bucket 1300 mm (51 in): 477-3380
Width
51 in
Capacity
1.70 yd³
Weight
2396 lb
General Duty – Leveling Edge Bucket 1400 mm (55 in): 468-3206
Width
55 in
Capacity
1.87 yd³
Weight
2028 lb
General Duty – Leveling Edge Bucket 1400 mm (55 in): 471-0120
Width
55 in
Capacity
1.43 yd³
Weight
1766 lb
General Duty – Leveling Edge Bucket 1400 mm (55 in): 477-3381
Width
55 in
Capacity
1.87 yd³
Weight
5215 lb
General Duty – Leveling Edge Bucket 1500 mm (59 in): 467-1824
Width
59 in
Capacity
2.24 yd³
Weight
2652 lb
General Duty – Leveling Edge Bucket 1500 mm (59 in): 477-3382
Width
59 in
Capacity
2.02 yd³
Weight
2639 lb
General Duty – Leveling Edge Bucket 1500 mm (60 in): 468-1691
Width
60 in
Capacity
2.06 yd³
Weight
2127 lb
General Duty – Leveling Edge Bucket 1600 mm (63 in): 467-1825
Width
63 in
Capacity
2.43 yd³
Weight
2800 lb
General Duty – Leveling Edge Bucket 600 mm (24 in): 489-4228
Width
24 in
Capacity
0.42 yd³
Weight
1090 lb
General Duty – Leveling Edge Bucket 650 mm (25 in): 481-1106
Width
25 in
Capacity
0.61 yd³
Weight
1116 lb
General Duty – Leveling Edge Bucket 650 mm (25 in): 485-7488
Width
25 in
Capacity
0.92 yd³
Weight
1312 lb
General Duty – Leveling Edge Bucket 650 mm (25 in): 485-7621
Width
25 in
Capacity
0.90 yd³
Weight
1556 lb
General Duty – Leveling Edge Bucket 690 mm (27 in): 491-0536
Width
27 in
Capacity
0.52 yd³
Weight
978 lb
General Duty – Leveling Edge Bucket 790 mm (31 in): 455-0746
Width
31 in
Capacity
0.61 yd³
Weight
1080 lb
General Duty – Leveling Edge Bucket 800 mm (31 in): 462-8167
Width
31 in
Capacity
0.73 yd³
Weight
1201 lb
General Duty – Leveling Edge Bucket 800 mm (31 in): 485-7596
Width
31 in
Capacity
0.89 yd³
Weight
1435 lb
General Duty – Leveling Edge Bucket 800 mm (31 in): 485-7622
Width
31 in
Capacity
0.90 yd³
Weight
1732 lb
General Duty – Leveling Edge Bucket 800 mm (31 in): 490-5273
Width
31 in
Capacity
0.62 yd³
Weight
1325 lb
General Duty – Leveling Edge Bucket 996 mm (39 in): 455-0747
Width
39 in
Capacity
0.83 yd³
Weight
1239 lb
General Duty – Leveling Edge Bucket 996 mm (39 in): 455-0748
Width
39 in
Capacity
0.93 yd³
Weight
1391 lb
General Duty – Wide Tip Bucket 1100 mm (44 in): 540-4086
Width
65 in
Capacity
1.96 yd³
Weight
2637 lb
General Duty – Wide Tip Bucket 1250 mm (50 in): 540-4087
Width
65 in
Capacity
2.77 yd³
Weight
3012 lb
General Duty – Wide Tip Bucket 1350 mm (54 in): 528-2199
Width
54 in
Capacity
2.9 yd³
Weight
4372 lb
General Duty – Wide Tip Bucket 1400 mm (56 in): 540-4088
Width
65 in
Capacity
2.77 yd³
Weight
3241 lb
General Duty – Wide Tip Bucket 1500 mm (60 in): 528-2200
Width
80 in
Capacity
5 yd³
Weight
5410 lb
General Duty – Wide Tip Bucket 1550 mm (62 in): 540-4089
Width
70.9 in
Capacity
2.97 yd³
Weight
3276 lb
General Duty – Wide Tip Bucket 1650 mm (66 in): 528-2201
Width
66 in
Capacity
3.68 yd³
Weight
4971 lb
General Duty – Wide Tip Bucket 1800 mm (72 in): 528-2202
Width
72 in
Capacity
4.07 yd³
Weight
923 lb
General Duty – Wide Tip Bucket 1950 mm (77 in): 528-2203
Width
77 in
Capacity
4.46 yd³
Weight
966 lb
General Duty – Wide Tip Bucket 800 mm (32 in): 540-4084
Width
32 in
Capacity
1.54 yd³
Weight
2308 lb
General Duty – Wide Tip Bucket 900 mm (36 in): 528-2198
Width
43 in
Capacity
1.77 yd³
Weight
3228 lb
General Duty – Wide Tip Bucket 950 mm (38 in): 540-4085
Width
55 in
Capacity
1.95 yd³
Weight
2524 lb
General Duty Bucket 1000 mm (39 in): 433-0356
Width
39 in
Capacity
0.82 yd³
Weight
1009 lb
General Duty Bucket 1000 mm (39 in): 490-5274
Width
48 in
Capacity
1 yd³
Weight
1563 lb
General Duty Bucket 1000 mm (39 in): 507-0131
Width
39 in
Capacity
0.78 yd³
Weight
996 lb
General Duty Bucket 1000 mm (39 in): 550-9470
Width
39 in
Capacity
1.22 yd³
Weight
1519 lb
General Duty Bucket 1000 mm (39 in): 571-2861
Width
39 in
Capacity
0.78 yd³
Weight
922 lb
General Duty Bucket 1000 mm (39 in): 571-2889
Width
39 in
Capacity
0.82 yd³
Weight
1023 lb
General Duty Bucket 1000 mm (39 in): 571-2944
Width
39 in
Capacity
0.78 yd³
Weight
1001 lb
General Duty Bucket 1000 mm (39 in): 591-0062
Width
39 in
Capacity
0.69 yd³
Weight
844 lb
General Duty Bucket 1000 mm (40 in): 550-9723
Width
40 in
Capacity
1.35 yd³
Weight
1781 lb
General Duty Bucket 1000 mm (40 in): 571-2892
Width
40 in
Capacity
0.78 yd³
Weight
996 lb
General Duty Bucket 1050 mm (41 in): 550-9526
Width
41 in
Capacity
1.18 yd³
Weight
1640 lb
General Duty Bucket 1050 mm (41 in): 550-9529
Width
41 in
Capacity
1.18 yd³
Weight
1508 lb
General Duty Bucket 1050 mm (41 in): 550-9764
Width
41 in
Capacity
1.46 yd³
Weight
1720 lb
General Duty Bucket 1050 mm (42 in): 370-3249
Width
42 in
Capacity
0.85 yd³
Weight
1087 lb
General Duty Bucket 1050 mm (42 in): 528-2160
Width
42 in
Capacity
1.98 yd³
Weight
3457 lb
General Duty Bucket 1050 mm (42 in): 540-4115
Width
42 in
Capacity
1.91 yd³
Weight
2429 lb
General Duty Bucket 1050 mm (42 in): 550-9438
Width
42 in
Capacity
1.31 yd³
Weight
1716 lb
General Duty Bucket 1050 mm (42 in): 550-9445
Width
42 in
Capacity
1.31 yd³
Weight
1563 lb
General Duty Bucket 1050 mm (42 in): 550-9634
Width
42 in
Capacity
1.31 yd³
Weight
1506 lb
General Duty Bucket 1050 mm (42 in): 550-9711
Width
42 in
Capacity
1.46 yd³
Weight
1847 lb
General Duty Bucket 1050 mm (42 in): 552-8209
Width
42 in
Capacity
1.52 yd³
Weight
1792 lb
General Duty Bucket 1050 mm (42 in): 552-8269
Width
42 in
Capacity
1.75 yd³
Weight
2130 lb
General Duty Bucket 1050 mm (42 in): 571-2855
Width
42 in
Capacity
0.84 yd³
Weight
968 lb
General Duty Bucket 1050 mm (42 in): 571-2866
Width
42 in
Capacity
0.85 yd³
Weight
1034 lb
General Duty Bucket 1050 mm (42 in): 571-2885
Width
42 in
Capacity
0.85 yd³
Weight
1123 lb
General Duty Bucket 1050 mm (42 in): 571-2901
Width
42 in
Capacity
0.84 yd³
Weight
1088 lb
General Duty Bucket 1050 mm (42 in): 571-2907
Width
42 in
Capacity
0.84 yd³
Weight
952 lb
General Duty Bucket 1050 mm (42 in): 594-7618
Width
42 in
Capacity
0.85 yd³
Weight
1026 lb
General Duty Bucket 1100 mm (43 in): 527-1253
Width
43 in
Capacity
0.92 yd³
Weight
1105 lb
General Duty Bucket 1100 mm (43 in): 550-9347
Width
43 in
Capacity
1.04 yd³
Weight
1246 lb
General Duty Bucket 1100 mm (43 in): 550-9379
Width
43 in
Capacity
1.04 yd³
Weight
1246 lb
General Duty Bucket 1100 mm (43 in): 571-2862
Width
43 in
Capacity
0.89 yd³
Weight
991 lb
General Duty Bucket 1100 mm (43 in): 571-2869
Width
43 in
Capacity
0.89 yd³
Weight
1019 lb
General Duty Bucket 1100 mm (43 in): 571-2893
Width
43 in
Capacity
0.89 yd³
Weight
1074 lb
General Duty Bucket 1150 mm (45 in): 519-5303
Width
45 in
Capacity
2.84 yd³
Weight
6107 lb
General Duty Bucket 1200 mm (47 in): 550-9765
Width
47 in
Capacity
1.74 yd³
Weight
1861 lb
General Duty Bucket 1200 mm (47 in): 554-3116
Width
47 in
Capacity
1.35 yd³
Weight
2171 lb
General Duty Bucket 1200 mm (47 in): 601-3993
Width
47 in
Capacity
1.18 yd³
Weight
1559 lb
General Duty Bucket 1200 mm (48 in): 388-9590
Width
48 in
Capacity
1.29 yd³
Weight
1475 lb
General Duty Bucket 1200 mm (48 in): 422-6976
Width
48 in
Capacity
1.56 yd³
Weight
1693 lb
General Duty Bucket 1200 mm (48 in): 528-2161
Width
48 in
Capacity
2.35 yd³
Weight
3763 lb
General Duty Bucket 1200 mm (48 in): 540-4116
Width
48 in
Capacity
2.26 yd³
Weight
2619 lb
General Duty Bucket 1200 mm (48 in): 550-9348
Width
48 in
Capacity
1.18 yd³
Weight
1347 lb
General Duty Bucket 1200 mm (48 in): 550-9380
Width
48 in
Capacity
1.18 yd³
Weight
1347 lb
General Duty Bucket 1200 mm (48 in): 550-9446
Width
48 in
Capacity
1.56 yd³
Weight
1713 lb
General Duty Bucket 1200 mm (48 in): 550-9465
Width
48 in
Capacity
1.56 yd³
Weight
1965 lb
General Duty Bucket 1200 mm (48 in): 550-9471
Width
48 in
Capacity
1.56 ft³
Weight
1702 lb
General Duty Bucket 1200 mm (48 in): 550-9635
Width
48 in
Capacity
1.56 yd³
Weight
1645 lb
General Duty Bucket 1200 mm (48 in): 550-9712
Width
48 in
Capacity
1.74 yd³
Weight
1989 lb
General Duty Bucket 1200 mm (48 in): 552-8210
Width
48 in
Capacity
1.8 yd³
Weight
1947 lb
General Duty Bucket 1200 mm (48 in): 552-8270
Width
48 in
Capacity
2.07 yd³
Weight
2319 lb
General Duty Bucket 1200 mm (48 in): 571-2856
Width
48 in
Capacity
1 yd³
Weight
1056 lb
General Duty Bucket 1200 mm (48 in): 571-2863
Width
48 in
Capacity
1 yd³
Weight
1056 lb
General Duty Bucket 1200 mm (48 in): 571-2870
Width
48 in
Capacity
1 yd³
Weight
1082 lb
General Duty Bucket 1200 mm (48 in): 571-2894
Width
48 in
Capacity
1 yd³
Weight
1138 lb
General Duty Bucket 1200 mm (48 in): 571-2902
Width
48 in
Capacity
1 yd³
Weight
1096 lb
General Duty Bucket 1200 mm (48 in): 571-2942
Width
48 in
Capacity
1 yd³
Weight
1128 lb
General Duty Bucket 1200 mm (48 in): 577-0360
Width
48 in
Capacity
1 yd³
Weight
1076 lb
General Duty Bucket 1250 mm (49 in): 601-1740
Width
49 in
Capacity
1.57 yd³
Weight
1797 lb
General Duty Bucket 1300 mm (51 in): 389-0254
Width
51 in
Capacity
1.41 yd³
Weight
1539 lb
General Duty Bucket 1300 mm (51 in): 550-9349
Width
51 in
Capacity
1.31 yd³
Weight
1415 lb
General Duty Bucket 1300 mm (51 in): 550-9447
Width
51 in
Capacity
1.7 yd³
Weight
1784 lb
General Duty Bucket 1300 mm (51 in): 550-9670
Width
51 in
Capacity
1.7 yd³
Weight
1709 lb
General Duty Bucket 1300 mm (51 in): 554-3113
Width
72 in
Capacity
1.99 yd³
Weight
2253 lb
General Duty Bucket 1350 mm (53 in): 550-9724
Width
53 in
Capacity
2.01 yd³
Weight
2145 lb
General Duty Bucket 1350 mm (53 in): 554-3114
Width
53 in
Capacity
1.57 yd³
Weight
718 lb
General Duty Bucket 1350 mm (54 in): 346-0930
Width
54 in
Capacity
2.02 yd³
Weight
2150 lb
General Duty Bucket 1350 mm (54 in): 528-2162
Width
60 in
Capacity
2.75 yd³
Weight
4019 lb
General Duty Bucket 1350 mm (54 in): 540-4117
Width
54 in
Capacity
2.62 yd³
Weight
2842 lb
General Duty Bucket 1350 mm (54 in): 550-9713
Width
54 in
Capacity
2.02 yd³
Weight
2158 lb
General Duty Bucket 1350 mm (54 in): 550-9720
Width
54 in
Capacity
2.01 yd³
Weight
2476 lb
General Duty Bucket 1350 mm (54 in): 550-9766
Width
54 in
Capacity
2.01 yd³
Weight
2028 lb
General Duty Bucket 1350 mm (54 in): 550-9780
Width
54 in
Capacity
2.02 yd³
Weight
2152 lb
General Duty Bucket 1350 mm (54 in): 552-8211
Width
54 in
Capacity
2.08 yd³
Weight
2104 lb
General Duty Bucket 1350 mm (54 in): 552-8271
Width
54 in
Capacity
2.4 yd³
Weight
2511 lb
General Duty Bucket 1400 mm (55 in): 370-5824
Width
55 in
Capacity
2.02 yd³
Weight
2568 lb
General Duty Bucket 1400 mm (55 in): 388-9591
Width
55 in
Capacity
1.54 yd³
Weight
1609 lb
General Duty Bucket 1400 mm (55 in): 422-6978
Width
55 in
Capacity
1.87 yd³
Weight
1781 lb
General Duty Bucket 1400 mm (55 in): 540-4081
Width
55 in
Capacity
1.83 yd³
Weight
2650 lb
General Duty Bucket 1400 mm (55 in): 550-9382
Width
55 in
Capacity
1.43 yd³
Weight
1482 lb
General Duty Bucket 1400 mm (55 in): 550-9448
Width
55 in
Capacity
1.87 yd³
Weight
1861 lb
General Duty Bucket 1450 mm (57 in): 519-5304
Width
57 in
Capacity
3.77 yd³
Weight
6834 lb
General Duty Bucket 1500 mm (57 in): 540-4082
Width
57 in
Capacity
1.96 yd³
Weight
2732 lb
General Duty Bucket 1500 mm (59 in): 346-0919
Width
59 in
Capacity
2.3 yd³
Weight
2295 lb
General Duty Bucket 1500 mm (59 in): 541-1738
Width
59 in
Capacity
2.46 yd³
Weight
2641 lb
General Duty Bucket 1500 mm (59 in): 550-9714
Width
59 in
Capacity
2.3 yd³
Weight
2299 lb
General Duty Bucket 1500 mm (59 in): 551-3636
Width
59 in
Capacity
2.48 yd³
Weight
4248 lb
General Duty Bucket 1500 mm (59 in): 561-0625
Width
59 in
Capacity
2.46 yd³
Weight
2707 lb
General Duty Bucket 1500 mm (60 in): 346-0931
Width
60 in
Capacity
2.30 yd³
Weight
2291 lb
General Duty Bucket 1500 mm (60 in): 528-2163
Width
60 in
Capacity
3.13 yd³
Weight
852 lb
General Duty Bucket 1500 mm (60 in): 538-9467
Width
60 in
Capacity
2.98 yd³
Weight
3062 lb
General Duty Bucket 1500 mm (60 in): 540-4079
Width
60 in
Capacity
2.44 yd³
Weight
699 lb
General Duty Bucket 1500 mm (60 in): 550-9721
Width
60 in
Capacity
2.3 yd³
Weight
2617 lb
General Duty Bucket 1500 mm (60 in): 550-9725
Width
60 in
Capacity
2.3 yd³
Weight
2286 lb
General Duty Bucket 1500 mm (60 in): 550-9762
Width
60 in
Capacity
2.3 yd³
Weight
2280 lb
General Duty Bucket 1500 mm (60 in): 550-9781
Width
60 in
Capacity
2.30 yd³
Weight
2295 lb
General Duty Bucket 1550 mm (61 in): 540-4083
Width
61 in
Capacity
2.09 yd³
Weight
2868 lb
General Duty Bucket 1600 mm (63 in): 550-9726
Width
63 in
Capacity
2.43 yd³
Weight
2352 lb
General Duty Bucket 1600 mm (63 in): 551-3637
Width
72 in
Capacity
3.26 yd³
Weight
4352 lb
General Duty Bucket 1650 mm (65 in): 540-4076
Width
65 in
Capacity
2.77 yd³
Weight
978 lb
General Duty Bucket 1650 mm (65 in): 540-4077
Width
71 in
Capacity
3.09 yd³
Weight
3104 lb
General Duty Bucket 1650 mm (65 in): 540-4078
Width
65 in
Capacity
2.77 yd³
Weight
3241 lb
General Duty Bucket 1650 mm (65 in): 540-4108
Width
65 in
Capacity
2.77 yd³
Weight
2873 lb
General Duty Bucket 1650 mm (65 in): 540-4111
Width
65 in
Capacity
2.77 yd³
Weight
2844 lb
General Duty Bucket 1650 mm (65 in): 541-1739
Width
65 in
Capacity
2.77 yd³
Weight
2813 lb
General Duty Bucket 1650 mm (65 in): 541-1741
Width
65 in
Capacity
2.77 yd³
Weight
2815 lb
General Duty Bucket 1650 mm (65 in): 554-3117
Width
94 in
Capacity
1.96 yd³
Weight
2637 lb
General Duty Bucket 1650 mm (66 in): 346-0920
Width
66 in
Capacity
2.58 yd³
Weight
2464 lb
General Duty Bucket 1650 mm (66 in): 540-4120
Width
66 in
Capacity
3.33 yd³
Weight
3252 lb
General Duty Bucket 1700 mm (68 in): 528-2164
Width
68 in
Capacity
3.64 yd³
Weight
4707 lb
General Duty Bucket 1750 mm (69 in): 519-5290
Width
69 in
Capacity
5.14 yd³
Weight
8111 lb
General Duty Bucket 1750 mm (69 in): 519-5305
Width
69 in
Capacity
4.85 yd³
Weight
7785 lb
General Duty Bucket 1800 mm (71 in): 540-4110
Width
71 in
Capacity
3.08 yd³
Weight
3078 lb
General Duty Bucket 1800 mm (71 in): 541-1742
Width
71 in
Capacity
3.09 yd³
Weight
3025 lb
General Duty Bucket 1850 mm (74 in): 528-2165
Width
83 in
Capacity
4.03 yd³
Weight
4978 lb
General Duty Bucket 1850 mm (74 in): 528-2196
Width
74 in
Capacity
4.03 yd³
Weight
4978 lb
General Duty Bucket 1950 mm (77 in): 528-8134
Width
77 in
Capacity
4.49 yd³
Weight
6457 lb
General Duty Bucket 2000 mm (79 in): 518-9353
Width
79 in
Capacity
4.71 yd³
Weight
6404 lb
General Duty Bucket 2000 mm (79 in): 519-5280
Width
79 in
Capacity
5.05 yd³
Weight
7884 lb
General Duty Bucket 2000 mm (79 in): 519-5291
Width
79 in
Capacity
5.98 yd³
Weight
8838 lb
General Duty Bucket 2000 mm (79 in): 519-5299
Width
79 in
Capacity
5.05 yd³
Weight
7732 lb
General Duty Bucket 2050 mm (80 in): 528-2166
Width
80 in
Capacity
5 yd³
Weight
5410 lb
General Duty Bucket 2050 mm (81 in): 519-5292
Width
81 in
Capacity
6.91 yd³
Weight
9378 lb
General Duty Bucket 2050 mm (81 in): 519-5307
Width
81 in
Capacity
5.98 yd³
Weight
8627 lb
General Duty Bucket 2050 mm (81 in): 528-8162
Width
81 in
Capacity
6.02 yd³
Weight
8728 lb
General Duty Bucket 2050 mm (82 in): 519-5281
Width
82 in
Capacity
6.02 yd³
Weight
8415 lb
General Duty Bucket 2150 mm (85 in): 519-5301
Width
85 in
Capacity
6.42 yd³
Weight
8867 lb
General Duty Bucket 2350 mm (93 in): 519-5401
Width
93 in
Capacity
7.43 yd³
Weight
12284 lb
General Duty Bucket 2450 mm (96 in): 519-5402
Width
96 in
Capacity
7.89 yd³
Weight
12685 lb
General Duty Bucket 2600 mm (102 in): 528-8163
Width
36 in
Capacity
8.5 yd³
Weight
13195 lb
General Duty Bucket 2800 mm (110 in): 588-7528
Width
110 in
Capacity
9.15 yd³
Weight
13792 lb
General Duty Bucket 450 mm (18 in): 571-2851
Width
18 in
Capacity
0.27 yd³
Weight
564 lb
General Duty Bucket 450 mm (18 in): 571-2877
Width
18 in
Capacity
0.26 yd³
Weight
637 lb
General Duty Bucket 450 mm (18 in): 571-2895
Width
18 in
Capacity
0.26 yd³
Weight
669 lb
General Duty Bucket 450 mm (18 in): 571-2896
Width
18 in
Capacity
0.26 yd³
Weight
588 lb
General Duty Bucket 500 mm (20 in): 571-2890
Width
20 in
Capacity
0.31 yd³
Weight
685 lb
General Duty Bucket 600 mm (24 in): 388-9586
Width
24 in
Capacity
0.50 yd³
Weight
1010 lb
General Duty Bucket 600 mm (24 in): 462-8166
Width
24 in
Capacity
0.43 yd³
Weight
921 lb
General Duty Bucket 600 mm (24 in): 550-9376
Width
24 in
Capacity
0.46 yd³
Weight
886 lb
General Duty Bucket 600 mm (24 in): 550-9443
Width
24 in
Capacity
0.61 yd³
Weight
1177 lb
General Duty Bucket 600 mm (24 in): 550-9722
Width
24 in
Capacity
0.68 yd³
Weight
1409 lb
General Duty Bucket 600 mm (24 in): 552-8206
Width
24 in
Capacity
0.72 yd³
Weight
1321 lb
General Duty Bucket 600 mm (24 in): 552-8236
Width
24 in
Capacity
0.6 yd³
Weight
1366 lb
General Duty Bucket 600 mm (24 in): 552-8266
Width
24 in
Capacity
0.82 yd³
Weight
1605 lb
General Duty Bucket 600 mm (24 in): 560-9915
Width
24 in
Capacity
0.68 yd³
Weight
1561 lb
General Duty Bucket 600 mm (24 in): 571-2852
Width
24 in
Capacity
0.4 yd³
Weight
670 lb
General Duty Bucket 600 mm (24 in): 571-2859
Width
24 in
Capacity
0.4 yd³
Weight
669 lb
General Duty Bucket 600 mm (24 in): 571-2867
Width
24 in
Capacity
0.4 yd³
Weight
725 lb
General Duty Bucket 600 mm (24 in): 571-2886
Width
24 in
Capacity
0.4 yd³
Weight
753 lb
General Duty Bucket 600 mm (24 in): 571-2891
Width
24 in
Capacity
0.4 yd³
Weight
726 lb
General Duty Bucket 600 mm (24 in): 571-2897
Width
24 in
Capacity
0.4 yd³
Weight
764 lb
General Duty Bucket 600 mm (24 in): 571-2898
Width
24 in
Capacity
0.4 yd³
Weight
683 lb
General Duty Bucket 600 mm (24 in): 571-2922
Width
24 in
Capacity
0.39 yd³
Weight
882 lb
General Duty Bucket 750 mm (30 in): 346-0929
Width
30 in
Capacity
0.93 yd³
Weight
1481 lb
General Duty Bucket 750 mm (30 in): 540-4113
Width
30 in
Capacity
1.23 yd³
Weight
2039 lb
General Duty Bucket 750 mm (30 in): 550-9211
Width
30 in
Capacity
0.54 yd³
Weight
988 lb
General Duty Bucket 750 mm (30 in): 550-9444
Width
30 in
Capacity
0.84 yd³
Weight
1334 lb
General Duty Bucket 750 mm (30 in): 550-9469
Width
30 in
Capacity
0.84 yd³
Weight
1323 lb
General Duty Bucket 750 mm (30 in): 550-9668
Width
30 in
Capacity
0.84 yd³
Weight
1259 lb
General Duty Bucket 750 mm (30 in): 550-9710
Width
30 in
Capacity
0.93 yd³
Weight
1556 lb
General Duty Bucket 750 mm (30 in): 550-9763
Width
30 in
Capacity
0.93 yd³
Weight
1354 lb
General Duty Bucket 750 mm (30 in): 550-9779
Width
30 in
Capacity
0.93 yd³
Weight
1482 lb
General Duty Bucket 750 mm (30 in): 552-8207
Width
30 in
Capacity
0.98 yd³
Weight
1519 lb
General Duty Bucket 750 mm (30 in): 552-8267
Width
30 in
Capacity
1.12 yd³
Weight
1764 lb
General Duty Bucket 750 mm (30 in): 571-2853
Width
30 in
Capacity
0.54 yd³
Weight
769 lb
General Duty Bucket 750 mm (30 in): 571-2880
Width
30 in
Capacity
0.54 yd³
Weight
794 lb
General Duty Bucket 750 mm (30 in): 571-2899
Width
30 in
Capacity
0.54 yd³
Weight
872 lb
General Duty Bucket 750 mm (30 in): 571-2905
Width
30 in
Capacity
0.54 yd³
Weight
754 lb
General Duty Bucket 780 mm (31 in): 250-6385
Width
36 in
Capacity
1.24 yd³
Weight
869 lb
General Duty Bucket 800 mm (30 in): 528-2158
Width
30 in
Capacity
1.24 yd³
Weight
2809 lb
General Duty Bucket 800 mm (32 in): 432-8967
Width
32 in
Capacity
0.59 yd³
Weight
868 lb
General Duty Bucket 800 mm (32 in): 571-2887
Width
32 in
Capacity
0.59 yd³
Weight
881 lb
General Duty Bucket 875 mm (34 in): 250-6388
Width
34 in
Capacity
0.68 yd³
Weight
915 lb
General Duty Bucket 900 mm (35 in): 432-8418
Width
35 in
Capacity
0.68 yd³
Weight
925 lb
General Duty Bucket 900 mm (35 in): 550-9633
Width
35 in
Capacity
1.06 yd³
Weight
1402 lb
General Duty Bucket 900 mm (36 in): 438-9799
Width
36 in
Capacity
0.69 yd³
Weight
905 lb
General Duty Bucket 900 mm (36 in): 484-0191
Width
36 in
Capacity
0.69 yd³
Weight
942 lb
General Duty Bucket 900 mm (36 in): 518-1023
Width
36 in
Capacity
0.69 yd³
Weight
1066 lb
General Duty Bucket 900 mm (36 in): 528-2159
Width
36 in
Capacity
1.6 yd³
Weight
3067 lb
General Duty Bucket 900 mm (36 in): 540-4114
Width
36 in
Capacity
1.56 yd³
Weight
2213 lb
General Duty Bucket 900 mm (36 in): 550-9212
Width
36 in
Capacity
0.69 yd³
Weight
1085 lb
General Duty Bucket 900 mm (36 in): 550-9214
Width
36 in
Capacity
0.69 yd³
Weight
939 lb
General Duty Bucket 900 mm (36 in): 550-9378
Width
36 in
Capacity
0.81 yd³
Weight
1116 lb
General Duty Bucket 900 mm (36 in): 550-9669
Width
36 in
Capacity
1.06 ft³
Weight
1396 lb
General Duty Bucket 900 mm (36 in): 552-8208
Width
36 in
Capacity
1.24 yd³
Weight
1671 lb
General Duty Bucket 900 mm (36 in): 552-8268
Width
36 in
Capacity
1.43 yd³
Weight
1980 lb
General Duty Bucket 900 mm (36 in): 558-7936
Width
36 in
Capacity
1.24 yd³
Weight
1840 lb
General Duty Bucket 900 mm (36 in): 571-2854
Width
36 in
Capacity
0.69 yd³
Weight
882 lb
General Duty Bucket 900 mm (36 in): 571-2857
Width
36 in
Capacity
0.69 yd³
Weight
950 lb
General Duty Bucket 900 mm (36 in): 571-2858
Width
36 in
Capacity
0.69 yd³
Weight
914 lb
General Duty Bucket 900 mm (36 in): 571-2860
Width
36 in
Capacity
0.69 yd³
Weight
869 lb
General Duty Bucket 900 mm (36 in): 571-2868
Width
36 in
Capacity
0.69 yd³
Weight
895 lb
General Duty Bucket 900 mm (36 in): 571-2881
Width
36 in
Capacity
0.69 yd³
Weight
895 lb
General Duty Bucket 900 mm (36 in): 571-2900
Width
36 in
Capacity
0.69 yd³
Weight
980 lb
General Duty Bucket 900 mm (36 in): 571-2906
Width
36 in
Capacity
0.69 yd³
Weight
853 lb
General Duty Bucket 900 mm (36 in): 571-2923
Width
36 in
Capacity
0.68 yd³
Weight
882 lb
General Duty Bucket 900 mm (36 in): 571-2945
Width
36 in
Capacity
0.69 yd³
Weight
972 lb
General Duty Bucket 950 mm (37 in): 432-8968
Width
37 in
Capacity
0.75 yd³
Weight
965 lb
General Duty Bucket 950 mm (37 in): 571-2888
Width
37 in
Capacity
0.75 yd³
Weight
977 lb
General Duty Wide Tip Bucket 1050 mm (42 in): 396-4833
Width
42 in
Capacity
1.13 yd³
Weight
1096 lb
General Duty Wide Tip Bucket 1050 mm (42 in): 552-8281
Width
42 in
Capacity
1.75 yd³
Weight
2251 lb
General Duty Wide Tip Bucket 1200 mm (48 in): 396-4834
Width
48 in
Capacity
1.33 yd³
Weight
1202 lb
General Duty Wide Tip Bucket 1200 mm (48 in): 552-8282
Width
48 in
Capacity
2.07 yd³
Weight
2467 lb
General Duty Wide Tip Bucket 1350 mm (54 in): 552-8283
Width
54 in
Capacity
2.4 yd³
Weight
2672 lb
General Duty Wide Tip Bucket 450 mm (18 in): 396-4830
Width
18 in
Capacity
0.36 yd³
Weight
664 lb
General Duty Wide Tip Bucket 600 mm (24 in): 396-4831
Width
24 in
Capacity
0.53 yd³
Weight
776 lb
General Duty Wide Tip Bucket 600 mm (24 in): 552-8278
Width
24 in
Capacity
0.83 yd³
Weight
1670 lb
General Duty Wide Tip Bucket 750 mm (30 in): 552-8279
Width
30 in
Capacity
1.13 yd³
Weight
1863 lb
General Duty Wide Tip Bucket 900 mm (36 in): 396-4832
Width
36 in
Capacity
0.92 yd³
Weight
990 lb
General Duty Wide Tip Bucket 900 mm (36 in): 552-8280
Width
36 in
Capacity
1.43 yd³
Weight
2103 lb
Grading Bucket 1500 mm (59 in): 512-8396
Width
59.1 in
Capacity
1.4 yd³
Weight
1543 lb
Grading Bucket 1600 mm (63 in): 512-8410
Width
63 in
Capacity
0.99 yd³
Weight
1258.6 lb
GSH420 4-Tine, 500-Liter Orange Peel Grapple
Capacity
0.65 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open
GSH420 4-Tine, 600-Liter Orange Peel Grapple
Capacity
0.75 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open
GSH420 4-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open
GSH425 4-Tine, 1150-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH425 4-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH425 4-Tine, 950-Liter Orange Peel Grapple
Capacity
1.25 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH440 4-Tine, 1150-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH440 4-Tine, 1550-Liter Orange Peel Grapple
Capacity
2.00 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH455 4-Tine, 1000-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
33069 lb
Shell Type Options
Semi-open
GSH455 4-Tine, 1500-Liter Orange Peel Grapple
Capacity
2.00 yd³
Maximum Lift Capacity
33069 lb
Shell Type Options
Semi-open
GSH455 4-Tine, 2000-Liter Orange Peel Grapple
Capacity
2.50 yd³
Maximum Lift Capacity
33069 lb
Shell Type Options
Semi-open
GSH520 5-Tine, 500-Liter Orange Peel Grapple
Capacity
0.65 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSH520 5-Tine, 600-Liter Orange Peel Grapple
Capacity
0.75 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSH520 5-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSH525 5-Tine, 1150-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open
GSH525 5-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
GSH525 5-Tine, 950-Liter Orange Peel Grapple
Capacity
1.25 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
GSH555 5-Tine, 1000-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
33069 lb
Shell Type Options
Semi-open
GSH555 5-Tine, 1500-Liter Orange Peel Grapple
Capacity
2.00 yd³
Maximum Lift Capacity
33069 lb
Shell Type Options
Semi-open
GSM50 5-Tine, 1250-Liter Orange Peel Grapple
Capacity
1.63 yd³
Maximum Lift Capacity
44092 lb
Shell Type Options
Open, Semi-open, Closed
GSM50 5-Tine, 1500-Liter Orange Peel Grapple
Capacity
2.00 yd³
Maximum Lift Capacity
44092 lb
Shell Type Options
Open, Semi-open, Closed
GSM50 5-Tine, 2000-Liter Orange Peel Grapple
Capacity
2.50 yd³
Maximum Lift Capacity
44092 lb
Shell Type Options
Open, Semi-open, Closed
GSM60 5-Tine, 3750-Liter Orange Peel Grapple
Capacity
4.90 yd³
Maximum Lift Capacity
44092 lb
Shell Type Options
Open, Semi-open
GSV520 5-Tine, 400-Liter Orange Peel Grapple
Capacity
0.50 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSV520 5-Tine, 500-Liter Orange Peel Grapple
Capacity
0.65 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSV520 5-Tine, 600-Liter Orange Peel Grapple
Capacity
0.75 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSV520 5-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
17637 lb
Shell Type Options
Semi-open, Closed
GSV520 GC 5-Tine, 500-Liter Orange Peel Grapple
Capacity
0.65 yd³
Maximum Lift Capacity
11023 lb
Shell Type Options
Semi-open, Closed
GSV520 GC 5-Tine, 600-Liter Orange Peel Grapple
Capacity
0.75 yd³
Maximum Lift Capacity
11023 lb
Shell Type Options
Semi-open, Closed
GSV520 GC 5-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
11023 lb
Shell Type Options
Semi-open, Closed
GSV525 5-Tine, 1150-Liter Orange Peel Grapple
Capacity
1.50 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
GSV525 5-Tine, 600-Liter Orange Peel Grapple
Capacity
0.75 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
GSV525 5-Tine, 750-Liter Orange Peel Grapple
Capacity
1.00 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
GSV525 5-Tine, 950-Liter Orange Peel Grapple
Capacity
1.25 yd³
Maximum Lift Capacity
22046 lb
Shell Type Options
Semi-open, Closed
H110 S
Impact Energy Class
2000 ft·lbf
Blows per Minute
450-1000
Minimum Operating Weight
2095 lb
H115 S
Impact Energy Class
3000 ft·lbf
Blows per Minute
370-800
Minimum Operating Weight
2359 lb
H120 GC
Impact Energy Class
2950 ft-lb
Blows per Minute
400-800
Maximum Operating Weight
4105.2 lb
H120 GC S
Impact Energy Class
2950 ft-lb
Blows per Minute
400-800
Maximum Operating Weight
3927 lb
H120 GC, side mount
Impact Energy Class
2950 ft-lb
Maximum Operating Weight
3779.6 lb
Minimum Operating Weight
3780 lb
H120 S
Impact Energy Class
3500 ft·lbf
Blows per Minute
350-620
Maximum Operating Weight
4101 lb
H130 GC S
Impact Energy Class
4425 ft-lb
Blows per Minute
350-700
Maximum Operating Weight
5471.4 lb
H130 GC, side mount
Impact Energy Class
4425 ft-lb
Blows per Minute
350-700
Maximum Operating Weight
4851 lb
H130 S
Impact Energy Class
4500 ft·lbf
Blows per Minute
320-600
Minimum Operating Pressure
2031 psi
H140 GC
Impact Energy Class
5531 ft-lb
Blows per Minute
250-550
Maximum Operating Weight
6762.8 lb
H140 S
Impact Energy Class
6000 ft·lbf
Blows per Minute
325-540
Minimum Operating Pressure
2176 psi
H140E S Wear Package
Impact Energy Class
6000 ft·lbf
Blows per Minute
325-540
Maximum Operating Pressure
2321 psi
H160 S
Impact Energy Class
8500 ft·lbf
Blows per Minute
400-505
Minimum Operating Pressure
2176 psi
H160E S Wear Package
Impact Energy Class
8500 ft·lbf
Blows per Minute
400-505
Minimum Operating Pressure
2176 psi
H180 S
Impact Energy Class
12000 ft·lbf
Blows per Minute
275-450
Minimum Operating Pressure
2176 psi
H180E S Wear Package
Impact Energy Class
12000 ft·lbf
Blows per Minute
275-450
Maximum Operating Pressure
2321 psi
Heavy Duty Bucket 1050 mm (42 in): 528-2174
Width
42 in
Capacity
1.75 yd³
Weight
3600 lb
Heavy Duty Bucket 1050 mm (42 in): 528-4571
Width
42 in
Capacity
1.53 yd³
Weight
3025 lb
Heavy Duty Bucket 1050 mm (42 in): 528-4601
Width
42 in
Capacity
1.54 yd³
Weight
2679 lb
Heavy Duty Bucket 1050 mm (42 in): 528-4634
Width
42 in
Capacity
1.41 yd³
Weight
2769 lb
Heavy Duty Bucket 1050 mm (42 in): 541-1747
Width
42 in
Capacity
1.46 yd³
Weight
2156 lb
Heavy Duty Bucket 1050 mm (42 in): 550-9545
Width
42 in
Capacity
1.3 yd³
Weight
1806 lb
Heavy Duty Bucket 1050 mm (42 in): 550-9566
Width
42 in
Capacity
1.22 yd³
Weight
1973 lb
Heavy Duty Bucket 1050 mm (42 in): 550-9585
Width
42 in
Capacity
1.31 yd³
Weight
1823 lb
Heavy Duty Bucket 1050 mm (42 in): 550-9612
Width
42 in
Capacity
1.18 yd³
Weight
1742 lb
Heavy Duty Bucket 1050 mm (42 in): 558-7939
Width
42 in
Capacity
1.31 yd³
Weight
2085 lb
Heavy Duty Bucket 1050 mm (42 in): 571-2925
Width
42 in
Capacity
0.82 yd³
Weight
882 lb
Heavy Duty Bucket 1050 mm (42 in): 573-5003
Width
42 in
Capacity
1.09 yd³
Weight
1435 lb
Heavy Duty Bucket 1200 mm (47 in): 541-1748
Width
47 in
Capacity
1.74 yd³
Weight
2313 lb
Heavy Duty Bucket 1200 mm (47 in): 571-2920
Width
47 in
Capacity
0.99 yd³
Weight
882 lb
Heavy Duty Bucket 1200 mm (48 in): 528-2175
Width
48 in
Capacity
2.09 yd³
Weight
3929 lb
Heavy Duty Bucket 1200 mm (48 in): 528-2185
Width
48 in
Capacity
1.95 yd³
Weight
4112 lb
Heavy Duty Bucket 1200 mm (48 in): 528-4572
Width
63 in
Capacity
1.83 yd³
Weight
3320 lb
Heavy Duty Bucket 1200 mm (48 in): 528-4602
Width
48 in
Capacity
1.83 yd³
Weight
2939 lb
Heavy Duty Bucket 1200 mm (48 in): 528-4635
Width
48 in
Capacity
1.69 yd³
Weight
3025 lb
Heavy Duty Bucket 1200 mm (48 in): 541-1764
Width
48 in
Capacity
1.67 yd³
Weight
2487 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9417
Width
48 in
Capacity
1.18 yd³
Weight
1385 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9541
Width
48 in
Capacity
1.56 yd³
Weight
2040 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9543
Width
48 in
Capacity
1.56 yd³
Weight
1942 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9546
Width
48 in
Capacity
1.56 yd³
Weight
1967 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9567
Width
48 in
Capacity
1.45 yd³
Weight
2153 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9586
Width
48 in
Capacity
1.56 yd³
Weight
1984 lb
Heavy Duty Bucket 1200 mm (48 in): 550-9659
Capacity
1.56 yd³
Weight
1874 lb
Interface
For use with CW-40 Dedicated Coupler
Heavy Duty Bucket 1200 mm (48 in): 550-9680
Width
48 in
Capacity
1.56 yd³
Weight
1867 lb
Heavy Duty Bucket 1200 mm (48 in): 554-3119
Width
48 in
Capacity
1.74 yd³
Weight
2639 lb
Heavy Duty Bucket 1200 mm (48 in): 557-3460
Width
48 in
Capacity
1.2 yd³
Weight
1675 lb
Heavy Duty Bucket 1200 mm (48 in): 571-2926
Width
48 in
Capacity
1 yd³
Weight
1160 lb
Heavy Duty Bucket 1200 mm (48 in): 571-2927
Width
48 in
Capacity
1 yd³
Weight
1105 lb
Heavy Duty Bucket 1200 mm (48 in): 571-2928
Width
48 in
Capacity
1 yd³
Weight
1155 lb
Heavy Duty Bucket 1200 mm (48 in): 573-5009
Width
48 in
Capacity
1.29 yd³
Weight
1567 lb
Heavy Duty Bucket 1200 mm (48 in): 573-5012
Width
48 in
Capacity
1.19 yd³
Weight
1384 lb
Heavy Duty Bucket 1250 mm (49 in): 540-4097
Width
61 in
Capacity
2.46 yd³
Weight
3682 lb
Heavy Duty Bucket 1250 mm (49 in): 541-1757
Width
49 in
Capacity
1.74 yd³
Weight
2414 lb
Heavy Duty Bucket 1300 mm (51 in): 550-9418
Width
51 in
Capacity
1.31 yd³
Weight
1455 lb
Heavy Duty Bucket 1300 mm (51 in): 554-3112
Width
51 in
Capacity
1.44 yd³
Weight
2507 lb
Heavy Duty Bucket 1300 mm (52 in): 519-5282
Width
54 in
Capacity
2.88 yd³
Weight
6197 lb
Heavy Duty Bucket 1300 mm (53 in): 540-4094
Width
54 in
Capacity
1.9 yd³
Weight
4850 lb
Heavy Duty Bucket 1300 mm (852 in): 550-9544
Width
852 in
Capacity
1.7 yd³
Weight
2048 lb
Heavy Duty Bucket 1350 mm (54 in): 528-2176
Width
54 in
Capacity
2.44 yd³
Weight
4209 lb
Heavy Duty Bucket 1350 mm (54 in): 528-2186
Width
54 in
Capacity
2.28 yd³
Weight
4409 lb
Heavy Duty Bucket 1350 mm (54 in): 528-4573
Width
63 in
Capacity
2.6 yd³
Weight
5060 lb
Heavy Duty Bucket 1350 mm (54 in): 528-4603
Width
54 in
Capacity
2.14 yd³
Weight
3073 lb
Heavy Duty Bucket 1350 mm (54 in): 528-4604
Width
54 in
Capacity
2.14 yd³
Weight
3150 lb
Heavy Duty Bucket 1350 mm (54 in): 528-4619
Width
54 in
Capacity
2.14 yd³
Weight
3093 lb
Heavy Duty Bucket 1350 mm (54 in): 528-4636
Width
54 in
Capacity
1.96 yd³
Weight
3250 lb
Heavy Duty Bucket 1350 mm (54 in): 528-8128
Width
54 in
Capacity
2.44 yd³
Weight
4209 lb
Heavy Duty Bucket 1350 mm (54 in): 541-1749
Width
54 in
Capacity
2.01 yd³
Weight
2416 lb
Heavy Duty Bucket 1350 mm (54 in): 541-1750
Width
54 in
Capacity
2.01 yd³
Weight
2504 lb
Heavy Duty Bucket 1350 mm (54 in): 541-1765
Width
54 in
Capacity
1.95 yd³
Weight
2696 lb
Heavy Duty Bucket 1350 mm (54 in): 541-1778
Width
54 in
Capacity
2.02 yd³
Weight
2288 lb
Heavy Duty Bucket 1350 mm (54 in): 541-1782
Width
54 in
Capacity
2.02 yd³
Weight
2418 lb
Heavy Duty Bucket 1350 mm (54 in): 550-9547
Width
54 in
Capacity
1.83 yd³
Weight
2161 lb
Heavy Duty Bucket 1350 mm (54 in): 550-9568
Width
54 in
Capacity
1.67 yd³
Weight
2335 lb
Heavy Duty Bucket 1350 mm (54 in): 552-8241
Width
54 in
Capacity
1.81 yd³
Weight
2197 lb
Heavy Duty Bucket 1350 mm (54 in): 554-3120
Width
54 in
Capacity
2.1 yd³
Weight
3400 lb
Heavy Duty Bucket 1350 mm (54 in): 554-3131
Width
54 in
Capacity
2.02 yd³
Weight
2469 lb
Heavy Duty Bucket 1350 mm (55 in): 528-4565
Width
55 in
Capacity
2.14 yd³
Weight
3466 lb
Heavy Duty Bucket 1350 mm (55 in): 540-4098
Width
55 in
Capacity
2.02 yd³
Weight
2892 lb
Heavy Duty Bucket 1350 mm (55 in): 541-1758
Width
55 in
Capacity
2.02 yd³
Weight
2617 lb
Heavy Duty Bucket 1450 mm (57 in): 528-4577
Width
57 in
Capacity
1.83 yd³
Weight
3342 lb
Heavy Duty Bucket 1450 mm (57 in): 528-4581
Width
57 in
Capacity
1.83 yd³
Weight
3232 lb
Heavy Duty Bucket 1450 mm (57 in): 540-4095
Width
57 in
Capacity
2.05 yd³
Weight
2930 lb
Heavy Duty Bucket 1450 mm (57 in): 554-3115
Width
57 in
Capacity
1.7 yd³
Weight
2727 lb
Heavy Duty Bucket 1450 mm (58 in): 563-2888
Width
58 in
Capacity
2.3 yd³
Weight
3569 lb
Heavy Duty Bucket 1450 mm (58 in): 566-2007
Width
58 in
Capacity
2.09 yd³
Weight
2917 lb
Heavy Duty Bucket 1500 mm (59 in): 528-4574
Width
68 in
Capacity
3.64 yd³
Weight
4707 lb
Heavy Duty Bucket 1500 mm (59 in): 528-4580
Width
59 in
Capacity
1.96 yd³
Weight
3455 lb
Heavy Duty Bucket 1500 mm (59 in): 528-4620
Width
59 in
Capacity
2.46 yd³
Weight
3353 lb
Heavy Duty Bucket 1500 mm (60 in): 528-2177
Width
60 in
Capacity
2.8 yd³
Weight
4539 lb
Heavy Duty Bucket 1500 mm (60 in): 528-2187
Width
60 in
Capacity
2.59 yd³
Weight
4758 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4561
Width
60 in
Capacity
2.46 yd³
Weight
721 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4590
Width
60 in
Capacity
2.46 yd³
Weight
3452 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4605
Width
60 in
Capacity
2.46 yd³
Weight
3285 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4606
Width
60 in
Capacity
2.46 yd³
Weight
3408 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4637
Width
60 in
Capacity
2.25 yd³
Weight
3521 lb
Heavy Duty Bucket 1500 mm (60 in): 528-4669
Width
60 in
Capacity
2.46 yd³
Weight
3221 lb
Heavy Duty Bucket 1500 mm (60 in): 540-4092
Width
60 in
Capacity
2.3 yd³
Weight
2745 lb
Heavy Duty Bucket 1500 mm (60 in): 540-4103
Width
60 in
Capacity
2.3 yd³
Weight
2745 lb
Heavy Duty Bucket 1500 mm (60 in): 540-4104
Width
60 in
Capacity
2.3 yd³
Weight
2743 lb
Heavy Duty Bucket 1500 mm (60 in): 541-1751
Width
60 in
Capacity
2.3 yd³
Weight
2606 lb
Heavy Duty Bucket 1500 mm (60 in): 541-1752
Width
60 in
Capacity
2.3 yd³
Weight
2683 lb
Heavy Duty Bucket 1500 mm (60 in): 541-1766
Width
60 in
Capacity
2.21 yd³
Weight
2903 lb
Heavy Duty Bucket 1500 mm (60 in): 541-1783
Width
60 in
Capacity
2.3 yd³
Weight
2606 lb
Heavy Duty Bucket 1500 mm (60 in): 550-9588
Width
60 in
Capacity
2.06 yd³
Weight
2278 lb
Heavy Duty Bucket 1500 mm (60 in): 559-4167
Width
60 in
Capacity
2.3 yd³
Weight
3078 lb
Heavy Duty Bucket 1500 mm (60 in): 559-4169
Width
60 in
Capacity
2.3 yd³
Weight
2661 lb
Heavy Duty Bucket 1500 mm (61 in): 528-4566
Width
61 in
Capacity
2.46 yd³
Weight
3682 lb
Heavy Duty Bucket 1500 mm (61 in): 528-4568
Width
61 in
Capacity
2.46 yd³
Weight
3708 lb
Heavy Duty Bucket 1550 mm (60 in): 528-4595
Width
60 in
Capacity
2.3 yd³
Weight
3175 lb
Heavy Duty Bucket 1550 mm (61 in): 518-9356
Width
61 in
Capacity
2.48 yd³
Weight
5172 lb
Heavy Duty Bucket 1600 mm (63 in): 564-6509
Width
63 in
Capacity
2.35 yd³
Weight
2834 lb
Heavy Duty Bucket 1650 mm (65 in): 518-9320
Width
65 in
Capacity
3.62 yd³
Weight
5494 lb
Heavy Duty Bucket 1650 mm (65 in): 518-9321
Width
65 in
Capacity
3.62 yd³
Weight
5309 lb
Heavy Duty Bucket 1650 mm (65 in): 518-9342
Width
65 in
Capacity
3.15 yd³
Weight
5018 lb
Heavy Duty Bucket 1650 mm (65 in): 518-9358
Width
65 in
Capacity
3.15 yd³
Weight
5518 lb
Heavy Duty Bucket 1650 mm (65 in): 519-2233
Width
65 in
Capacity
3.15 yd³
Weight
5485 lb
Heavy Duty Bucket 1650 mm (65 in): 528-4591
Width
65 in
Capacity
2.77 yd³
Weight
4766 lb
Heavy Duty Bucket 1650 mm (66 in): 528-2188
Width
73 in
Capacity
4.2 yd³
Weight
5717 lb
Heavy Duty Bucket 1650 mm (66 in): 528-2204
Width
66 in
Capacity
3.15 yd³
Weight
982 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4550
Width
66 in
Capacity
3.15 yd³
Weight
4740 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4551
Width
66 in
Capacity
3.15 yd³
Weight
4870 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4554
Width
66 in
Capacity
3.15 yd³
Weight
5481 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4564
Width
66 in
Capacity
2.77 yd³
Weight
3726 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4575
Width
66 in
Capacity
2.77 yd³
Weight
4127 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4594
Width
82 in
Capacity
6.02 yd³
Weight
8415 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4607
Width
66 in
Capacity
2.77 yd³
Weight
3543 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4608
Width
66 in
Capacity
2.77 yd³
Weight
3668 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4621
Width
66 in
Capacity
2.77 yd³
Weight
3613 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4638
Width
66 in
Capacity
2.52 yd³
Weight
3794 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4662
Width
66 in
Capacity
3.15 yd³
Weight
4519 lb
Heavy Duty Bucket 1650 mm (66 in): 528-4664
Width
66 in
Capacity
3.15 yd³
Weight
4524 lb
Heavy Duty Bucket 1650 mm (66 in): 541-1779
Width
66 in
Capacity
2.58 yd³
Weight
2635 lb
Heavy Duty Bucket 1650 mm (66 in): 541-1784
Width
66 in
Capacity
2.58 yd³
Weight
2767 lb
Heavy Duty Bucket 1650 mm (66 in): 550-2251
Width
66 in
Capacity
2.58 yd³
Weight
2853 lb
Heavy Duty Bucket 1650 mm (66 in): 554-3118
Width
66 in
Capacity
2.58 yd³
Weight
2901 lb
Heavy Duty Bucket 1650 mm (66 in): 561-0626
Width
66 in
Capacity
2.58 yd³
Weight
2765 lb
Heavy Duty Bucket 1650 mm (67 in): 528-4567
Width
67 in
Capacity
2.77 yd³
Weight
3898 lb
Heavy Duty Bucket 1650 mm (67 in): 528-4569
Width
67 in
Capacity
2.98 yd³
Weight
693 lb
Heavy Duty Bucket 1650 mm (67 in): 566-6626
Width
67 in
Capacity
2.48 yd³
Weight
791 lb
Heavy Duty Bucket 1700 mm (67 in): 518-9357
Width
67 in
Capacity
2.75 yd³
Weight
5481 lb
Heavy Duty Bucket 1750 mm (69 in): 566-6627
Width
69 in
Capacity
2.61 yd³
Weight
3080 lb
Heavy Duty Bucket 1750 mm (69 in): 567-1134
Width
69 in
Capacity
2.61 yd³
Weight
2941 lb
Heavy Duty Bucket 1750 mm (69 in): 577-0344
Width
69 in
Capacity
3.27 yd³
Weight
5218 lb
Heavy Duty Bucket 1750 mm (70 in): 519-5283
Width
70 in
Capacity
4.32 yd³
Weight
7533 lb
Heavy Duty Bucket 1800 mm (71 in): 528-8164
Width
71 in
Capacity
5.36 yd³
Weight
10481 lb
Heavy Duty Bucket 1800 mm (72 in): 528-4552
Width
72 in
Capacity
3.52 yd³
Weight
5157 lb
Heavy Duty Bucket 1800 mm (73 in): 559-4170
Width
73 in
Capacity
3.09 yd³
Weight
4074 lb
Heavy Duty Bucket 1850 mm (72 in): 528-2195
Width
72 in
Capacity
3.52 yd³
Weight
5024 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4555
Width
72 in
Capacity
3.62 yd³
Weight
5765 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4576
Width
72 in
Capacity
3.09 yd³
Weight
4341 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4609
Width
72 in
Capacity
3.08 yd³
Weight
3882 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4610
Width
72 in
Capacity
3.08 yd³
Weight
3757 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4622
Width
72 in
Capacity
3.09 yd³
Weight
3827 lb
Heavy Duty Bucket 1850 mm (72 in): 528-4660
Width
72 in
Capacity
3.52 yd³
Weight
5108 lb
Heavy Duty Bucket 1850 mm (72 in): 530-2763
Width
72 in
Capacity
3.52 yd³
Weight
5082 lb
Heavy Duty Bucket 1850 mm (72 in): 566-6632
Width
87 in
Capacity
3.52 yd³
Weight
5293 lb
Heavy Duty Bucket 1850 mm (73 in): 518-9322
Width
73 in
Capacity
4.2 yd³
Weight
5902 lb
Heavy Duty Bucket 1850 mm (73 in): 518-9323
Width
73 in
Capacity
4.2 yd³
Weight
5717 lb
Heavy Duty Bucket 1900 mm (74 in): 528-2189
Width
74 in
Capacity
3.35 yd³
Weight
5505 lb
Heavy Duty Bucket 1900 mm (74 in): 528-4548
Width
74 in
Capacity
3.64 yd³
Weight
5381 lb
Heavy Duty Bucket 1900 mm (74 in): 528-4553
Width
74 in
Capacity
3.64 yd³
Weight
5165 lb
Heavy Duty Bucket 1950 mm (77 in): 518-9324
Width
77 in
Capacity
4.49 yd³
Weight
6197 lb
Heavy Duty Bucket 1950 mm (77 in): 528-8132
Width
77 in
Capacity
4.03 yd³
Weight
6219 lb
Heavy Duty Bucket 1950 mm (77 in): 528-8135
Width
77 in
Capacity
4.49 yd³
Weight
6453 lb
Heavy Duty Bucket 1950 mm (77 in): 600-3975
Width
77 in
Capacity
4.58 yd³
Weight
6133 lb
Heavy Duty Bucket 1950 mm (77 in): 604-6612
Width
77 in
Capacity
4.49 yd³
Weight
6122 lb
Heavy Duty Bucket 2000 mm (79 in): 519-5284
Width
79 in
Capacity
4.97 yd³
Weight
8239 lb
Heavy Duty Bucket 2000 mm (79 in): 519-5300
Width
79 in
Capacity
4.97 yd³
Weight
8087 lb
Heavy Duty Bucket 2050 mm (81 in): 528-8161
Width
81 in
Capacity
6.02 yd³
Weight
8898 lb
Heavy Duty Bucket 2150 mm (85 in): 519-5302
Width
85 in
Capacity
6.54 yd³
Weight
9255 lb
Heavy Duty Bucket 2300 mm (91 in): 543-2769
Width
91 in
Capacity
6.93 yd³
Weight
9797 lb
Heavy Duty Bucket 2650 mm (104 in): 592-0655
Width
104 in
Capacity
8.63 yd³
Weight
13916 lb
Heavy Duty Bucket 450 mm (18 in): 571-2919
Width
18 in
Capacity
0.26 yd³
Weight
588 lb
Heavy Duty Bucket 500 mm (20 in): 571-2929
Width
20 in
Capacity
0.31 yd³
Weight
622 lb
Heavy Duty Bucket 600 mm (24 in): 541-1744
Width
24 in
Capacity
0.68 yd³
Weight
1618 lb
Heavy Duty Bucket 600 mm (24 in): 550-9563
Width
24 in
Capacity
0.57 yd³
Weight
1444 lb
Heavy Duty Bucket 600 mm (24 in): 550-9658
Width
24 in
Capacity
0.61 yd³
Weight
1303 lb
Heavy Duty Bucket 600 mm (24 in): 557-3459
Width
24 in
Capacity
0.5 yd³
Weight
1075 lb
Heavy Duty Bucket 600 mm (24 in): 558-7937
Width
24 in
Capacity
0.6 yd³
Weight
1540 lb
Heavy Duty Bucket 750 mm (30 in): 528-4570
Width
61 in
Capacity
2.09 yd³
Weight
2868 lb
Heavy Duty Bucket 750 mm (30 in): 528-4599
Width
30 in
Capacity
0.95 yd³
Weight
2185 lb
Heavy Duty Bucket 750 mm (30 in): 541-1745
Width
30 in
Capacity
0.93 yd³
Weight
1792 lb
Heavy Duty Bucket 750 mm (30 in): 541-1762
Width
30 in
Capacity
0.9 yd³
Weight
1854 lb
Heavy Duty Bucket 750 mm (30 in): 550-9564
Width
30 in
Capacity
0.79 yd³
Weight
1655 lb
Heavy Duty Bucket 750 mm (30 in): 552-8237
Width
30 in
Capacity
0.84 yd³
Weight
1578 lb
Heavy Duty Bucket 800 mm (32 in): 433-1516
Width
32 in
Capacity
0.59 yd³
Weight
966 lb
Heavy Duty Bucket 800 mm (32 in): 550-9217
Width
32 in
Capacity
0.59 yd³
Weight
1003 lb
Heavy Duty Bucket 900 mm (35 in): 433-1517
Width
35 in
Capacity
0.68 yd³
Weight
1027 lb
Heavy Duty Bucket 900 mm (35 in): 487-4261
Width
35 in
Capacity
0.68 yd³
Weight
930 lb
Heavy Duty Bucket 900 mm (35 in): 550-9218
Width
35 in
Capacity
0.68 yd³
Weight
1064 lb
Heavy Duty Bucket 900 mm (35 in): 550-9219
Width
35 in
Capacity
0.68 yd³
Weight
983 lb
Heavy Duty Bucket 900 mm (36 in): 528-2173
Width
36 in
Capacity
1.41 yd³
Weight
3404 lb
Heavy Duty Bucket 900 mm (36 in): 528-4600
Width
36 in
Capacity
1.24 yd³
Weight
2480 lb
Heavy Duty Bucket 900 mm (36 in): 528-4633
Width
36 in
Capacity
1.14 yd³
Weight
2542 lb
Heavy Duty Bucket 900 mm (36 in): 541-1746
Width
36 in
Capacity
1.19 yd³
Weight
1978 lb
Heavy Duty Bucket 900 mm (36 in): 550-9307
Width
36 in
Capacity
0.8 yd³
Weight
1327 lb
Heavy Duty Bucket 900 mm (36 in): 550-9565
Width
36 in
Capacity
1 yd³
Weight
1831 lb
Heavy Duty Bucket 900 mm (36 in): 552-8238
Width
36 in
Capacity
1.06 yd³
Weight
1742 lb
Heavy Duty Bucket 900 mm (36 in): 558-7938
Width
36 in
Capacity
1.06 yd³
Weight
1959 lb
Heavy Duty Bucket 900 mm (36 in): 571-2924
Width
36 in
Capacity
0.68 yd³
Weight
882 lb
Heavy Duty Bucket 900 mm (36 in): 573-5002
Width
36 in
Capacity
0.88 yd³
Weight
1323 lb
Heavy Duty Bucket 950 mm (37 in): 550-9611
Width
37 in
Capacity
1.05 yd³
Weight
1656 lb
Heavy Duty Power Bucket 1050 mm (42 in): 541-1759
Width
42 in
Capacity
1.46 yd³
Weight
2220 lb
Heavy Duty Power Bucket 1050 mm (42 in): 552-8259
Width
42 in
Capacity
1.26 yd³
Weight
1880 lb
Heavy Duty Power Bucket 1200 mm (48 in): 528-4629
Width
48 in
Capacity
1.83 yd³
Weight
2950 lb
Heavy Duty Power Bucket 1200 mm (48 in): 541-1760
Width
48 in
Capacity
1.74 yd³
Weight
2392 lb
Heavy Duty Power Bucket 1200 mm (48 in): 552-8260
Width
48 in
Capacity
1.49 yd³
Weight
2048 lb
Heavy Duty Power Bucket 1350 mm (54 in): 528-4630
Width
54 in
Capacity
2.13 yd³
Weight
3164 lb
Heavy Duty Power Bucket 1350 mm (54 in): 541-1761
Width
54 in
Capacity
2.01 yd³
Weight
2595 lb
Heavy Duty Power Bucket 1500 mm (60 in): 528-4631
Width
60 in
Capacity
2.46 yd³
Weight
3435 lb
Heavy Duty Power Bucket 900 mm (36 in): 528-4628
Width
36 in
Capacity
1.24 yd³
Weight
2467 lb
HM2615 Standard Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
73.0 in
Drive Method
Poly Chain Belt
HM4015 Bite Limiter Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
74 in
Drive Method
Poly Chain Belt
HM4015 Standard Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
74.0 in
Drive Method
Poly Chain Belt
HM4815 Dedicated Bite Limiter Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
77.6 in
Drive Method
Poly Chain Belt
HM5515 Standard Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
78.0 in
Drive Method
Poly Chain Belt
HM6015 Bite Limiter Forestry Mulcher
Motor
Variable Torque Hydraulic Piston Motor
Overall Width
80 in
Drive Method
Poly Chain Belt
Hydraulic Connecting S Type Coupler HCS60: 582-8807
Machine Class
12-19
Weight
386 lb
Height
15.9 in
Hydraulic Connecting S Type Coupler HCS60: 590-2376
Machine Class
12-19
Height
15.4 in
Weight
331 lb
Hydraulic Connecting S Type Coupler HCS60: 590-2377
Machine Class
12-19
Weight
390 lb
Height
16.5 in
Hydraulic Connecting S Type Coupler HCS65: 583-0661
Machine Class
14-20
Height
16.1 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS65: 590-2379
Machine Class
14-20
Weight
465 lb
Height
15.4 in
Hydraulic Connecting S Type Coupler HCS65: 590-2380
Machine Class
14-20
Height
15.2 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS70: 580-0407
Machine Class
14-30
Height
20.6 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS70: 582-8929
Machine Class
14-30
Maximum Operating Pressure
5076 psi
Weight
648 lb
Hydraulic Connecting S Type Coupler HCS70: 598-7847
Machine Class
14-30
Height
20.7 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS70/55: 582-9886
Machine Class
24-30
Height
17.9 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS70/55: 582-9976
Machine Class
24-30
Height
20.1 in
Maximum Operating Pressure
5076 psi
Hydraulic Connecting S Type Coupler HCS70/55: 598-7849
Machine Class
24-30
Weight
789 lb
Height
20.2 in
Hydraulic Connecting S Type Coupler HCS80: 583-0203
Machine Class
24-40
Height
20.2 in
Weight
959 lb
Hydraulic Connecting S Type Coupler HCS80: 583-0212
Machine Class
24-40
Weight
1027 lb
Height
21.2 in
M320 Wheel Excavators
Engine Power – ISO 14396:2002
128.8 kW
Operating Weight Maximum
19500 kg
Maximum Travel Speed
37 km/h
M320D2 Wheel Excavators
Engine Model
Cat C7.1
Net Power
124 kW
Maximum Travel Speed
37 km/h
MP318 Concrete Cutter Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
18 tons
Cycle Time – Close
1 s
MP318 Demolition Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
18 tons
Cycle Time – Close
1 s
MP318 Pulverizer Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
18 tons
Cycle Time – Close
1 s
MP318 Shear Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
18 tons
Cycle Time – Close
1 s
MP318 Universal Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
18 tons
Cycle Time – Close
1.0 s
MP324 Concrete Cutter Jaw
Cycle Time – Open
1.8 s
Excavator Minimum
24 tons
Cycle Time – Close
1.2 s
MP324 Demolition Jaw
Cycle Time – Open
1.8 s
Excavator Minimum
24 tons
Cycle Time – Close
1.2 s
MP324 Pulverizer Jaw
Cycle Time – Open
1.8 s
Excavator Minimum
24 tons
Cycle Time – Close
1.2 s
MP324 Shear Jaw
Cycle Time – Open
1.8 s
Excavator Minimum
24 tons
Cycle Time – Close
1.2 s
MP324 Tank Shear
Cycle Time – Open
1.8 s
Excavator Minimum
24 tons
Cycle Time – Close
1.2 s
MP324 Universal Jaw
Cycle Time – Open
1.6 s
Excavator Minimum
24 tons
Cycle Time – Close
1.0 s
P215
Closing Force – Tip
117.0 Sh Ton
Closing Force – Rebar Cutter
226.0 Sh Ton
Weight
3710.0 lb
P225
Closing Force – Tip
171.0 Sh Ton
Closing Force – Rebar Cutter
326.0 Sh Ton
Weight
5467.0 lb
P235
Closing Force – Tip
187.0 Sh Ton
Closing Force – Rebar Cutter
387.0 Sh Ton
Weight
7542.0 lb
Pin Grabber Coupler – Narrow Profile (DB-Linkage): 388-9724
Minimum Carrier Weight
30 ton (US)
Maximum Carrier Weight
40 ton (US)
Weight
1376 lb
Pin Grabber Coupler – Trenching Profile (CB-Linkage): 389-7526
Minimum Carrier Weight
24 ton (US)
Maximum Carrier Weight
35 ton (US)
Weight
948 lb
Pin Grabber Coupler – Trenching Profile (TB-Linkage): 390-0904
Minimum Carrier Weight
45 ton (US)
Maximum Carrier Weight
52 ton (US)
Weight
2059 lb
Pin Grabber Coupler (B-Linkage): 455-3909
Minimum Carrier Weight
19 ton (US)
Maximum Carrier Weight
23 ton (US)
Weight
838 lb
Pin Grabber Coupler (CB-Linkage): 455-3911
Minimum Carrier Weight
24 ton (US)
Maximum Carrier Weight
35 ton (US)
Weight
1025 lb
Pin Grabber Coupler (CB-Linkage): 486-5368
Minimum Carrier Weight
24 ton (US)
Maximum Carrier Weight
35 ton (US)
Weight
1003 lb
Pin Grabber Coupler (DB-Linkage): 455-3905
Minimum Carrier Weight
30 ton (US)
Maximum Carrier Weight
40 ton (US)
Weight
1369 lb
Pin Grabber Coupler (TB-Linkage): 455-3907
Minimum Carrier Weight
45 ton (US)
Maximum Carrier Weight
52 ton (US)
Weight
2082 lb
Pin Grabber Excavator Coupler – 312-Linkage
Weight
414.0 lb
Width – Machine Interface
15.0 in
Lifting Eye Working Load Limit
11 ton (US)
Pro Plus Thumb 2-tooth 1043 mm (41 in): 533-0892
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
41.1 in
Pro Plus Thumb 2-tooth 1086 mm (43 in): 578-2505
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
42.8 in
Pro Plus Thumb 2-tooth 1138 mm (45 in): 533-0896
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
44.8 in
Pro Plus Thumb 2-tooth 522 mm (21 in): 578-2537
Number of Teeth/Tines
2
Stored Height
25.3 in
Overall Width
20.6 in
Pro Plus Thumb 2-tooth 741 mm (29 in): 578-2498
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Plus Thumb 2-tooth 741 mm (29 in): 578-2499
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Plus Thumb 2-tooth 741 mm (29 in): 578-2502
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Plus Thumb 2-tooth 793 mm (31 in): 533-0894
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
31.2 in
Pro Plus Thumb 2-tooth 843 mm (33 in): 533-0891
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
33.2 in
Pro Plus Thumb 2-tooth 926 mm (36 in): 578-2500
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
36.5 in
Pro Plus Thumb 2-tooth 926 mm (36 in): 578-2504
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
36.5 in
Pro Plus Thumb 2-tooth 957 mm (38 in): 533-0895
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
37.7 in
Pro Plus Thumb 3-tooth 522 mm (21 in): 578-2542
Number of Teeth/Tines
3
Stored Height
25.3 in
Overall Width
20.6 in
Pro Plus Thumb 3-tooth 563 mm (22 in): 578-2533
Number of Teeth/Tines
3
Stored Height
25.8 in
Overall Width
22.2 in
Pro Plus Thumb 3-tooth 591 mm (23 in): 387-9682
Number of Teeth/Tines
3
Stored Height
25.8 in
Overall Width
22.2 in
Pro Plus Thumb 3-tooth 636 mm (25 in): 387-9672
Number of Teeth/Tines
3
Stored Height
28.1 in
Overall Width
25 in
Pro Plus Thumb 3-tooth 741 mm (29 in): 559-5517
Number of Teeth/Tines
3
Stored Height
36.5 in
Overall Width
29.2 in
Pro Plus Thumb 3-tooth 775 mm (31 in): 559-5505
Number of Teeth/Tines
3
Stored Height
32.8 in
Overall Width
30.5 in
Pro Plus Thumb 3-tooth 775 mm (31 in): 578-2491
Number of Teeth/Tines
3
Stored Height
35.2 in
Overall Width
30.5 in
Pro Plus Thumb 3-tooth 793 mm (31 in): 533-0901
Number of Teeth/Tines
3
Stored Height
41.3 in
Overall Width
31.2 in
Pro Plus Thumb 3-tooth 882 mm (35 in): 533-0888
Number of Teeth/Tines
3
Stored Height
33.7 in
Overall Width
34.7 in
Pro Plus Thumb 4-tooth 1086 mm (43 in): 578-2501
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
42.8 in
Pro Plus Thumb 4-tooth 1206 mm (47 in): 578-2506
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
47.5 in
Pro Plus Thumb 4-tooth 1207 mm (48 in): 533-0893
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
47.5 in
Pro Plus Thumb 4-tooth 1332 mm (52 in): 578-2558
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
52.4 in
Pro Plus Thumb 4-tooth 568 mm (22 in): 578-2529
Number of Teeth/Tines
4
Stored Height
25.8 in
Overall Width
31.5 in
Pro Plus Thumb 4-tooth 568 mm (22 in): 578-2538
Number of Teeth/Tines
4
Stored Height
25.3 in
Overall Width
22.4 in
Pro Plus Thumb 4-tooth 660 mm (26 in): 578-2534
Number of Teeth/Tines
4
Stored Height
25.8 in
Overall Width
26 in
Pro Plus Thumb 4-tooth 660 mm (26 in): 578-2543
Number of Teeth/Tines
4
Stored Height
25.3 in
Overall Width
26 in
Pro Plus Thumb 4-tooth 741 mm (29 in): 559-5514
Number of Teeth/Tines
4
Stored Height
36.5 in
Overall Width
29.2 in
Pro Plus Thumb 4-tooth 757 mm (30 in): 387-9676
Number of Teeth/Tines
4
Stored Height
28.1 in
Overall Width
29.8 in
Pro Plus Thumb 4-tooth 775 mm (31 in): 578-2487
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
30.5 in
Pro Plus Thumb 4-tooth 775 mm (31 in): 578-2488
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
30.5 in
Pro Plus Thumb 4-tooth 775 mm (31 in): 578-2516
Number of Teeth/Tines
4
Stored Height
32.8 in
Overall Width
30.5 in
Pro Plus Thumb 4-tooth 799 mm (31 in): 578-2535
Number of Teeth/Tines
4
Stored Height
25.8 in
Overall Width
31.5 in
Pro Plus Thumb 4-tooth 799 mm (31 in): 578-2544
Number of Teeth/Tines
4
Stored Height
25.3 in
Overall Width
31.5 in
Pro Plus Thumb 4-tooth 843 mm (33 in): 533-0898
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
33.2 in
Pro Plus Thumb 4-tooth 882 mm (35 in): 532-8815
Number of Teeth/Tines
4
Stored Height
33.7 in
Overall Width
34.7 in
Pro Plus Thumb 4-tooth 926 mm (36 in): 578-2493
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
36.5 in
Pro Plus Thumb 4-tooth 926 mm (37 in): 559-5506
Number of Teeth/Tines
4
Stored Height
32.8 in
Overall Width
36.5 in
Pro Plus Thumb 4-tooth 926 mm (37 in): 559-5518
Number of Teeth/Tines
4
Stored Height
36.5 in
Overall Width
36.5 in
Pro Plus Thumb 4-tooth 957 mm (38 in): 533-0889
Number of Teeth/Tines
4
Stored Height
33.7 in
Overall Width
37.7 in
Pro Plus Thumb 4-tooth 957 mm (38 in): 533-0902
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
37.7 in
Pro Plus Thumb 5-tooth 1043 mm (41 in): 533-0886
Number of Teeth/Tines
5
Stored Height
33.7 in
Overall Width
41.1 in
Pro Plus Thumb 5-tooth 1043 mm (41 in): 533-0899
Number of Teeth/Tines
5
Stored Height
41.3 in
Overall Width
41.1 in
Pro Plus Thumb 5-tooth 1086 mm (43 in): 578-2494
Number of Teeth/Tines
5
Stored Height
35.2 in
Overall Width
42.8 in
Pro Plus Thumb 5-tooth 1138 mm (45 in): 533-0885
Number of Teeth/Tines
5
Stored Height
33.7 in
Overall Width
44.8 in
Pro Plus Thumb 5-tooth 1138 mm (45 in): 533-0903
Number of Teeth/Tines
5
Stored Height
41.3 in
Overall Width
44.8 in
Pro Plus Thumb 5-tooth 726 mm (29 in): 578-2530
Number of Teeth/Tines
5
Stored Height
25.8 in
Overall Width
28.6 in
Pro Plus Thumb 5-tooth 726 mm (29 in): 578-2539
Number of Teeth/Tines
5
Stored Height
25.8 in
Overall Width
28.6 in
Pro Plus Thumb 5-tooth 923 mm (36 in): 387-9678
Number of Teeth/Tines
5
Stored Height
28.1 in
Overall Width
36.3 in
Pro Plus Thumb 5-tooth 926 mm (36 in): 578-2489
Number of Teeth/Tines
5
Stored Height
35.2 in
Overall Width
36.5 in
Pro Plus Thumb 6-tooth 1005 mm (40 in): 578-2532
Number of Teeth/Tines
6
Stored Height
25.8 in
Overall Width
39.6 in
Pro Plus Thumb 6-tooth 1005 mm (40 in): 578-2541
Number of Teeth/Tines
6
Stored Height
25.3 in
Overall Width
39.6 in
Pro Plus Thumb 6-tooth 1086 mm (43 in): 578-2490
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
42.8 in
Pro Plus Thumb 6-tooth 1206 mm (47 in): 578-2495
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
47.5 in
Pro Plus Thumb 6-tooth 1207 mm (48 in): 533-0887
Number of Teeth/Tines
6
Stored Height
33.7 in
Overall Width
47.5 in
Pro Plus Thumb 6-tooth 1207 mm (48 in): 533-0900
Number of Teeth/Tines
6
Stored Height
41.3 in
Overall Width
47.5 in
Pro Plus Thumb 6-tooth 1332 mm (52 in): 578-2496
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
52.4 in
Pro Plus Thumb 6-tooth 879 mm (35 in): 578-2531
Number of Teeth/Tines
6
Stored Height
25.8 in
Overall Width
39.6 in
Pro Plus Thumb 6-tooth 879 mm (35 in): 578-2540
Number of Teeth/Tines
6
Stored Height
25.3 in
Overall Width
34.6 in
Pro Thumb 2-tooth 1043 mm (41 in): 443-0136
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
41.1 in
Pro Thumb 2-tooth 1086 mm (43 in): 418-0434
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
42.8 in
Pro Thumb 2-tooth 1138 mm (45 in): 443-0144
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
44.8 in
Pro Thumb 2-tooth 522 mm (21 in): 473-3845
Number of Teeth/Tines
2
Stored Height
25.3 in
Overall Width
20.6 in
Pro Thumb 2-tooth 741 mm (29 in): 418-0424
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Thumb 2-tooth 741 mm (29 in): 418-0430
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Thumb 2-tooth 741 mm (29 in): 584-5098
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
29.2 in
Pro Thumb 2-tooth 793 mm (31 in): 443-0140
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
31.2 in
Pro Thumb 2-tooth 843 mm (33 in): 443-0134
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
33.2 in
Pro Thumb 2-tooth 926 mm (37 in): 418-0426
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
36.5 in
Pro Thumb 2-tooth 926 mm (37 in): 418-0432
Number of Teeth/Tines
2
Stored Height
39.8 in
Overall Width
36.5 in
Pro Thumb 2-tooth 957 mm (38 in): 443-0142
Number of Teeth/Tines
2
Stored Height
41.3 in
Overall Width
37.7 in
Pro Thumb 3-tooth 522 mm (21 in): 387-9768
Number of Teeth/Tines
3
Stored Height
25.9 in
Overall Width
22.2 in
Pro Thumb 3-tooth 563 mm (22 in): 578-2552
Number of Teeth/Tines
3
Stored Height
25.9 in
Overall Width
22.2 in
Pro Thumb 3-tooth 636 mm (25 in): 387-9692
Number of Teeth/Tines
3
Stored Height
28.2 in
Overall Width
25 in
Pro Thumb 3-tooth 741 mm (29 in): 418-0502
Number of Teeth/Tines
3
Stored Height
36.5 in
Overall Width
29.2 in
Pro Thumb 3-tooth 775 mm (31 in): 418-0412
Number of Teeth/Tines
3
Stored Height
35.2 in
Overall Width
30.5 in
Pro Thumb 3-tooth 775 mm (31 in): 418-0484
Number of Teeth/Tines
3
Stored Height
32.8 in
Overall Width
30.5 in
Pro Thumb 3-tooth 793 mm (31 in): 443-0152
Number of Teeth/Tines
3
Stored Height
41.3 in
Overall Width
31.2 in
Pro Thumb 3-tooth 882 mm (35 in): 443-0128
Number of Teeth/Tines
3
Stored Height
33.7 in
Overall Width
34.7 in
Pro Thumb 4-tooth 1086 mm (43 in): 418-0428
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
42.8 in
Pro Thumb 4-tooth 1206 mm (48 in): 418-0436
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
47.5 in
Pro Thumb 4-tooth 1207 mm (48 in): 443-0138
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
47.5 in
Pro Thumb 4-tooth 1332 mm (52 in): 418-0438
Number of Teeth/Tines
4
Stored Height
39.8 in
Overall Width
52.4 in
Pro Thumb 4-tooth 568 mm (22 in): 387-9760
Number of Teeth/Tines
4
Stored Height
25.2 in
Overall Width
22.4 in
Pro Thumb 4-tooth 568 mm (22 in): 578-2547
Number of Teeth/Tines
4
Stored Height
25.9 in
Overall Width
22.4 in
Pro Thumb 4-tooth 660 mm (26 in): 387-9770
Number of Teeth/Tines
4
Stored Height
25.2 in
Overall Width
26 in
Pro Thumb 4-tooth 660 mm (26 in): 578-2554
Number of Teeth/Tines
4
Stored Height
25.9 in
Overall Width
26 in
Pro Thumb 4-tooth 741 mm (29 in): 418-0496
Number of Teeth/Tines
4
Stored Height
36.5 in
Overall Width
29.2 in
Pro Thumb 4-tooth 757 mm (30 in): 387-9696
Number of Teeth/Tines
4
Stored Height
28.2 in
Overall Width
29.8 in
Pro Thumb 4-tooth 775 mm (31 in): 578-2511
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
30.5 in
Pro Thumb 4-tooth 775 mm (31 in): 578-2512
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
30.5 in
Pro Thumb 4-tooth 775 mm (31 in): 578-2526
Number of Teeth/Tines
4
Stored Height
32.8 in
Overall Width
30.5 in
Pro Thumb 4-tooth 799 mm (31 in): 578-2555
Number of Teeth/Tines
4
Stored Height
25.9 in
Overall Width
31.5 in
Pro Thumb 4-tooth 799 mm (32 in): 387-9772
Number of Teeth/Tines
4
Stored Height
25.2 in
Overall Width
31.5 in
Pro Thumb 4-tooth 843 mm (33 in): 443-0146
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
33.2 in
Pro Thumb 4-tooth 882 mm (35 in): 443-0122
Number of Teeth/Tines
4
Stored Height
33.7 in
Overall Width
34.7 in
Pro Thumb 4-tooth 926 mm (37 in): 418-0414
Number of Teeth/Tines
4
Stored Height
35.2 in
Overall Width
36.5 in
Pro Thumb 4-tooth 926 mm (37 in): 418-0486
Number of Teeth/Tines
4
Stored Height
32.8 in
Overall Width
36.5 in
Pro Thumb 4-tooth 926 mm (37 in): 418-0504
Number of Teeth/Tines
4
Stored Height
36.5 in
Overall Width
36.5 in
Pro Thumb 4-tooth 957 mm (38 in): 443-0130
Number of Teeth/Tines
4
Stored Height
33.7 in
Overall Width
37.7 in
Pro Thumb 4-tooth 957 mm (38 in): 443-0154
Number of Teeth/Tines
4
Stored Height
41.3 in
Overall Width
37.7 in
Pro Thumb 5-tooth 1043 mm (41 in): 443-0124
Number of Teeth/Tines
5
Stored Height
33.7 in
Overall Width
41.1 in
Pro Thumb 5-tooth 1043 mm (41 in): 443-0148
Number of Teeth/Tines
5
Stored Height
41.3 in
Overall Width
41.1 in
Pro Thumb 5-tooth 1086 mm (43 in): 418-0416
Number of Teeth/Tines
5
Stored Height
35.2 in
Overall Width
42.8 in
Pro Thumb 5-tooth 1138 mm (45 in): 443-0132
Number of Teeth/Tines
5
Stored Height
33.7 in
Overall Width
44.8 in
Pro Thumb 5-tooth 1138 mm (45 in): 443-0156
Number of Teeth/Tines
5
Stored Height
41.3 in
Overall Width
44.8 in
Pro Thumb 5-tooth 726 mm (29 in): 387-9762
Number of Teeth/Tines
5
Stored Height
25.2 in
Overall Width
28.6 in
Pro Thumb 5-tooth 726 mm (29 in): 578-2548
Number of Teeth/Tines
5
Stored Height
25.9 in
Overall Width
28.6 in
Pro Thumb 5-tooth 923 mm (36 in): 387-9698
Number of Teeth/Tines
5
Stored Height
28.2 in
Overall Width
36.4 in
Pro Thumb 5-tooth 926 mm (36 in): 578-2513
Number of Teeth/Tines
5
Stored Height
35.2 in
Overall Width
36.5 in
Pro Thumb 6-tooth 1005 mm (40 in): 387-9766
Number of Teeth/Tines
6
Stored Height
25.2 in
Overall Width
39.6 in
Pro Thumb 6-tooth 1005 mm (40 in): 578-2551
Number of Teeth/Tines
6
Stored Height
25.9 in
Overall Width
39.6 in
Pro Thumb 6-tooth 1086 mm (43 in): 578-2514
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
42.8 in
Pro Thumb 6-tooth 1206 mm (48 in): 418-0418
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
47.5 in
Pro Thumb 6-tooth 1207 mm (48 in): 443-0126
Number of Teeth/Tines
6
Stored Height
33.7 in
Overall Width
47.5 in
Pro Thumb 6-tooth 1207 mm (48 in): 443-0150
Number of Teeth/Tines
6
Stored Height
41.3 in
Overall Width
47.5 in
Pro Thumb 6-tooth 1332 mm (52 in): 418-0420
Number of Teeth/Tines
6
Stored Height
35.2 in
Overall Width
52.4 in
Pro Thumb 6-tooth 879 mm (35 in): 387-9764
Number of Teeth/Tines
6
Stored Height
25.2 in
Overall Width
34.6 in
Pro Thumb 6-tooth 879 mm (35 in): 578-2549
Number of Teeth/Tines
6
Stored Height
25.9 in
Overall Width
34.6 in
RC20
Weight
2954 lb
Carrier Weight
20-34 metric tons
Interface
Pin on, CPG, CW, S
S2050 Straight Scrap & Demolition Shear
Weight – Boom Mount
9206 lb
Length
140 in
Height
60 in
S2070 Straight Scrap & Demolition Shear
Weight – Boom Mount
12822 lb
Length
153 in
Height
70 in
S2090 Straight Scrap & Demolition Shear
Weight – Boom Mount
16493 lb
Length
170 in
Height
74 in
S3015 Rotating Scrap & Demolition Shear
Weight – Boom Mount
3331 lb
Weight – Stick Mount
3234 lb
Length
105 in
S3025 Rotating Scrap & Demolition Shear
Weight – Boom Mount
5370 lb
Weight – Stick Mount
5117 lb
Length
126 in
S3035 Rotating Scrap & Demolition Shear
Weight – Boom Mount
7553 lb
Weight – Stick Mount
7057 lb
Length
137 in
S3050 Rotating Scrap & Demolition Shear
Weight – Boom Mount
11201 lb
Weight – Stick Mount
10650 lb
Length
176 in
S3070 Rotating Scrap & Demolition Shear
Weight – Boom Mount
15578 lb
Weight – Stick Mount
15259 lb
Length
193 in
S3090 Rotating Scrap & Demolition Shear
Weight – Boom Mount
19889 lb
Weight – Stick Mount
19316 lb
Length
211 in
Severe Duty Bucket 1050 mm (42 in): 528-2192
Width
42 in
Capacity
1.75 yd³
Weight
3790 lb
Severe Duty Bucket 1050 mm (42 in): 528-4641
Width
42 in
Capacity
1.54 yd³
Weight
2826 lb
Severe Duty Bucket 1050 mm (42 in): 541-1770
Width
42 in
Capacity
1.46 yd³
Weight
2284 lb
Severe Duty Bucket 1050 mm (42 in): 541-1775
Width
42 in
Capacity
1.41 yd³
Weight
2441 lb
Severe Duty Bucket 1050 mm (42 in): 541-1780
Width
42 in
Capacity
1.48 yd³
Weight
2121 lb
Severe Duty Bucket 1050 mm (42 in): 550-9227
Width
42 in
Capacity
0.85 yd³
Weight
1300 lb
Severe Duty Bucket 1050 mm (42 in): 552-8139
Width
42 in
Capacity
0.85 yd³
Weight
1232 lb
Severe Duty Bucket 1050 mm (42 in): 552-8143
Width
42 in
Capacity
0.85 yd³
Weight
1113 lb
Severe Duty Bucket 1050 mm (42 in): 552-8251
Width
42 in
Capacity
1.31 yd³
Weight
1991 lb
Severe Duty Bucket 1150 mm (45 in): 519-5294
Width
45 in
Capacity
3 yd³
Weight
7008 lb
Severe Duty Bucket 1150 mm (47 in): 519-5285
Width
47 in
Capacity
2.49 yd³
Weight
6041 lb
Severe Duty Bucket 1200 mm (48 in): 528-2193
Width
48 in
Capacity
2.09 yd³
Weight
4134 lb
Severe Duty Bucket 1200 mm (48 in): 528-4588
Width
83 in
Capacity
1.83 yd³
Weight
3558 lb
Severe Duty Bucket 1200 mm (48 in): 528-4642
Width
48 in
Capacity
1.83 yd³
Weight
3104 lb
Severe Duty Bucket 1200 mm (48 in): 528-4649
Width
48 in
Capacity
1.83 yd³
Weight
750 lb
Severe Duty Bucket 1200 mm (48 in): 528-4652
Width
48 in
Capacity
1.69 yd³
Weight
3197 lb
Severe Duty Bucket 1200 mm (48 in): 541-1771
Width
48 in
Capacity
1.74 yd³
Weight
2456 lb
Severe Duty Bucket 1200 mm (48 in): 550-9622
Width
48 in
Capacity
1.57 ft³
Weight
2150 lb
Severe Duty Bucket 1200 mm (48 in): 552-8252
Width
48 in
Capacity
1.56 yd³
Interface
Use as Pin-on or with Cat Pin Grabber Coupler
Severe Duty Bucket 1300 mm (51 in): 528-4596
Width
67 in
Capacity
2.77 yd³
Weight
3898 lb
Severe Duty Bucket 1350 mm (54 in): 528-4643
Width
54 in
Capacity
2.14 yd³
Weight
3331 lb
Severe Duty Bucket 1350 mm (54 in): 528-4653
Width
54 in
Capacity
1.96 yd³
Weight
3435 lb
Severe Duty Bucket 1350 mm (54 in): 528-4665
Width
54 in
Capacity
2.44 yd³
Weight
4184 lb
Severe Duty Bucket 1350 mm (54 in): 541-1781
Width
54 in
Capacity
2.04 yd³
Weight
2491 lb
Severe Duty Bucket 1350 mm (54 in): 554-3128
Width
54 in
Capacity
2.44 yd³
Weight
4403 lb
Severe Duty Bucket 1350 mm (54 in): 561-2262
Width
54 in
Capacity
2.04 yd³
Weight
2575 lb
Severe Duty Bucket 1350 mm (54 in): 566-6635
Width
54 in
Capacity
2.44 yd³
Weight
4707 lb
Severe Duty Bucket 1400 mm (55 in): 518-9314
Width
78.7 in
Capacity
2.44 yd³
Weight
4605 lb
Severe Duty Bucket 1400 mm (55 in): 525-4049
Width
72 in
Capacity
4.07 yd³
Weight
5229 lb
Severe Duty Bucket 1400 mm (56 in): 528-4598
Width
56 in
Capacity
2.01 yd³
Weight
3298 lb
Severe Duty Bucket 1450 mm (57 in): 519-5295
Width
57 in
Capacity
3.92 yd³
Weight
7928 lb
Severe Duty Bucket 1450 mm (59 in): 568-7616
Width
59 in
Capacity
3.12 yd³
Weight
5445 lb
Severe Duty Bucket 1500 mm (59 in): 528-4645
Width
59 in
Capacity
2.5 yd³
Weight
3549 lb
Severe Duty Bucket 1500 mm (59 in): 528-4668
Width
59 in
Capacity
2.5 yd³
Weight
3486 lb
Severe Duty Bucket 1550 mm (61 in): 518-9315
Width
61 in
Capacity
2.8 yd³
Weight
5000 lb
Severe Duty Bucket 1550 mm (61 in): 518-9327
Width
61 in
Capacity
2.8 yd³
Weight
4951 lb
Severe Duty Bucket 1550 mm (61 in): 518-9333
Width
61 in
Capacity
3.41 yd³
Weight
5681 lb
Severe Duty Bucket 1550 mm (61 in): 518-9334
Width
61 in
Capacity
3.41 yd³
Weight
5509 lb
Severe Duty Bucket 1550 mm (61 in): 518-9343
Width
61 in
Capacity
2.80 yd³
Weight
4791 lb
Severe Duty Bucket 1550 mm (61 in): 518-9345
Width
61 in
Capacity
3.41 yd³
Weight
5677 lb
Severe Duty Bucket 1550 mm (61 in): 519-2234
Width
61 in
Capacity
2.8 yd³
Weight
832 lb
Severe Duty Bucket 1550 mm (61 in): 519-2236
Width
65 in
Capacity
3.41 yd³
Weight
6041 lb
Severe Duty Bucket 1550 mm (61 in): 525-4050
Width
61 in
Capacity
2.66 yd³
Weight
4295 lb
Severe Duty Bucket 1550 mm (61 in): 601-1959
Width
61 in
Capacity
3.41 yd³
Weight
5604 lb
Severe Duty Bucket 1550 mm (61 in): 604-6608
Width
61 in
Capacity
3.41 yd³
Weight
5538 lb
Severe Duty Bucket 1600 mm (63 in): 577-0350
Width
63 in
Capacity
2.88 yd³
Weight
5090 lb
Severe Duty Bucket 1600 mm (64 in): 519-5286
Width
64 in
Capacity
3.79 yd³
Weight
7303 lb
Severe Duty Bucket 1600 mm (64 in): 570-5299
Width
64 in
Capacity
3.53 yd³
Weight
5785 lb
Severe Duty Bucket 1650 mm (65 in): 518-9335
Width
65 in
Capacity
3.62 yd³
Weight
5858 lb
Severe Duty Bucket 1650 mm (65 in): 518-9336
Width
65 in
Capacity
3.62 yd³
Weight
5686 lb
Severe Duty Bucket 1650 mm (65 in): 518-9354
Width
65 in
Capacity
3.62 yd³
Weight
6221 lb
Severe Duty Bucket 1650 mm (65 in): 519-2235
Width
65 in
Capacity
3.15 yd³
Weight
5697 lb
Severe Duty Bucket 1650 mm (65 in): 528-8159
Width
67 in
Capacity
3.62 yd³
Weight
5697 lb
Severe Duty Bucket 1650 mm (65 in): 600-3973
Width
65 in
Capacity
3.62 yd³
Weight
5796 lb
Severe Duty Bucket 1650 mm (65 in): 604-6609
Width
65 in
Capacity
3.62 yd³
Weight
5706 lb
Severe Duty Bucket 1650 mm (66 in): 528-4585
Width
66 in
Capacity
2.81 yd³
Weight
4160 lb
Severe Duty Bucket 1650 mm (66 in): 528-4592
Width
66 in
Capacity
2.81 yd³
Weight
4103 lb
Severe Duty Bucket 1650 mm (66 in): 528-4593
Width
67 in
Capacity
3.15 yd³
Weight
5406 lb
Severe Duty Bucket 1650 mm (66 in): 528-4646
Width
66 in
Capacity
2.81 yd³
Weight
3818 lb
Severe Duty Bucket 1650 mm (66 in): 528-4661
Width
66 in
Capacity
3.15 yd³
Weight
5064 lb
Severe Duty Bucket 1650 mm (66 in): 528-4663
Width
66 in
Capacity
3.15 yd³
Weight
4844 lb
Severe Duty Bucket 1650 mm (66 in): 528-4667
Width
66 in
Capacity
3.15 yd³
Weight
4848 lb
Severe Duty Bucket 1650 mm (66 in): 551-2213
Width
66 in
Capacity
2.81 yd³
Weight
4101 lb
Severe Duty Bucket 1650 mm (66 in): 558-6618
Width
66 in
Capacity
3.15 yd³
Weight
5185 lb
Severe Duty Bucket 1700 mm (67 in): 518-9316
Width
67 in
Capacity
3.15 yd³
Weight
5309 lb
Severe Duty Bucket 1700 mm (67 in): 518-9328
Width
67 in
Capacity
3.15 yd³
Weight
5287 lb
Severe Duty Bucket 1700 mm (67 in): 528-8130
Width
77 in
Capacity
4.46 yd³
Weight
5573 lb
Severe Duty Bucket 1700 mm (67 in): 594-6154
Width
67 in
Capacity
3.15 yd³
Weight
5236 lb
Severe Duty Bucket 1700 mm (67 in): 604-6614
Width
67 in
Capacity
3.15 yd³
Weight
5216 lb
Severe Duty Bucket 1750 mm (69 in): 518-9326
Width
69 in
Capacity
3.14 yd³
Weight
974 lb
Severe Duty Bucket 1750 mm (69 in): 519-5296
Width
69 in
Capacity
5.1 yd³
Weight
8856 lb
Severe Duty Bucket 1750 mm (69 in): 528-8133
Width
69 in
Capacity
3.14 yd³
Weight
5820 lb
Severe Duty Bucket 1750 mm (69 in): 600-3974
Width
69 in
Capacity
4.19 yd³
Weight
5886 lb
Severe Duty Bucket 1750 mm (70 in): 519-5287
Width
70 in
Capacity
4.32 yd³
Weight
7736 lb
Severe Duty Bucket 1850 mm (73 in): 518-9325
Width
73 in
Capacity
4.2 yd³
Weight
6329 lb
Severe Duty Bucket 1850 mm (73 in): 518-9346
Width
73 in
Capacity
4.20 yd³
Weight
6371 lb
Severe Duty Bucket 1850 mm (73 in): 518-9351
Width
73 in
Capacity
4.2 yd³
Weight
6693 lb
Severe Duty Bucket 1850 mm (73 in): 519-2237
Width
73 in
Capacity
4.20 yd³
Weight
6371 lb
Severe Duty Bucket 1850 mm (73 in): 528-8156
Width
73 in
Capacity
4.2 yd³
Weight
6158 lb
Severe Duty Bucket 1850 mm (73 in): 563-2899
Width
73 in
Capacity
4.2 yd³
Weight
6689 lb
Severe Duty Bucket 1850 mm (73 in): 577-0295
Width
73 in
Capacity
4.2 yd³
Weight
6702 lb
Severe Duty Bucket 1850 mm (73 in): 591-7423
Width
73 in
Capacity
5.50 yd³
Weight
9270 lb
Severe Duty Bucket 1850 mm (73 in): 600-9721
Width
73 in
Capacity
3.52 yd³
Weight
5624 lb
Severe Duty Bucket 1850 mm (73 in): 604-6606
Width
73 in
Capacity
3.52 yd³
Weight
5615 lb
Severe Duty Bucket 1850 mm (73 in): 604-6611
Width
73 in
Capacity
4.19 yd³
Weight
6138 lb
Severe Duty Bucket 1850 mm (74 in): 518-9317
Width
74 in
Capacity
3.52 yd³
Weight
5705 lb
Severe Duty Bucket 1900 mm (75 in): 518-9330
Width
75 in
Capacity
3.64 yd³
Weight
838 lb
Severe Duty Bucket 1900 mm (75 in): 528-8155
Width
87 in
Capacity
3.64 yd³
Weight
5756 lb
Severe Duty Bucket 1900 mm (75 in): 581-3599
Width
75 in
Capacity
4.05 yd³
Weight
6052 lb
Severe Duty Bucket 1900 mm (75 in): 595-6996
Width
75 in
Capacity
4.05 yd³
Weight
6052 lb
Severe Duty Bucket 1950 mm (77 in): 518-9337
Width
77 in
Capacity
4.48 yd³
Weight
6625 lb
Severe Duty Bucket 1950 mm (77 in): 518-9355
Width
77 in
Capacity
4.48 yd³
Weight
7039 lb
Severe Duty Bucket 1950 mm (77 in): 519-5399
Width
77 in
Capacity
5.36 yd³
Weight
10210 lb
Severe Duty Bucket 1950 mm (77 in): 519-5403
Width
77 in
Capacity
5.23 yd³
Weight
10152 lb
Severe Duty Bucket 2000 mm (79 in): 519-5288
Width
79 in
Capacity
4.97 yd³
Weight
8459 lb
Severe Duty Bucket 2000 mm (79 in): 519-5298
Width
79 in
Capacity
6.02 yd³
Weight
9636 lb
Severe Duty Bucket 2000 mm (79 in): 519-5465
Width
79 in
Capacity
6.02 yd³
Weight
12826 lb
Severe Duty Bucket 2050 mm (81 in): 519-5400
Width
81 in
Capacity
5.75 yd³
Weight
10554 lb
Severe Duty Bucket 2050 mm (81 in): 519-5404
Width
81 in
Capacity
5.75 yd³
Weight
10494 lb
Severe Duty Bucket 2150 mm (85 in): 519-5405
Width
85 in
Capacity
6.02 yd³
Weight
10900 lb
Severe Duty Bucket 2150 mm (85 in): 591-8382
Width
85 in
Capacity
6.50 yd³
Weight
10199 lb
Severe Duty Bucket 2200 mm (87 in): 519-5406
Width
87 in
Capacity
6.02 yd³
Weight
10970 lb
Severe Duty Bucket 2200 mm (87 in): 564-6481
Width
87 in
Capacity
6.80 yd³
Weight
10351 lb
Severe Duty Bucket 2250 mm (89 in): 519-5407
Width
89 in
Capacity
6.54 yd³
Weight
11246 lb
Severe Duty Bucket 2300 mm (91 in): 519-5466
Width
91 in
Capacity
7.06 yd³
Weight
14101 lb
Severe Duty Bucket 2300 mm (91 in): 519-5471
Width
91 in
Capacity
7.06 yd³
Weight
13561 lb
Severe Duty Bucket 2400 mm (94 in): 519-5472
Width
94 in
Capacity
7.46 yd³
Weight
2943 lb
Severe Duty Bucket 2400 mm (94 in): 519-5474
Width
94 in
Capacity
7.46 yd³
Weight
14553 lb
Severe Duty Bucket 2500 mm (98 in): 519-5467
Width
98 in
Capacity
7.85 yd³
Weight
3829 lb
Severe Duty Bucket 2650 mm (104 in): 543-2823
Width
104 in
Capacity
8.50 yd³
Weight
15624 lb
Severe Duty Bucket 600 mm (24 in): 541-1767
Width
24 in
Capacity
0.68 yd³
Weight
1702 lb
Severe Duty Bucket 600 mm (24 in): 541-1773
Width
24 in
Capacity
0.67 yd³
Weight
1751 lb
