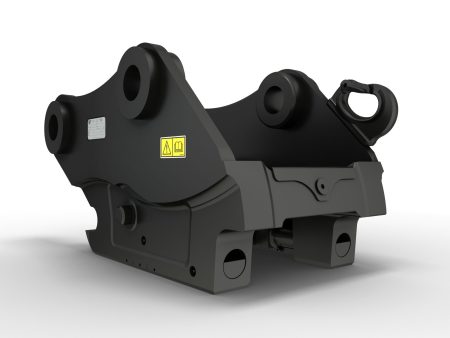

Hydraulic Connecting S Type Coupler HCS70/55: 582-9976

Specifications

Features

Average 37 Percent Better Flow

• Couplings are machined and sized for the high-flow performance required by hydromechanical attachments.
• Better hydraulic flow results in fuel efficiency gains from less restricted hydraulics.
• Enclosed spring prevents contamination of hydraulic system.
• Fail-safe fluid connections create a system for hydraulic fluid flow and no opportunity for spills during tool exchange.
• Internally routed hoses in the bracket and coupler use fewer external hoses, reducing overall hose and repair costs.

Average 10 Times Better Quick Disconnect Life

• Quick disconnect design improves lifespan and is easy to service.
• Design of cover lid and sealing adds protection for couplings and prevents contamination to hydraulic system.
• Machined position of quick disconnects creates the best bracketto coupler connection.
• Quick disconnect couplings are installed in the same direction asthe locking force with a solid flange to ensure a solid fit. No locking rings or nuts which increase the chances of loose or broken parts.

Industry-leading Safety

• Industry-leading safety features in sensor technology.
• Safe coupler locking complies with updated European EN474safety standard.
• Keep everyone on the job site safer. The operator stays safe inthe cab and no assistance is required to connect or disconnecthydraulic hoses during attachment changes.
• Multiple electronic and mechanical measures in place to keepattachment secure, even if a pressure loss occurs.
• Operator has visual and audible confirmations from inside thecab of successful attachment connection.
• Heavy-duty locking wedge design keeps connections tightand in place during use.

Additional Versatility

• Attachment switching with a hydraulic connect coupler:
  • Quick changes mean operators will utilize task and applicationappropriate attachments, increasing overall productivity andextending the life of the attachments.
  • The ability to exchange attachments easily can reduce thenumber of machines needed for a job.
  • Fast attachment changes with the hydraulic connecting interfacewill save time over static couplers or pin-on attachments.
• Electric connector allows for full functionality when workingin combination with tiltrotators, ditch cleaning tilt buckets, andmulchers or other attachments with electronic harnesses for gradesensors or tool functions.
• Each coupler comes standard with a lifting hook with 5-, 8- or 10-ton lift capacity depending on the size class.

Boost Efficiency and Productivity with Integrated Technologies

• Never waste time looking for your attachments again. Cat assettracking is available on select attachments.
• Track your entire fleet of attachments and machines from onesource. Attachments with asset tracking can be viewed withinVisionLink® alongside Product Link™ subscribed equipment.
• Keep your assets secure. Attachments with an asset trackersend an alert if they leave an easy-to-setup site boundary.
