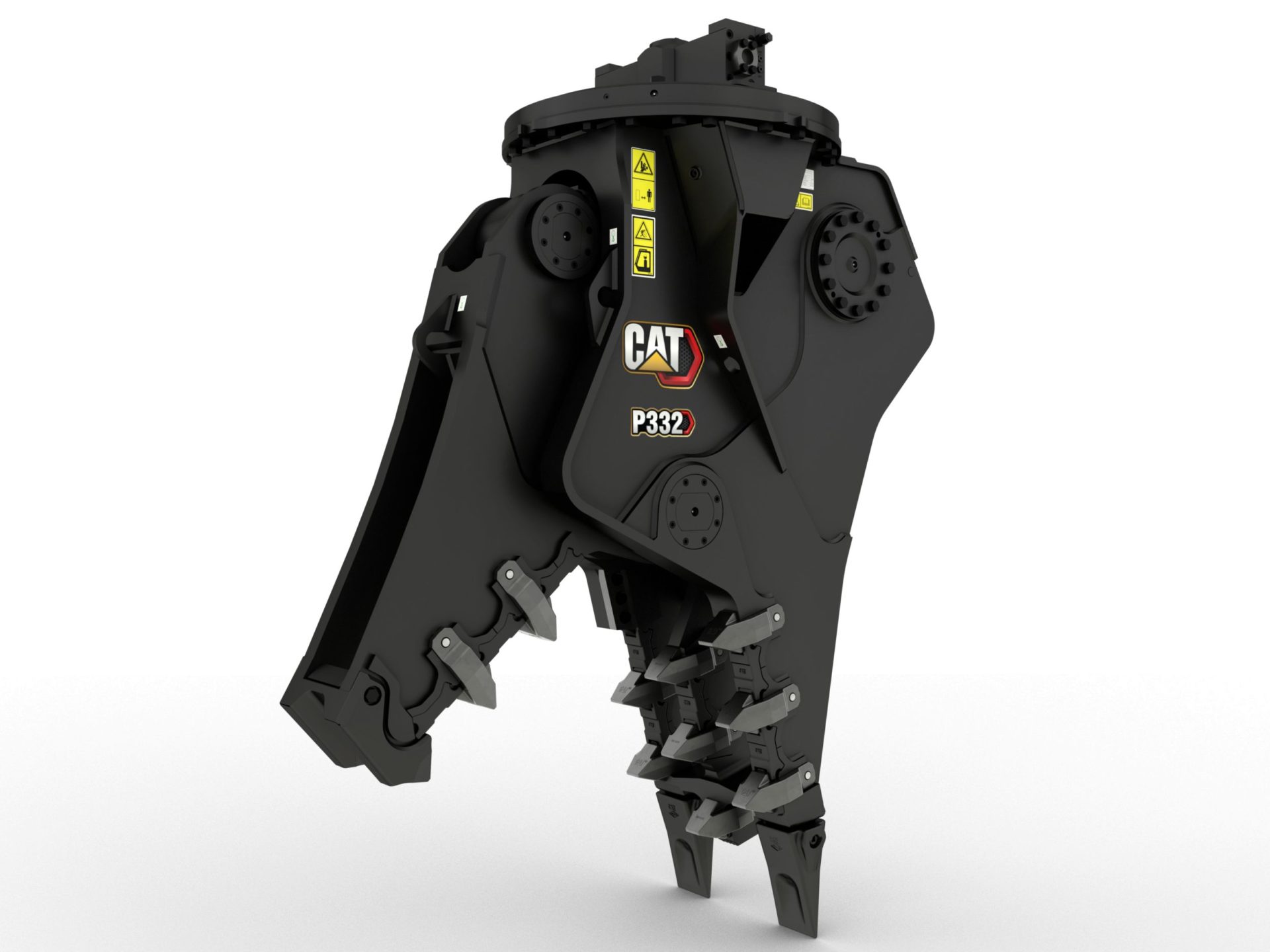

P332 Primary Pulverizer Primary Pulverizers

Description

Documents

Cat Pulverizers – Product Brochure (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am)
Cat Pulverizers – Key Features and Benefits (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am)
Cat Pulverizers – Technical Specifications (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am)

Specifications

Cycle Time - Open

1.9 s

Cycle Time - Close

1.3 s

Crushing Force - Primary Cutter

563 Sh Ton

Crushing Force - Tip

162 Sh Ton

Crushing Force - Primary Tooth

215 Sh Ton

Jaw Circuit - Max. Oil Pressure

4786 psi

Jaw Circuit - Max. Oil Flow

74 gal/min

Rotation Circuit - Max. Oil Pressure

2321 psi

Rotation Circuit - Max. Oil Flow

11 gal/min

Jaw Depth

32.3 in

Cutter Length

7.9 in

Jaw Opening - Maximum

51.8 in

Jaw Width - Fixed

26 in

Jaw Width - Moveable

15 in

Length

92.5 in

Height

78.9 in

Width

39.6 in

Weight - Housing, Jaw and Bracket

7330 lb

Excavator Minimum

32000 kg (70500 lb)

Excavator Maximum

50000 kg (110200 lb)

Features

HIGH PERFORMANCE

Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.

Precisely position primary pulverizer jaws with 360-degree rotation and visibility to the moveable jaw during demolition.

The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.

EASY TO MAINTAIN

Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.

Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.

Safely perform maintenance with easy access through one inspection panel.

Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.

RELIABILITY AND DURABILITY

Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.

Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.

The C-shaped cylinder guard provides extra protection against concrete demolition.

Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.

BOOST EFFICIENCY AND PRODUCTIVITY WITH INTEGRATED TECHNOLOGIES

Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.

Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.

Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.

VERSATILITY AND CONVENIENCE WITH COUPLERS

Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.

Significantly reduce the time it takes to switch attachments when using a quick coupler.

Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.

A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
