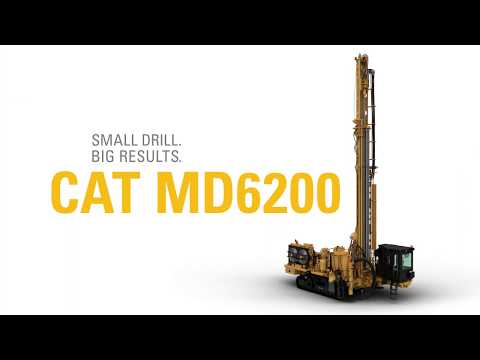

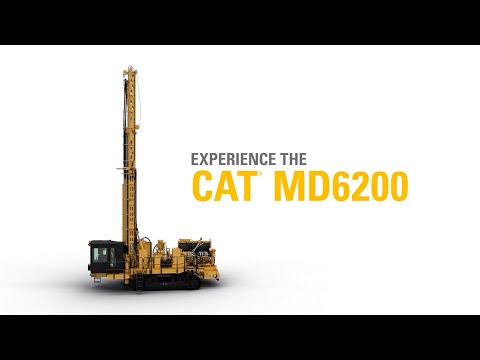

MD6200

Up to 15 876 kg (Up to 35,000 lb)

140-200 mm (5.5-7.87 in)

Cat© C18

Up to 16 964 kg (37,400 lb)

C18 @ 1,800 rpm

U.S. EPA Tier 2 equivalent

C18 @ 1,800 rpm

U.S. EPA Tier 4 Final

32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)

30 degrees to 0 degrees in 5-degree increments

Includes tool lubrication system

Optional tool lubrication system

With the compressor’s electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.

Low pressure 8.6 bar (125 psi)

High pressure 24.1 bar (350 psi)

Coolers with easy cleaning access

All cooler core sections are replaceable

Functional in ambient temperature of up to 52� C (125� F)

Automatic variable speed fan control

Rated down to -1C (30 F)

Withstands high heat up to 52 C (125 F)

Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life

Slip resistant surfaces

Fuel tank capacity 833 L (220 gal)

Three leveling jacks provide leveling on a 7� bench (any orientation)

Heavy duty tow hooks (non-drill end)

Four (4) lift lugs, for use with cables or chains

Fixed access steps to the cab area

Small platform to the cab includes fixed access steps

Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket

Cat® 336 Excavator type

Three (3)

600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure

Two (2) main pumps: 85 cc (piston with proportional electronic controls)

One (1) auxiliary circuit pump: 45 cc (piston, load sensing)

One (1) fan pump: 45 cc (piston with proportional electronic controls)

One (1) charge pump: 73.8 cc (gear, fixed displacement)

16964 kg

3.57 m

Pipe carousel:
Accepts quantity of four (4) 9.14 m (30 ft) pipes

Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)

16.54 m

9.44 m

Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)

17.54 m

3.58 m

Drills strings configured for bit changes above deck

757 l

11 m

Tier 4 Final package complete with DEF/Engine Shutdown Control Package

29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler

Dual starter motors

Water flow meter, volume control, tank fill level indicator

1.32 m/s

Top sub

140-200 mm (5.5-7.87 in)

262 000 Nm (193,241 lbf-ft)

4.18 m

11 m

Down to 47.58 m (Down to 156 ft)

Up to 15 876 kg (Up to 35,000 lb)

Drill tool lubricator is included with selection of DTH Compressor

29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)

Track chain guards and guides

Up to 15 876 kg (Up to 35,000 lb)

Up to 11 907 kg (Up to 26,250 lb)

Up to 11 907 kg (Up to 26,250 lb)

Down to 47.58 m (Down to 156 ft)

Scheduled Oil Sampling (S-O-S SM) ports

Ether starting aid

Eight (8)

439 kW

438 kW

3.3 km/h

152 mm

140 mm

2.1 km/h

Rated down to -18 C (0 F)

32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)

757 l

Drill tool lubricator (optional)

Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates

Single cylinder pulldown/hoist system

15.89 m

Sliding deck wrench assembly

Configured with roller deck bushing (for low pressure/tricone drilling)

Two-piece deck bushing (for high pressure DTH drilling)

Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating

Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)

Closed circuit camera mounted in mast to view pipe carousel/top drive operation

Pipe positioner for angle drilling, multi-pass pipe handling

Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket

One-piece roller deck bushing

Pipe positioner clamps

Deck wrench

Bit sub

Top sub

Pipe wiper seal

Two-piece bushing

Pipe positioner clamps

Deck wrench

Shock sub

Cross over subs

Pipe wiper seal

8360 N·m

0-150 rpm

Rotary torque control

Virtual rotary head travel interlocks

Virtual rotary head travel interlocks

Falling Object Protective Structure (FOPS) certified cab includes:
– Rubber shock-mounts to absorb mechanical vibration
– Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing out doors and Cat keyed locks
– Literature holder
– Storage area suitable for lunchbox

Standard configuration includes a fabric seat, removable floor mat, single pane window glass and driller window guard
Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.

– Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)
– Seat locks and has two point retractable, 76 mm (3 in) seat belt

– Large windows on the front, rear and right cab side; full length drill window with guard
– Window shades (option)
– Windshield wiper with a common washer tank
– Manometer Pressure Gauge (option)

– LED interior lights, backlit joysticks and keypads
– Flood lights for the drill perimeter; area spotlights
– Mast beacon and tram flashing strobe light (option)

– Floor heating vent
– Filter access from deck, 500 hour service interval
– Defogging HVAC vents on main window

– Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation

Electric controls for drilling, tramming, leveling plus auxiliary functions

Rotary torque control

Virtual rotary head travel stops

Pipe positioner engaged/disengaged indicator

Drill depth meter

Drill performance and display system

Delayed engine shut down

Filter indicators for hydraulic, fuel, compressor and engine

Jack pressure sensors

Data logging of machine health with warnings and fault code records with export capability

Dust suppression control

Mast lock indicator

ECM proportional fan speed control system

Tram interlock, machine stability limits

Tram interlock, pipe in hole

Tram interlock, mast up and locked or down and parked

Tram interlock, jacks retracted

Tram interlock, winch parked

Cab environment controls (AC, heat, fan speeds)

*Contact the factory for width with platform access to cab or service platform walkway.

Pre wired for Terrain and Autonomous Operation

Autonomous ready

Drill depth meter

Drill Assist Automated Functionality (onboard technology):
– Auto Level (with auto retract jacks)
– Auto Mast (raise, lower and lock into place)
– Auto Dril (single pass)

Cat Terrain ready

Product Link™ Elite

757 l

1514 l

76.5 cmm (2,700 cfm) dust collector; includes standard water injection

Self-cleaning filters, dust chute clean-out door

Static dust curtains, four sides boxed enclosed

Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)

Tram off spray system (option)

Approach angle of 15-degrees facilitates loading and unloading on a lowboy

Seven (7) emergency stop buttons

Hinged window guard over the full length of the front drill window

Conditional safety interlocks

Self-closing gates

Electric horn activated by push button in the cab

Automatic, audible tram alarm

Battery disconnect and starter switches can be locked out

Air hose retention devices

Slip resistant platform surfaces

Machine lifting provisions

FOPS Certified Operator Cab

Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water

Standard Package: Automated lubrication system, fast fill for fuel and water (option)

Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)

40 823 – 45 359 kg (90,000 – 100,000 lb)
