Description
Landscape Rakes Attachments
LR119
For scarifying the soil and collecting debris for easy removal.
Working Width
74.1 in
Bucket Capacity – Struck
1439.6 yd³
Weight
1439.6 lb
Specifications
Working Width
74.1 in
Bucket Capacity - Struck
0.4 yd³
Weight
1439.6 lb
Raking Width
65.6 in
Overall Width
78.3 in
Height
38.9 in
Length
63.8 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement
19.2 in³/rev
Driven Shaft Speed
165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines
444
Rock Size Range
19-152 mm (0.75-6 in)
Drive Method
Chain Reduction
Drive Chain
#80H
Conveyor Chain
#2060H
Required Hydraulics
Standard Flow
Features
Application

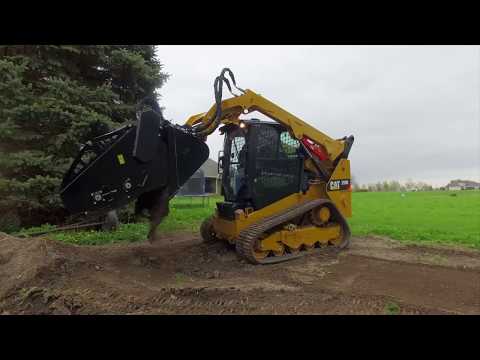

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.
Travel Direction

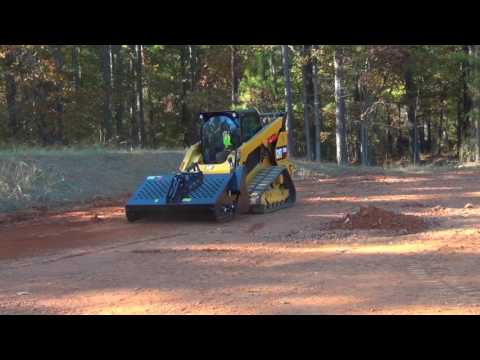

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.
Robust Design
Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.
Quick Dumping
Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.
Conveyor Tubes
Bolt-on conveyor tubes for easy replacement and serviceability.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
259D3 Compact Track Loaders
Gross Power – SAE J1995
55.4 kW
Rated Operating Capacities – 35% Tipping Load
915 kg
Operating Weight
4076 kg
