Description
Orange Peel Grapples Attachments

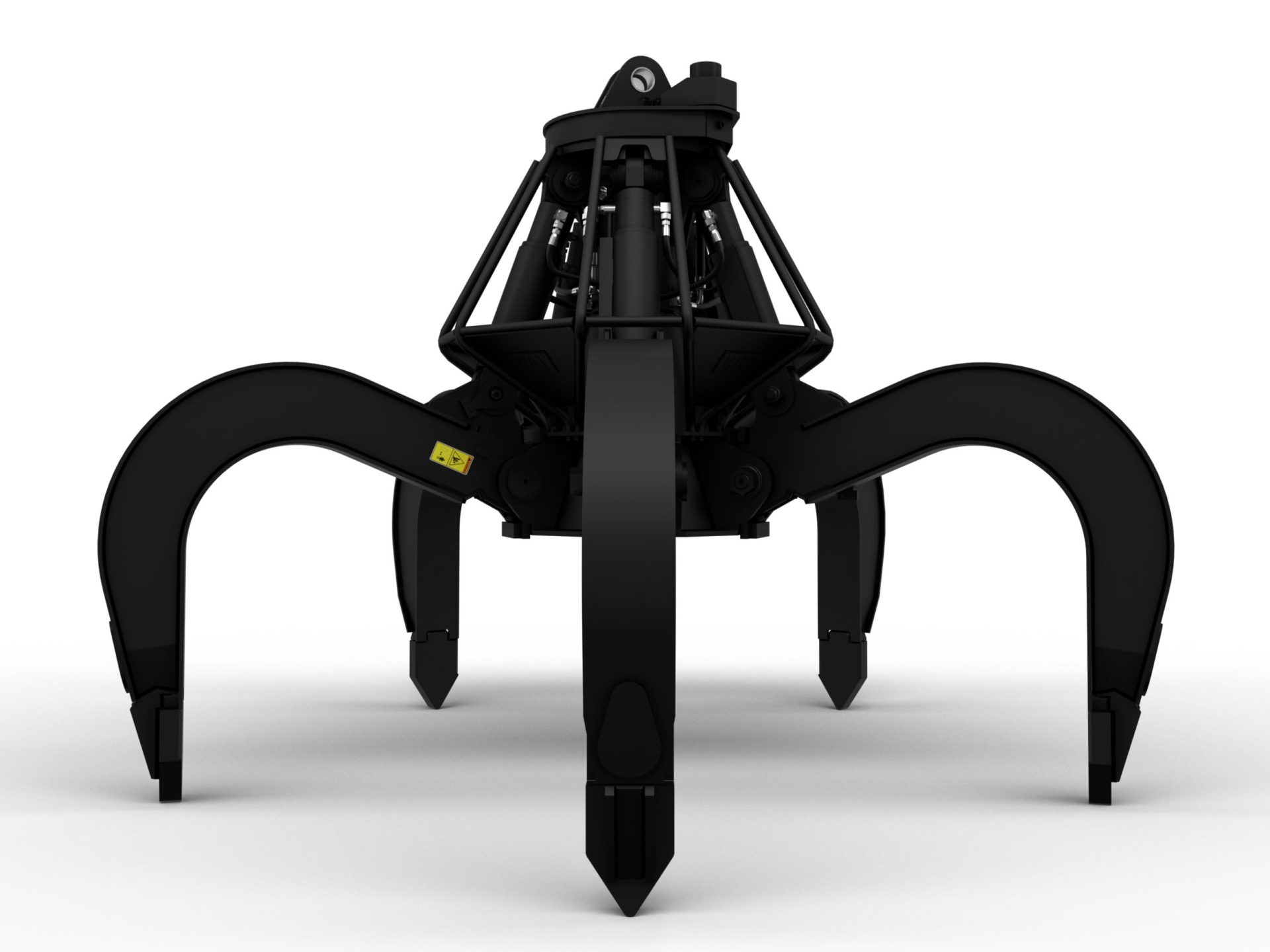

GSM60 5-Tine, 3750-Liter Orange Peel Grapple
Cat® GSM Orange Peel Grapples include our largest models and sizes for a wide range of applications. With these large capacities, GSM Grapples allow you to move more while spending less.
Capacity
4.90 yd³
Maximum Lift Capacity
Open, Semi-open lb
Shell Type Options
Open, Semi-open
Specifications
Capacity
4.90 yd³
Maximum Lift Capacity
44092 lb
Shell Type Options
Open, Semi-open
Operating Weight
11155 lb
Tine Count
5
Material Handler Minimum
65 ton (US)
Material Handler Maximum
90 ton (US)
Excavator Minimum
40 ton (US)
Excavator Maximum
65 ton (US)
Features
High Performance with Less Fuel Comsumption
- Move more tons per hour with faster cycle times and larger fill factors.
- Cat Machines are pre-programmed with optimum performance settings for your grapple to maximize the pairing and efficiency of the machine and grapple.
Long and Lasting Quality
- Grapple life is prolonged because of high quality cylinders cushioning the opening of the shells.
- Strength you can count on. Solid construction inner tines and tips are built of high grade steel, resisting abrasion and metal-on-metal wear.
- Integral pivot points are equipped with dust seals to protect some of the most vital parts of the grapple.
- Easy access to the hydraulics makes maintenance quicker, so more time can be spent moving materials.
- Meet your specific needs with open, semi-open, or closed tine style options.
- Open tines are best suited for large materials or scrap pieces.
- Semi-open tines work best for applications where steel scrap or pipes and beams are being moved.
- Closed tines are optimal for smaller, shredded materials.
Easy Maintenance
Options for Your Specific Applications
Why choose RIMCO Barbados
Quality
Machines are built with quality and durability to help you build a better, more sustainable world.
Exceptional Service
Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.
All Emcompassing
Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.
Experienced
Trusted advisors to help you find and choose the right equipment.
SUPPORTED EQUIPMENT
374 – Tier 3 Large Excavators
Net Power – ISO 9249
358 kW
Operating Weight
73 890 kg
Maximum Digging Depth
7660 mm
