Description

Contractors’ Grapples Attachments

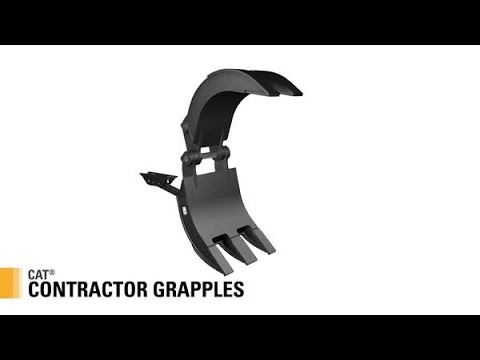

G120 B-Linkage Contractors’ Grapple
Cat® Contractors’ Grapples are a proven product built for your high-volume material handling needs. Designed for long-lasting durability, Contractors’ Grapples are made to help you in the toughest of applications.
Machine Class
19-23 Ton Excavators
Weight
105.8 lb
Jaw Opening
105.8 in
Specifications
Machine Class
19-23 Ton Excavators
Weight
3350 lb
Jaw Opening
105.8 in
Inner Wrapper Thickness
0.6 in
Outer Wrapper Thickness
0.5 in
Wear Plate Thickness
0.8 in
Upper Jaw Tine Count
2
Lower Jaw Tine Count
3
Linkage
B
Features
Strong and Durable
- Wide surface area for demolition and material handling applications with a rigid, box-type design.
- Penetrate, securely grasp, and retain materials better with two-over-three interlocking tines.
- Keep an eye on your work with long, wide-spaced tines for better visibility.
- Tips, wrapper, and wear strips are made of AR400 steel, for long-lasting, durability in the harshest applications.
Increase Productivity
- Debris loads and unloads seamlessly without catching due to the tips mounted flush with the wrapper.
- Optimize material flow and penetration into piles with less curvature in the lower jaw.
- Maintain high-volume production when using the grapple pinned to the machine or with a Pin Grabber Coupler.
- Purpose-designed to match their respective machine sizes for maximum performance in break out and lift capacity.
- Share your grapple across similar-sized excavators for maximum utilization with the use of replaceable pins to match different linkages.
- Capacities calculated according to SAE standard J2754, an industry-leading standard for fabricated grapples.
- Optimal for applications such as: structural demolition, material handling and sorting, loading and unloading rock, scrap, pipe, waste material, and other debris.
Easy to Maintain
- No need for added hydraulics or hoses. Contractors’ Grapples utilize the bucket linkages for operation.
- Long-lasting, field-serviceable tips have extended service life without extra weight.
- Jaws stay connected when the grapple pin is removed with the advanced modular pin hub system.
- Field-install an extreme duty wear package for extra protection on your grapple.
Why choose RIMCO Barbados

Quality
Machines are built with quality and durability to help you build a better, more sustainable world.
Exceptional Service
Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.
All Emcompassing
Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.
Experienced
Trusted advisors to help you find and choose the right equipment.
SUPPORTED EQUIPMENT
320 – Tier 3 Medium Excavators
Net Power – ISO 9249
117 kW
Operating Weight
21300 kg
Maximum Digging Depth
6720 mm
323 – Tier 3 Medium Excavators
Net Power – ISO 9249
117 kW
Operating Weight
22900 kg
Maximum Digging Depth
6730 mm
M320 Wheel Excavators
Engine Power – ISO 14396:2002
128.8 kW
Operating Weight Maximum
19500 kg
Maximum Travel Speed
37 km/h
M320D2 Wheel Excavators
Engine Model
Cat C7.1
Net Power
124 kW
Maximum Travel Speed
37 km/h
