S Type Couplers Attachments

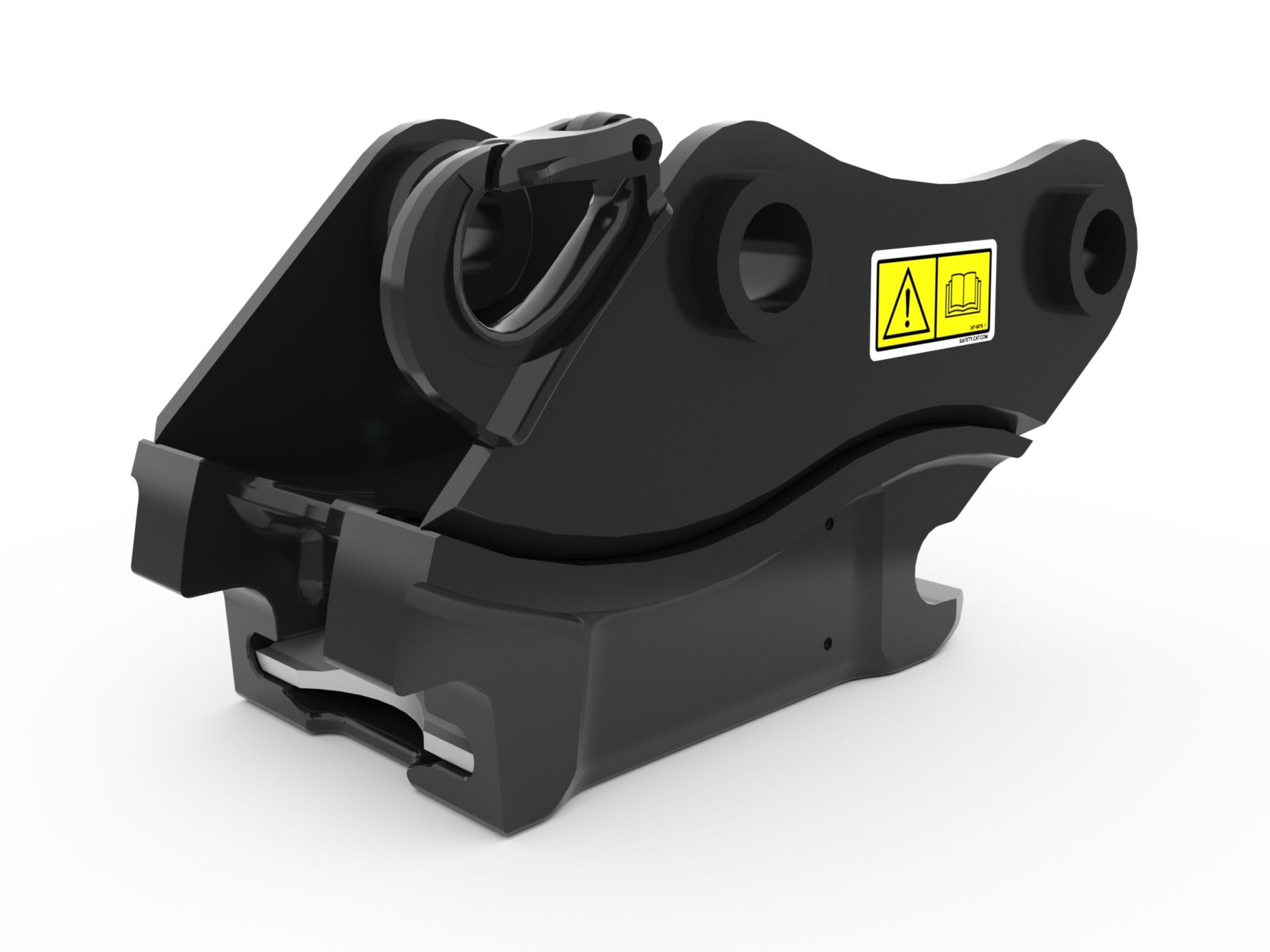

S-40 Pin Grabber LCS 5-6 Ton Mini Excavators

The S Type Coupler is a pin grabber style dedicated coupler. It ensures an exchangeability of tools within a fleet of machines with different platforms. Consistent tight fit to attachment, low offset, and reliability are the key features.


Weight

108 lb

Lifting Hook Capacity

11.1 lb

Width

11.1 in

Photos Video

Full Specifications

Specifications

Weight

108 lb

Lifting Hook Capacity

4409.2 lb

Width

11.1 in

Overall Length

19.5 in

Overall Height

10.7 in

Pin Diameter

1.8 in

Machine Class

5-6 Ton Mini Excavators

Interface Type

Pin On

Required Hydraulics

Dedicated Factory Installed

Maximum Operating Pressure

4351.1 psi

Coupler Type

S-40 Pin Grabber

Features

Hydraulic Cylinder Lock

Hydraulic cylinder with check, relief and pressure control valve included. Locking Control System (LCS) incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation Mini Hydraulic Excavator machine’s (ECM) by way of an electrical harness.



Locking Indicator

The visual verification rod allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.



Lifting Hook

Integrated lifting hook allows the operator to switch tasks to lifting without changing tools or coupler.



Low Profile/Build Height

Low build height quick coupler with minimal offset results in minimal break out force reduction.



Protected Components

All components integrated inside the coupler housing and protected against contaminants and potential force impact.



Wedge Type Locking Mechanism

Wedge type locking mechanism minimizes impact loading into the hydraulic cylinder.



Locking Control System

Locking Control System (LCS) incorporates cylinder positioning sensing and provides electrical feedback to the machine which requires Cat® software to display locking system status.



Why choose RIMCO Barbados

Rimco Barbados

Quality

Machines are built with quality and durability to help you build a better, more sustainable world.

Exceptional Service

Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.

All Emcompassing

Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.

Experienced

Trusted advisors to help you find and choose the right equipment.

SUPPORTED EQUIPMENT


LIST OF SUPPORTED EQUIPMENT

305 CR Mini Excavators
