Description
S Type Couplers Attachments

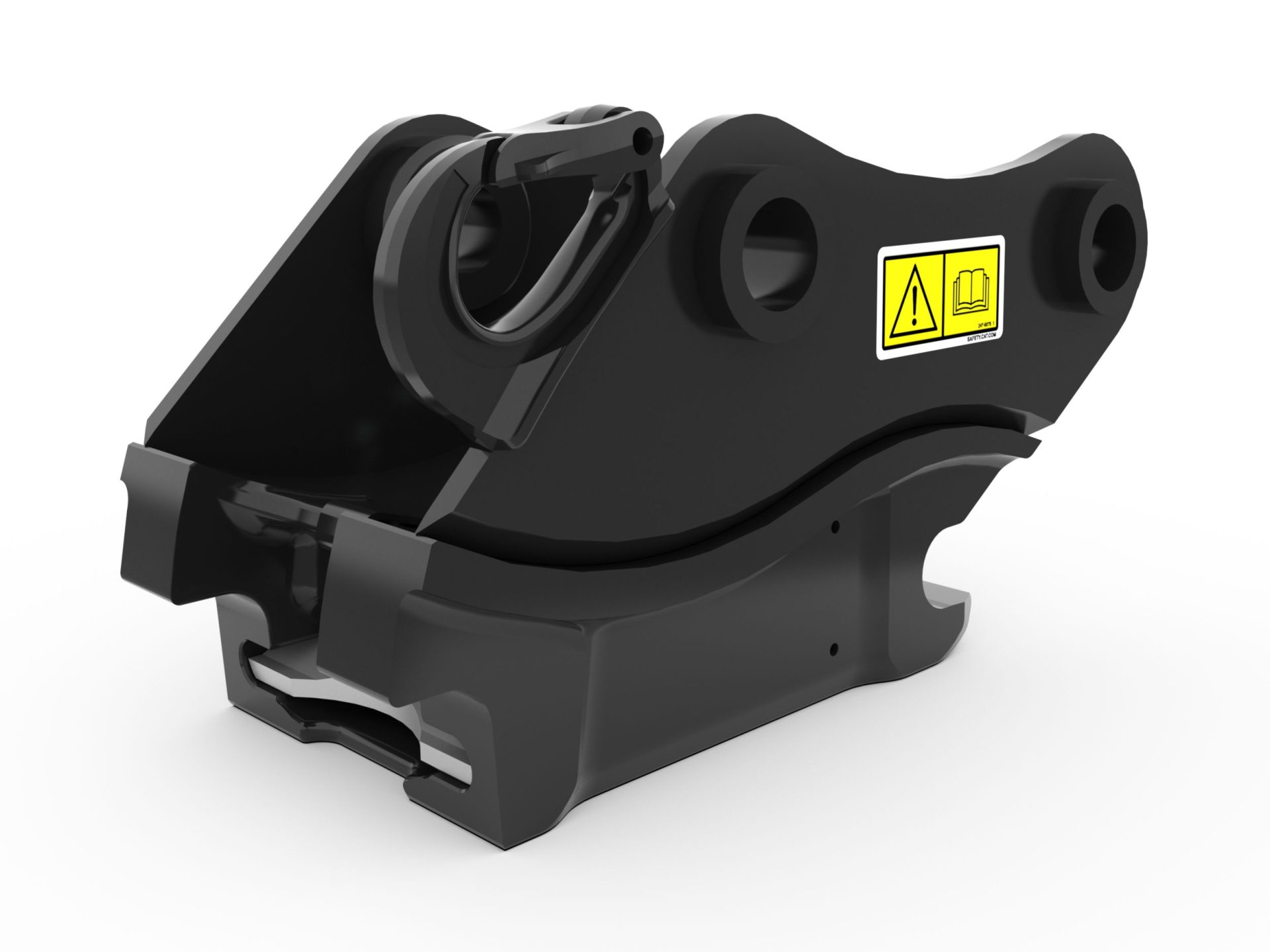

S-40 Pin Grabber 5-6 Ton Mini Excavators
The S Type Coupler is a pin grabber style dedicated coupler. It ensures an exchangeability of tools within a fleet of machines with different platforms. Consistent tight fit to attachment, low offset, and reliability are the key features.
Weight
105.8 lb
Lifting Hook Capacity
11.1 lb
Width
11.1 in
Specifications
Weight
105.8 lb
Lifting Hook Capacity
4409.2 lb
Width
11.1 in
Overall Length
19.5 in
Overall Height
10.7 in
Pin Diameter
1.8 in
Machine Class
5-6 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Maximum Operating Pressure
4351.1 psi
Coupler Type
S-40 Pin Grabber
Features
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Locking Indicator
The visual verification rod allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Lifting Hook
Integrated lifting hook allows the operator to switch tasks to lifting without changing tools or coupler.
Low Profile/Build Height
Low build height quick coupler with minimal offset results in minimal break out force reduction.
Protected Components
All components integrated inside the coupler housing and protected against contaminants and potential force impact.
Wedge Type Locking Mechanism
Wedge type locking mechanism minimizes impact loading into the hydraulic cylinder.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
305 CR – Tier 3 Mini Excavators
Net Power
27.2 kW
Operating Weight
5695 kg
Dig Depth
3670 mm
