Description

GC Hammers Attachments

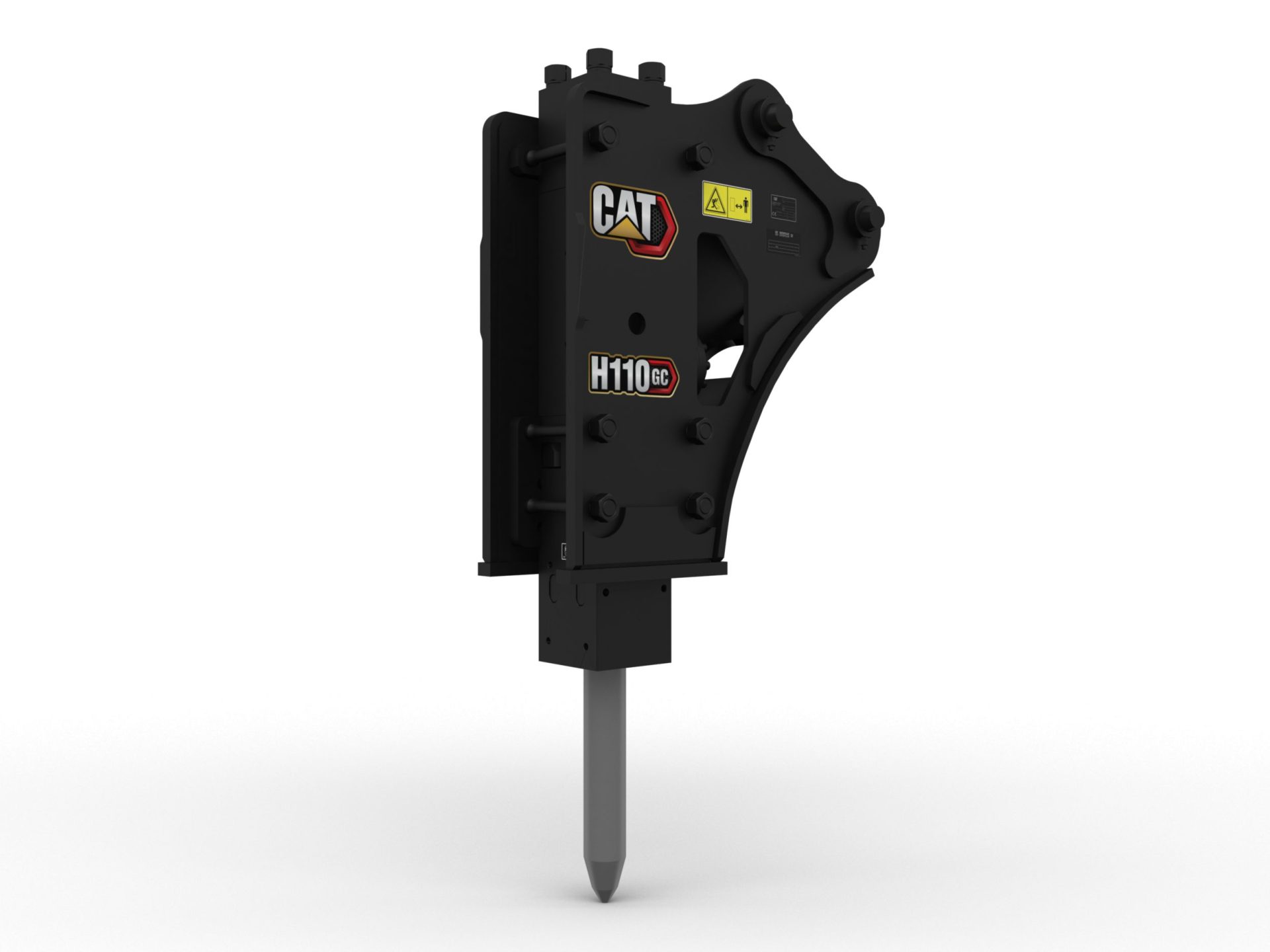

H110 GC, side mount
Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.
Impact Energy Class
1475 ft·lbf
Blows per Minute
1910
Minimum Operating Weight
1910 lb
Specifications
Impact Energy Class
1475 ft·lbf
Blows per Minute
450-650
Minimum Operating Weight
1910 lb
Maximum Operating Weight
1909.6 lb
Minimum Rated Flow
21 gal/min
Maximum Rated Flow
26 gal/min
Minimum Operating Pressure
2,030 psi
Maximum Operating Pressure
2,320 psi
Tool Shaft Diameter
2.83 in
Rated Flow - Maximum
26 gal/min
Maximum Carrier Weight
35,274 lb
Features
Reliable and Durable Design
- Cat® Hammers use up to 25 percent less fuel and are up to 27 percent more efficient.
- Enjoy fast service times and lower owning and operating costs with the simplified design.
- Choose between top and side mount options to match your application.
- Achieve consistent power and production over time with the gas fired design.
- Cat®Hammers are designed to work with our machines, as a total solution, and provide seamless hydraulic connectivity for maximum performance.
Easy to Maintain
- Achieve up to 18 percent lower maintenance costs with Cat® Hammers.
- Easy and quick access to maintenance areas ensures the hammer always operates at its peak.
- Spend more time working and less time servicing.
- Greasing can be performed quickly from one standing-height grease point.
- Service the lower bushing in the field using simple hand tools.
- Verify the gas charge of the hammer without removing it from your machine.
- All breakers are tested in accordance with ISO Quality Control System before delivery.
Easy to Operate
- Operator feel, and control is improved with an interlocking quad wear system which guides and supports the front head.
- Select between high blow frequency and maximum power to get the performance you need to suit your application.
- Easily adjust the piston stroke between piston frequency and more impact power positions to match application requirements.
You Are Supported
- Go where the job takes you. The Cat® Dealer Network is there to help when you need it.
- Rely on Caterpillar for complete system support. Receive parts, service, and technical assistance for your machine, hammer, and hydraulics from a single source.
Why choose RIMCO Barbados

Quality
Machines are built with quality and durability to help you build a better, more sustainable world.
Exceptional Service
Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.
All Emcompassing
Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.
Experienced
Trusted advisors to help you find and choose the right equipment.
SUPPORTED EQUIPMENT
313 GC – Tier 3 Small Excavators
Net Power – ISO 9249
70.6 kW
Operating Weight
12400 kg
Maximum Digging Depth
5570 mm
M315 GC
Engine Model
Cat® C4.4
Gross Power
148 HP
Powershift Transmission
0.8 gal (US)
