Description
Contractors’ Grapples Attachments

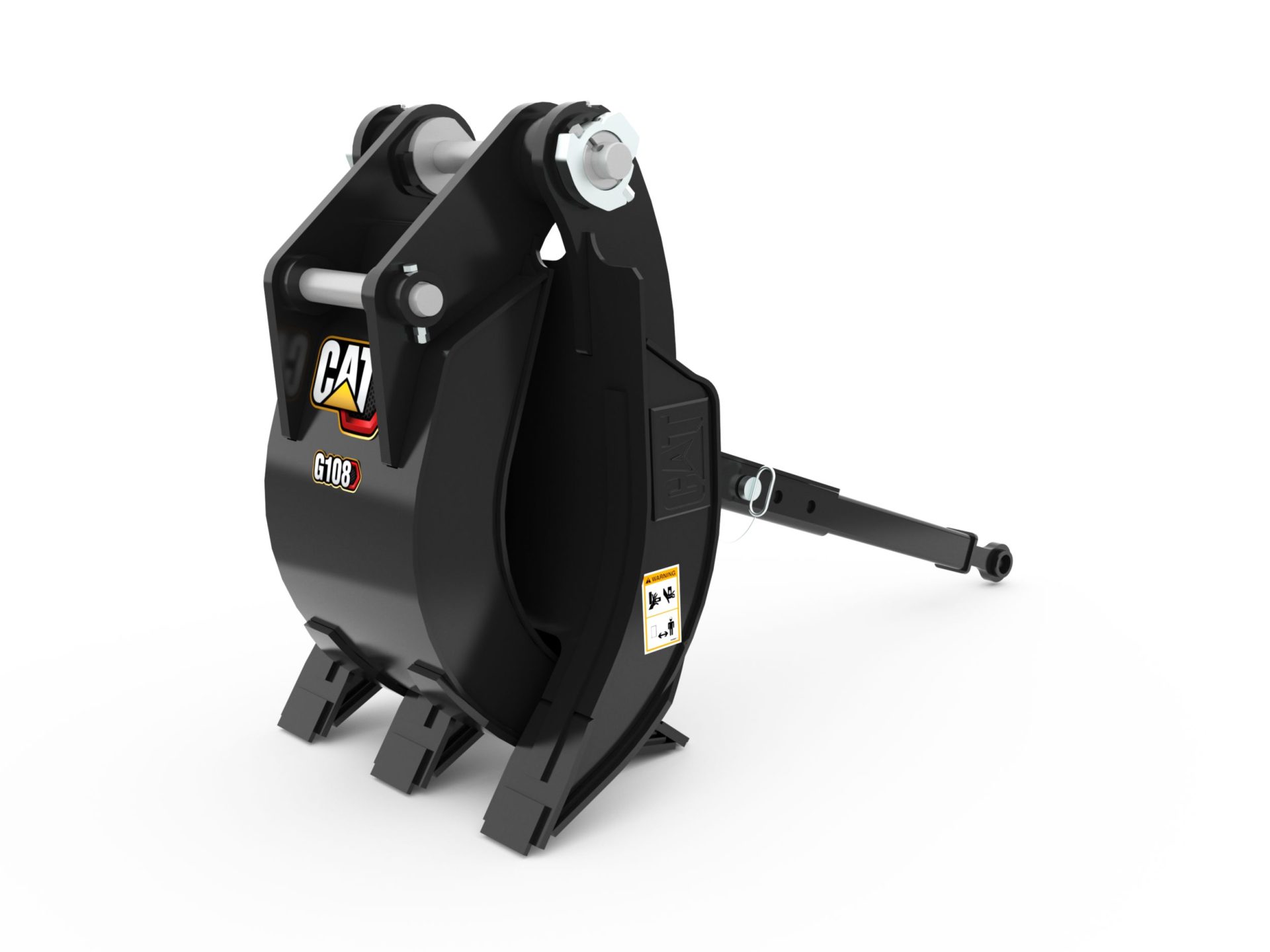

G108 Stiff link
Contractors’ Grapples are a proven product built for your high-volume material handling needs.
Machine Class
7-9 Ton Mini Excavators
Jaw Opening
815.7 in
Weight
815.7 lb
Specifications
Machine Class
7-9 Ton Mini Excavators
Jaw Opening
69.5 in
Weight
815.7 lb
Overall Width
28.9 in
Upper Jaw Width
17.1 in
Wear Plate Thickness
0.3 in
Number of Adjustments
3
Length Between Adjustments
7.6 in
Interface Type
Pin On
Inner Wrapper Thickness
0.3 in
Outer Wrapper Thickness
0.3 in
Upper Jaw Tine Count
2
Lower Jaw Tine Count
3
Features
Application
The Cat® Contractor Grapple is used in demolition at sites as well as waste and recycling industries for material handling in a more efficient way.
Easy to Install Stiff Link
Updated from the previous version, the G108 now uses the same fixing point as the current thumbs, so no more weld and paint job needed to install.
Adjustable Link Position
The stiff link can be manually adjusted in three different positions by repositioning the pin position. No special tools required.
Standard Wear Plates
Wear plates are now part of the standard G108, providing longer life and better grapple resistance against abrasive material. Standard wear plates have been added to both jaws.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
307.5 – Tier 3 Mini Excavators
Net Power
34.9 kW
Operating Weight
8233 kg
Dig Depth
4649 mm
308 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9105 kg
Dig Depth
4643 mm
308 CR VAB Mini Excavators
Net Power
51.8 kW
Operating Weight
9245 kg
Dig Depth
3815 mm
309 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9565 kg
Dig Depth
4642 mm
309 CR VAB (Long Undercarriage) Mini Excavators
Net Power
51.8 kW
Operating Weight
9740 kg
Dig Depth
3815 mm
