Description
CW Series Couplers Attachments

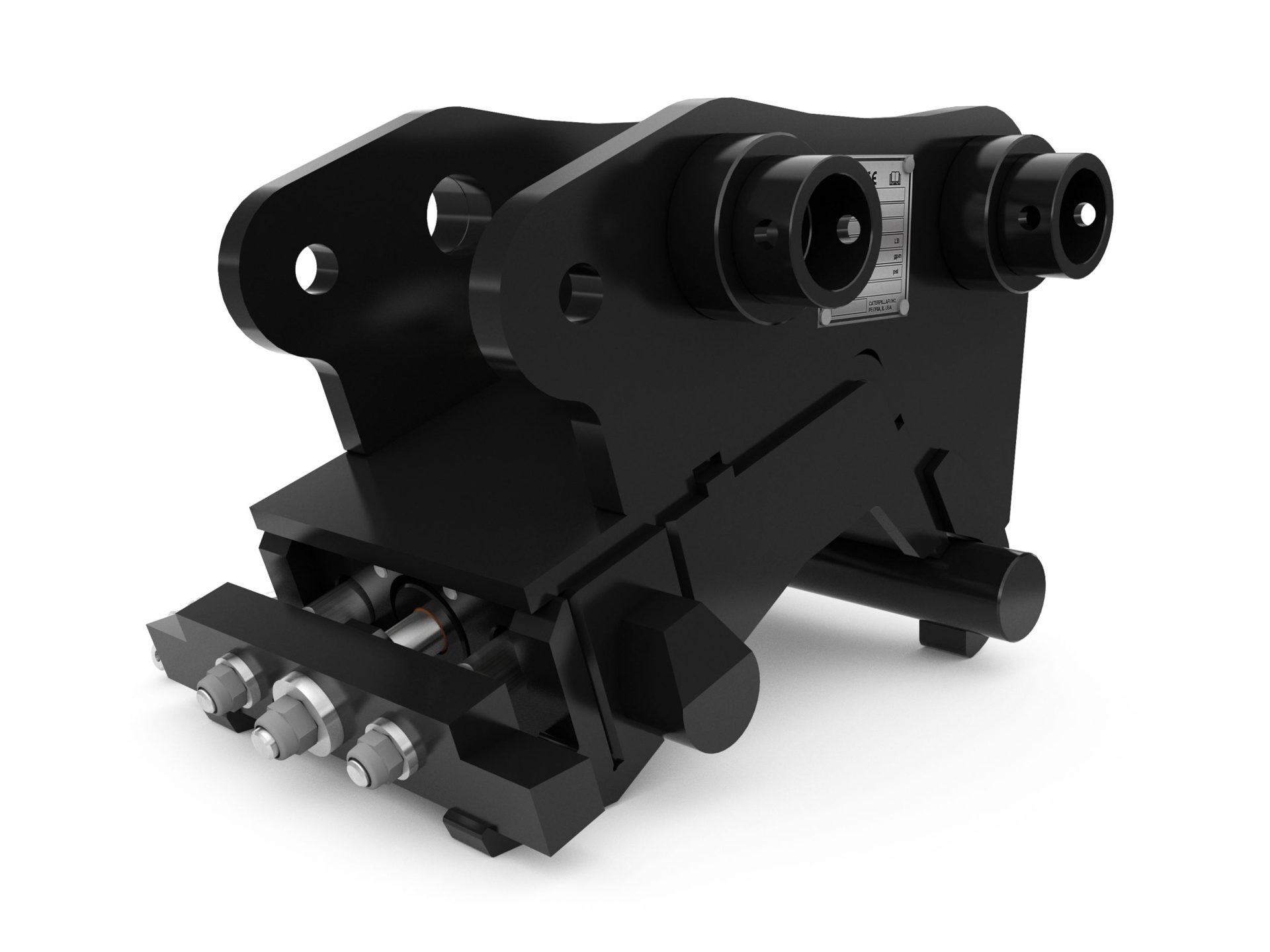

CW-05 Hydraulic 2 Ton Mini Excavators
Quick couplers make work tool attachment changes simple and increase the utilization of an excavator.
Weight
66.1 lb
Overall Width
2 Ton Mini Excavators in
Machine Class
2 Ton Mini Excavators
Specifications
Weight
66.1 lb
Overall Width
9.8 in
Machine Class
2 Ton Mini Excavators
Overall Height
9.6 in
Overall Length
17.4 in
Pin Diameter
1.4 in
Lifting Hook Capacity
1322.8 lb
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Features
Application
CW style coupler covers a certain range of Mini Hydraulic Excavator (MHE) buckets that have different pin sizes. This provides a huge advantage for customers who have different size MHE models and need the flexibility of using one bucket among multiple machines.
Wedge Style Coupler
Wedge style coupler has a rattle-free design ensuring a tight fit between coupler and attachment.
Hook On Front Axle
Hook on front axle is a safe procedure to attach and disconnect tools to the quick coupler and provides an additional safety feature against unwanted disengaging of the tool.
Spindle Style Locking Mechanism
Spindle style locking mechanism with locking nut is easy to operate with a standard wrench. Locking nut prevents unwanted disengaging.
Retention Springs
Retention springs hold locking spindle and retain attachment in the unlikely event of hydraulic failure (hydraulic couplers only).
Optional Lifting Hook
Optional lifting hook is an alternative to the lifting eye on machine linkage.
