Description

Vibratory Plate Compactors Attachments

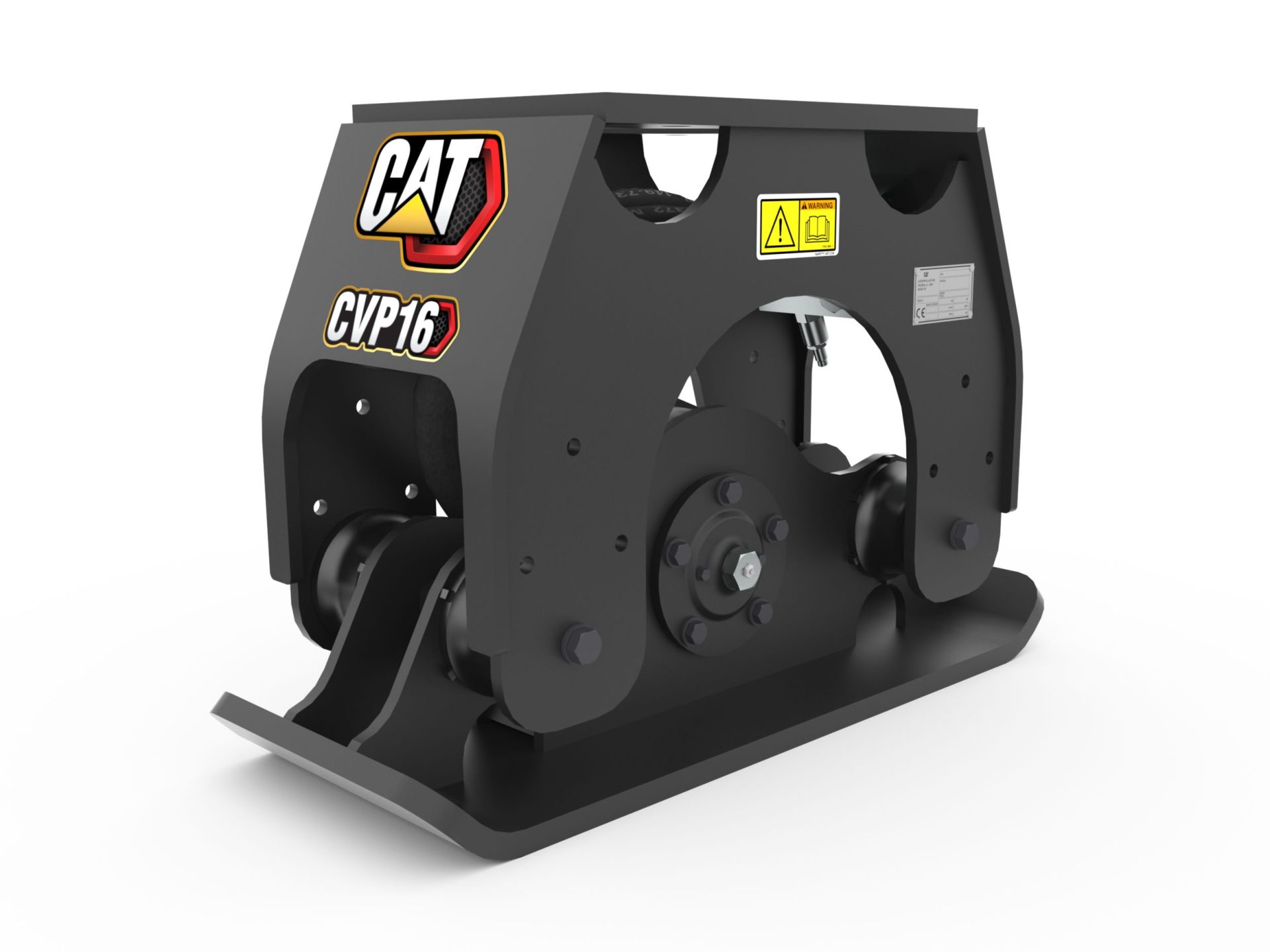

CVP16
Vibratory action and dynamic force provides excellent compaction in a compact size.
Impulse Force
3641.91 lb
Impact Frequency
12
Base Plate Width
12 in
Specifications
Impulse Force
3641.91 lb
Impact Frequency
2200 bpm
Base Plate Width
12 in
Compaction Area
2 ft²
Base Plate Pressure
12.8 psi
Base Plate Length
24 in
Optimal Hydraulic Flow
10 gal/min
Minimum Operating Pressure
1599.8 psi
Weight
476.2 lb
Features
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Performance-Matched
Cat® Compactors are performance-matched to Cat machines and integrate closely with the Cat Hammer line. Brackets and hydraulic kits are interchangeable between hammers and compactors. Compactors can be used with Pin Grabber Couplers, Dedicated Hydraulic Couplers or Pin Lock Couplers.
Protected Hydraulics
Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way — even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug and can be changed while the compactor is installed.
Optional Backfill Blade
An optional bolt-on backfill blade can be mounted on both front and back of the compactor.
Why choose RIMCO Barbados

Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
302.7 CR Mini Excavators
Net Power
17.6 kW
Operating Weight
3050 kg
Dig Depth
2710 mm
303 CR Mini Excavators
Net Power
17.6 kW
Operating Weight
3545 kg
Dig Depth
2950 mm
303.5 CR Mini Excavators
Net Power
17.6 kW
Operating Weight
4190 kg
Dig Depth
3110 mm
304 Mini Excavators
Net Power
33.6 kW
Operating Weight
4475 kg
Dig Depth
3510 mm
305 CR – Tier 3 Mini Excavators
Net Power
27.2 kW
Operating Weight
5695 kg
Dig Depth
3670 mm
