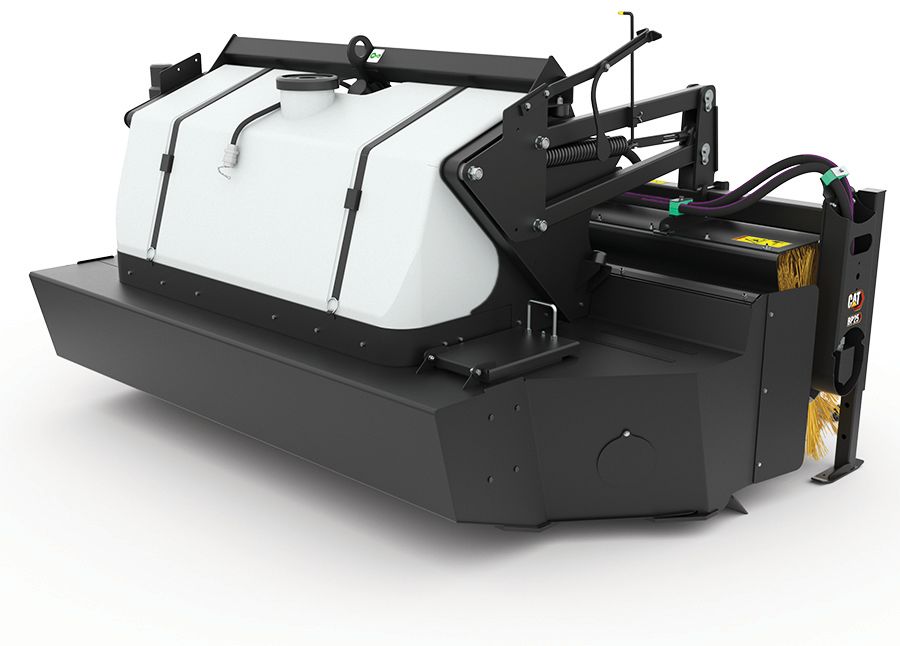

BP25 Pickup Brooms

Description

Photos Video

Documents

Cat® Brooms Product Brochure

Specifications

Overall Width

78.3 in

Sweeping Width

60 in

Brush Diameter

26 in

Required Hydraulics

3rd Function

Height

34.3 in

Length

72.3 in

Weight

1159.6 lb

Required Hydraulic Flow

40-150 L/min (11-40 gpm)

Optimal Hydraulic Pressure

150-260 bar (2176-3771 psi)

Motor Displacement

24.7 in³/rev

Brush Speed at Maximum Flow

385 RPM

Hopper Capacity

0.5 yd³

Gutter Brush Weight

90.4 lb

Voltage

12V and 24V

Drive Method

Direct Drive

Interface Type

Requires Hook Group

Features

Protected Hydraulic Motors

The BP22 is powered by one hydraulic motor, the BP25 is powered by two hydraulic motors. Each motor is mounted to protect them from damage.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Unique Suspension System

Pickup Brooms incorporate a unique suspension system to eliminate the need for support wheels. This allows the broom to float freely over the work surface and ensures proper bristle contact from the initial setting.

Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Large Hopper

Pickup Brooms include a large hopper for greater productivity and easy removal and emptying.

Integrated Water Tank

The BP22 and BP25 both feature a 400 L (106 gallons) capacity integrated water tank.

Water Sprinkler Kit

Water sprinkler kit helps reduce the amount of airborne dust during sweeping operations.

Tool Mounted OMM Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Full Set of Polypropylene Bristles

Cat® Pickup Brooms come standard with replaceable polypropylene sections. Convoluted bristle sections can be converted to all wire or 50/50 poly and wire for special applications.
