Description

Hammers Attachments

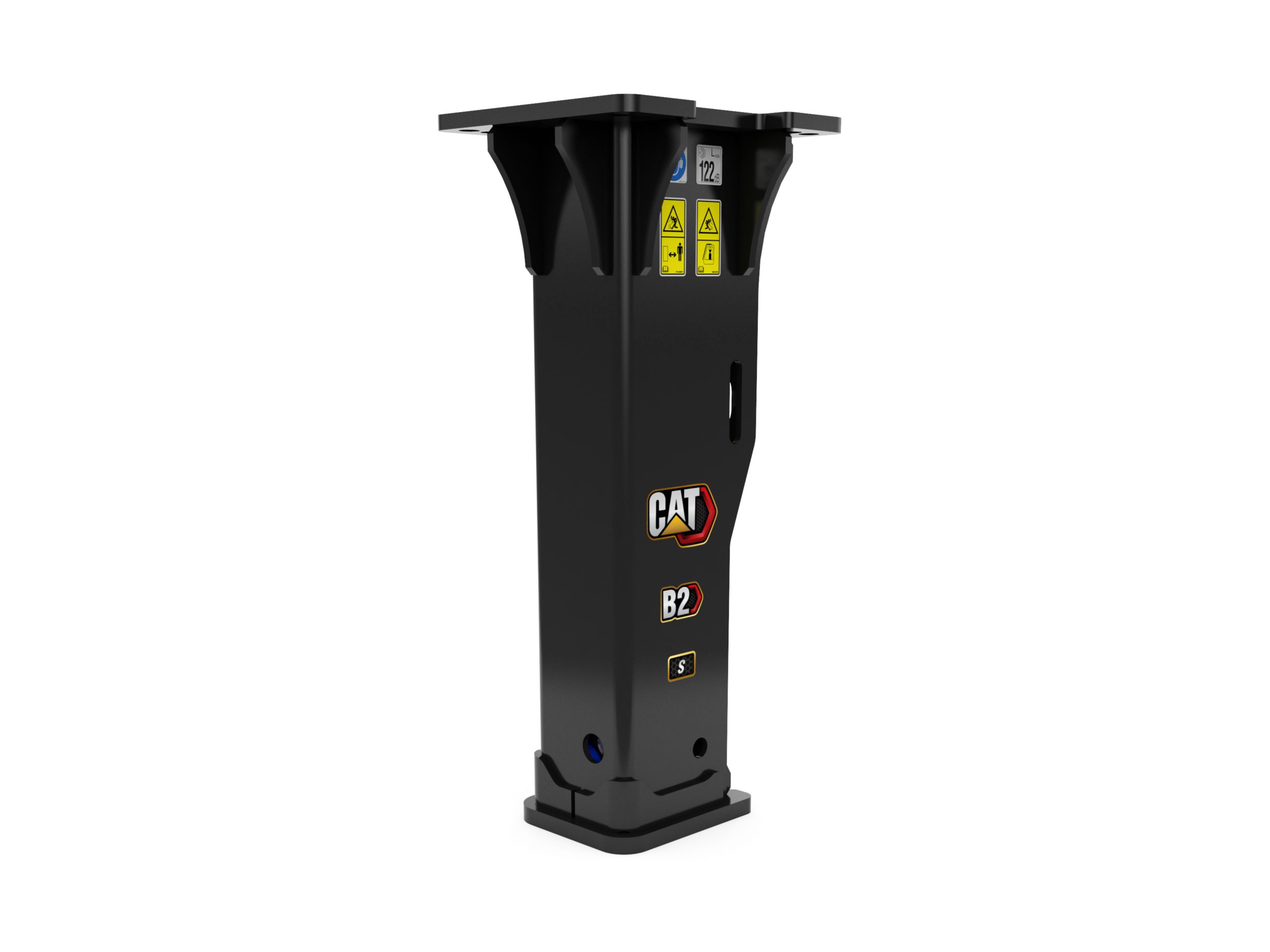

B2s
Used for demolition and construction applications.
Operating Weight – With Tool
257.5 lb
Energy Class
1-3 Ton Mini Excavators ft·lbf
Machine Class
1-3 Ton Mini Excavators
Specifications
Operating Weight - With Tool
257.5 lb
Energy Class
213.9 ft·lbf
Machine Class
1-3 Ton Mini Excavators
Tool Shaft Diameter
1.8 in
Impact Frequency
700-1200 bpm
Minimum Operating Pressure
1276 psi
Minimum Carrier Weight
3300.3 lb
Optimal Hydraulic Flow
20-30 lpm (5.3-7.9 gpm)
Overall Width
11.8 in
Overall Length
13.4 in
Overall Height
43 in
Height - Without Tool
31.3 in
Sound Level
122 dB
Mounting Bracket Size
Small-Medium
Features
Application
Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications – such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.
Ergonomically Positioned Hydraulic Lines
Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker’s condition.
Gas Fired Design
Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.
Flat Top/Top-Mount Style
Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.
Slip Fit Bushings
Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.
Included with Each B Series Hammer
Every B Series Hammer comes with:
- Tool Kit w/Storage Box
- 2 Tools (1 x Conical and 1 x Transverse Chisel)
- Maintenance Kit
Why choose RIMCO Barbados

Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
1 Ton Mounting Bracket – Pin On Brackets
Interface Type
Pin On
Weight
55.1 lb
Overall Width
11.8 in
2 Ton Mounting Bracket – Pin On Brackets
Interface Type
Pin On
Weight
75 lb
Overall Width
11.8 in
3 Ton Mounting Bracket – Pin On Brackets

Interface Type
Pin On
Weight
114.6 lb
Overall Width
11.8 in
3 Ton Mounting Bracket – Pin On Brackets

Interface Type
Pin On
Weight
132.3 lb
Overall Width
12.4 in
301.5 Mini Excavators

Net Power
15.7 kW
Operating Weight
1775 kg
Dig Depth
2540 mm
301.7 CR Mini Excavators

Net Power
15.7 kW
Operating Weight
1915 kg
Dig Depth
2540 mm
301.8 Mini Excavators

Net Power
15.7 kW
Operating Weight
2029 kg
Dig Depth
2570 mm
302 CR Mini Excavators

Net Power
15.7 kW
Operating Weight
2262 kg
Dig Depth
2570 mm
302.7 CR Mini Excavators

Net Power
17.6 kW
Operating Weight
3050 kg
Dig Depth
2710 mm
303 CR Mini Excavators

Net Power
17.6 kW
Operating Weight
3545 kg
Dig Depth
2950 mm
Hammer Lines for 1 Ton Mini Excavators Lines

Overall Length
54.5 in
Weight
6.4 lb
Hose Guard Type
Cloth Sheathing
Hammer Lines for 2 Ton Mini Excavators Lines

Overall Length
54.5 in
Weight
7.2 lb
Hose Guard Type
Cloth Sheathing
Hammer Lines for 3 Ton Mini Excavators Lines

Overall Length
63 in
Weight
9.1 lb
Hose Guard Type
Cloth Sheathing
LIST OF SUPPORTED EQUIPMENT
Hammer Lines for 1 Ton Mini Excavators Lines
Hammer Lines for 2 Ton Mini Excavators Lines
Hammer Lines for 3 Ton Mini Excavators Lines
2 Ton Mounting Bracket – Pin On Brackets
3 Ton Mounting Bracket – Pin On Brackets
1 Ton Mounting Bracket – Pin On Brackets
3 Ton Mounting Bracket – Pin On Brackets
302.7 CR Mini Excavators
303 CR Mini Excavators
301.7 CR Mini Excavators
301.5 Mini Excavators
302 CR Mini Excavators
301.8 Mini Excavators
