Description

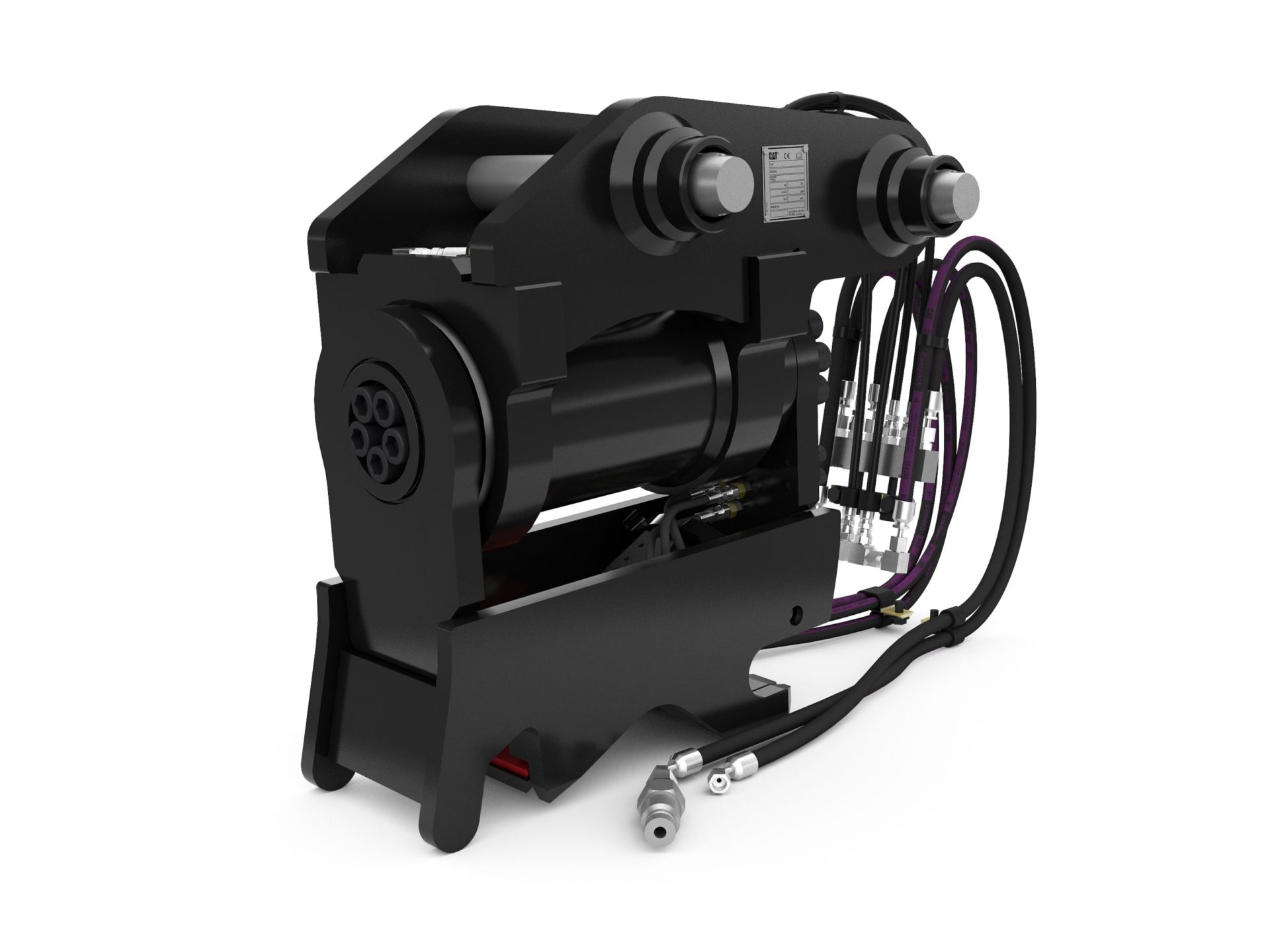

Tilting Dual Lock™ Pin Grabber Couplers – Mini Excavator Attachments
8 Ton Mini Excavators Tilting Dual Lock Pin Grabber
Provides increased productivity and cost saving benefits to customers. Operators have the ability to tilt compatible work tools for more efficient jobsite versatility and productivity.
Weight
448.2 lb
Overall Width
24.5 in
Length
24.5 in
Specifications
Weight
448.2 lb
Overall Width
14.6 in
Length
24.5 in
Overall Height
23.7 in
Drive Method
Helical Rotary Actuator
Hydraulic Flow
19-26.5 lpm (5-7 gpm)
Hydraulic Pressure - Actuator
3002.3 psi
Hydraulic Pressure - Coupler
4641.2 psi
Pin Diameter
2 in
Machine Class
8 Ton Mini Excavators
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range +/-
180 degrees
Features
Why choose RIMCO Barbados

Quality
Machines are built with quality and durability to help you build a better, more sustainable world.
Exceptional Service
Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.
All Emcompassing
Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.
Experienced
Trusted advisors to help you find and choose the right equipment.
SUPPORTED EQUIPMENT
307.5 – Tier 3 Mini Excavators
Net Power
34.9 kW
Operating Weight
8233 kg
Dig Depth
4649 mm
308 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9105 kg
Dig Depth
4643 mm
308 CR VAB Mini Excavators
Net Power
51.8 kW
Operating Weight
9245 kg
Dig Depth
3815 mm
309 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9565 kg
Dig Depth
4642 mm
309 CR VAB (Long Undercarriage) Mini Excavators
Net Power
51.8 kW
Operating Weight
9740 kg
Dig Depth
3815 mm
