Description

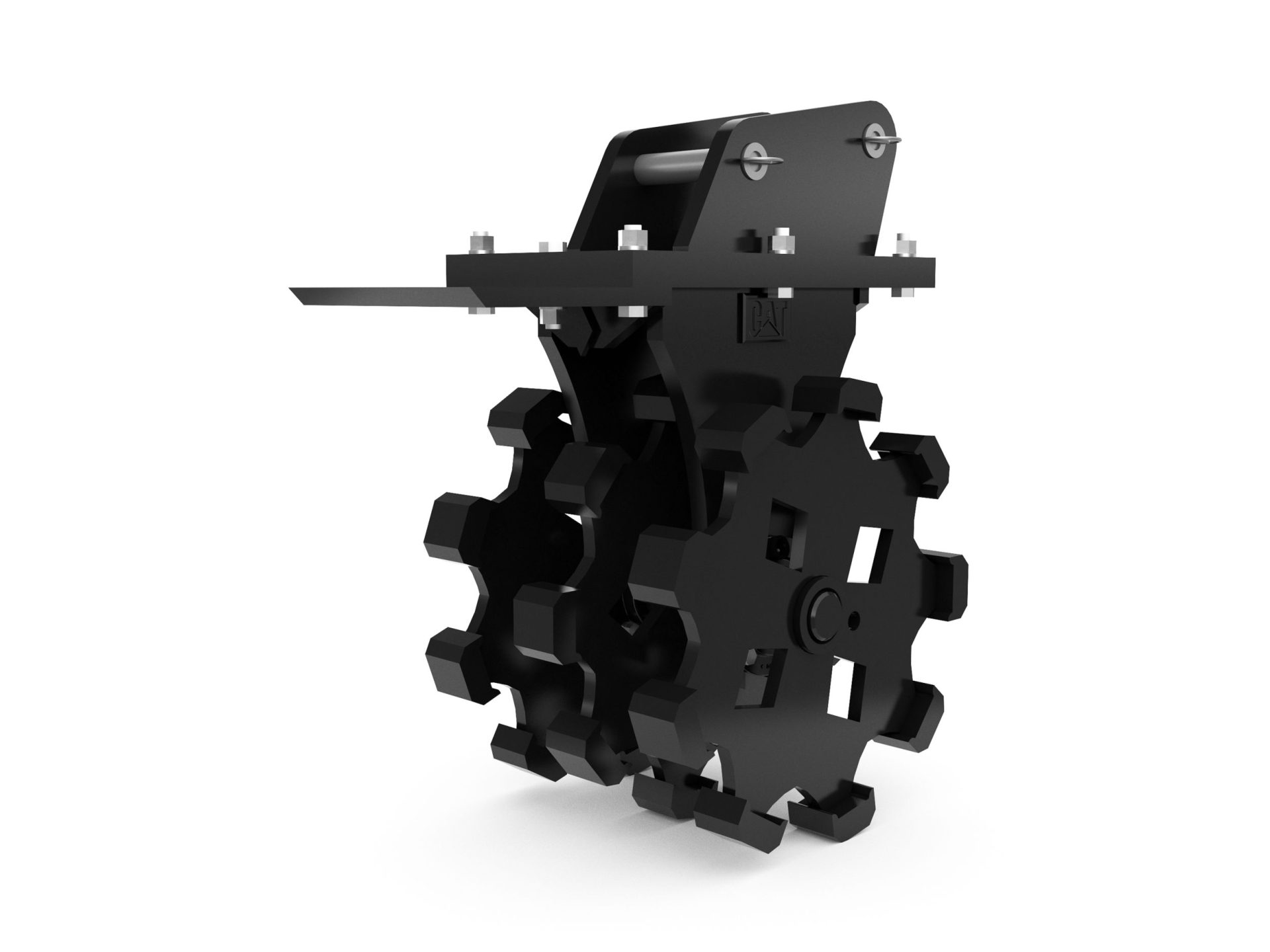

Compaction Wheels Attachments
610 mm (24 in) 7-8 Ton, Pin On
When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.
Compaction Width
21.9 in
Number of Wheels
7-8 Ton Mini Excavators
Machine Class
7-8 Ton Mini Excavators
Specifications
Compaction Width
21.9 in
Number of Wheels
3
Machine Class
7-8 Ton Mini Excavators
Number of Pads
27
Weight
1267.7 lb
Overall Length
39.3 in
Overall Height
45.9 in
Overall Width
21.9 in
Interface Type
Pin On
Features
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
307.5 – Tier 3 Mini Excavators
Net Power
34.9 kW
Operating Weight
8233 kg
Dig Depth
4649 mm
308 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9105 kg
Dig Depth
4643 mm
308 CR VAB Mini Excavators
Net Power
51.8 kW
Operating Weight
9245 kg
Dig Depth
3815 mm
309 CR Mini Excavators
Net Power
51.8 kW
Operating Weight
9565 kg
Dig Depth
4642 mm
309 CR VAB (Long Undercarriage) Mini Excavators
Net Power
51.8 kW
Operating Weight
9740 kg
Dig Depth
3815 mm
