Description

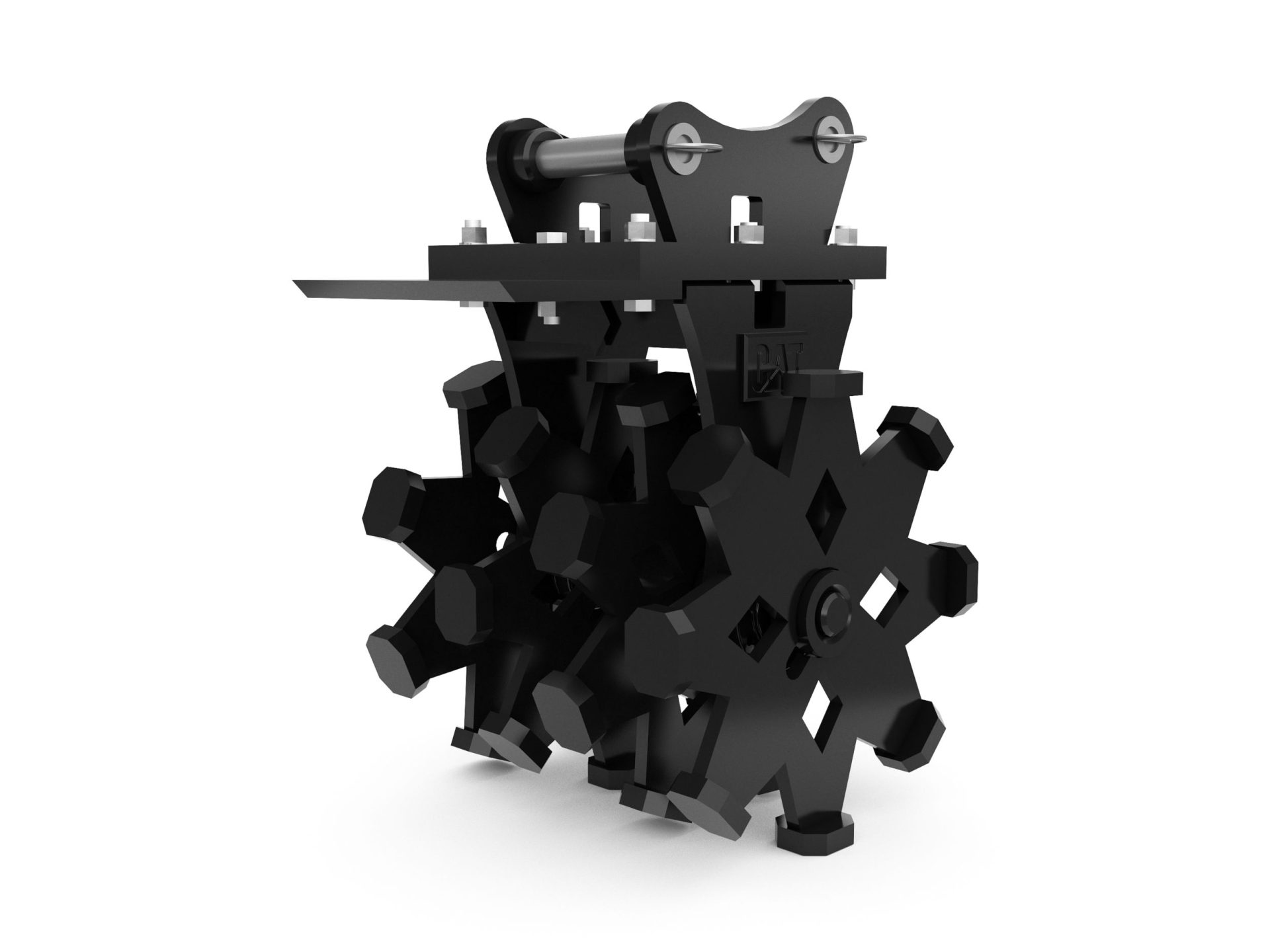

Compaction Wheels Attachments
559 mm (22 in) 5 Ton, Pin On
When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.
Compaction Width
21.8 in
Number of Wheels
5 Ton Mini Excavators
Machine Class
5 Ton Mini Excavators
Specifications
Compaction Width
21.8 in
Number of Wheels
4
Machine Class
5 Ton Mini Excavators
Number of Pads
32
Weight
601.9 lb
Overall Length
27.3 in
Overall Height
34.2 in
Overall Width
21.8 in
Interface Type
Pin On
Features
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
Why choose RIMCO Barbados
Quality
Machines are built with quality and durability to help you build a better, more sustainable world.
Exceptional Service
Expect the best and count on us with our full service and support to ensure your equipment’s performance and longevity.
All Emcompassing
Largest inventory of rental equipment that helps you achieve every step/stage/phase of your project.
Experienced
Trusted advisors to help you find and choose the right equipment.
SUPPORTED EQUIPMENT
305 CR – Tier 3 Mini Excavators
Net Power
27.2 kW
Operating Weight
5695 kg
Dig Depth
3670 mm
