D10T2 (US EPA Tier 2 Equivalent)

Specifications

Features

PERFORMANCE & EFFICIENCY

• The D10T2 is powered by the Cat C27 engine, which delivers power and reliability, ensuring top performance, high productivity and exceptional service life.
• The engine performs at full rated net power with a high torque rise of 21% (in forward gears), allowing the D10T2 to doze through tough material.
• The engine is matched with a high-efficiency torque converter and electronically controlled power-shift transmission.
• Bogie suspension allows the track to conform to ground conditions, delivering higher traction and less slippage.

OPERATOR COMFORT

• The Cat Optimized Seat has six-way adjustment control for optimal support and comfort. Seat side bolsters restrain side-to-side movement, especially when working on side slopes.
• The automatic climate control system automatically adjusts heating and air conditioning controls to maintain a consistent cab temperature throughout the day.
• Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.
• The elevated sprocket and suspended undercarriage work together, increasing traction, absorbing impact and reducing shock loads transferred to the undercarriage for a smoother, more comfortable ride.
• The D10T2 offers three options to control operator sound and spectator sound levels

SAFETY

• The tapered hood, notched fuel tank and narrow ripper carriage give the operator a clear line of sight to front and rear work areas.
• The Seat Belt Warning System reminds the operator to engage the seat belt anytime the key is on, while the Operator Not Present monitoring system locks out the powertrain and hydraulics under certain conditions.
• A factory-installed fire suppression system and several lighting package options are available.
• An optional powered access ladder and strategically placed grab handles, plus non-slip steps and decking, improve access and egress.

PRODUCTIVITY

• The Advanced Productivity Electronic Control System (APECS) is a key contributor to improved speed shift performance and quality.
• Enhanced Autoshift (EAS) improves fuel efficiency and productivity by automatically selecting the optimal gear and engine speed combination based upon powertrain load and desired ground speed.
• Bi-directional shift allows the operator, by just making a directional change, to automatically select the desired forward and reverse gears or the desired forward and reverse speeds when EAS is activated.
• A single-stage torque converter with output torque divider sends 75% of engine torque through the converter and 25% through a direct drive shaft for greater driveline efficiency, higher torque multiplication and ease of operation.

TECHNOLOGY & INNOVATION

• Product Link™ enables the remote transmission of information about the location, operation and condition of equipment.
• Automated Blade Assist (ABA) (optional) increases efficiency while reducing operator workload, making use of preset blade pitch positions for the load, carry and spread portions of cycle.
• AutoCarry™ (optional) automates blade lift to maintain desired blade load, improve load consistency and reduce track slip.
• Automatic Ripper Control (optional) automatically controls ripper height to limit track slip, reducing operator fatigue.
• Optional Cat MineStar™ Solutions include a suite of safety technologies, fleet management solutions, equipment health offerings and high-precision guidance technologies, as well as multiple levels of remote operation.

SERVICEABILITY

• The ground-level service center mounted on the ripper cylinder or counterweight provides easy access to the lighting switch and engine shutdown switch.
• Standard in the engine compartment, the high-speed oil change system allows control of fluids while increasing the speed of oil changes for both the engine and powertrain. It can be serviced at ground level.
• The fast fuel system at ground level, with positive fuel shut-off to prevent fuel spillage, can reduce fuel waste and decrease downtime.

BLADES & ATTACHMENTS

• A wide variety of Cat blades is available for the D10T2. All blades feature a strong box-section design that resists twisting and cracking. Blades are made of high tensile strength steel that stands up to the most demanding applications.
• Special application blades include coal stockpile blade, cushion dozer blade, reclamation blade and wood chip blade.

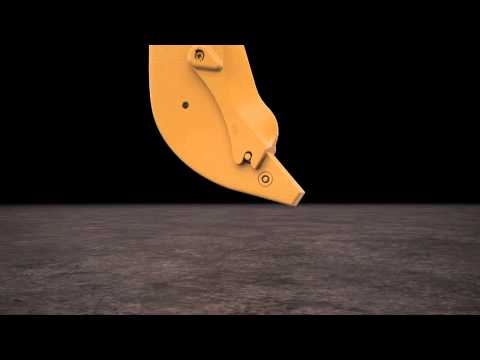

• Specialty attachments include single-shank ripper, multi-shank ripper and an optional deep-shank tooth ripper.

BUILT TO GO THE DISTANCE

• The frame is built to absorb high-impact shock loads and twisting forces encountered during severe dozing and ripping applications. The redesigned roller frames consist of three main castings to resist bending and twisting.
• Frame, powertrain and main components are built to be rebuilt — for a cost-effective second life of like-new performance at a fraction-of-new price.
• The main case elevates the final drives well above the ground-level work area to protect them from impact loads, abrasion and contaminants.
• Heavy-Duty Extended Life (HDXL) undercarriage with DuraLink is built tough to stand up to high-impact and highly abrasive environments and applications.
