Description

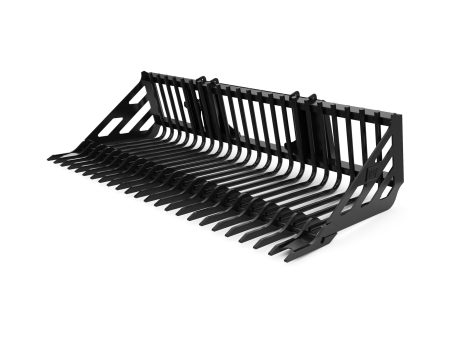

Skeleton Buckets Attachments
2349 mm (92 in), Plate Tine Style
Primarily used to remove and separate rocks and larger debris from soil and sand.
Width
92.5 in
Weight
21.4 lb
Height
21.4 in
Specifications
Width
92.5 in
Weight
842.2 lb
Height
21.4 in
Length
43.9 in
Sidewall Thickness
0.5 in
Tine Spacing
2.9 in
Tine Thickness
0.4 in
Number of Tines
29
Interface Type
Skid Steer Coupler
Features
Application
Designed for screening debris from finer materials such as sand and loose soil, and for reclaiming rock and landscaping materials buried by sediment. Cat® Skeleton buckets are for use on both Cat Skid Steer Loaders and Compact Track Loaders.
Plate Tine Style Bucket
Plate tines are 10 mm (0.4 in) in thickness with fishhook style tine points for better soil penetration to remove roots and reclaim construction material left on the jobsite.
Rock Dam
Rock dam improves material retention, reduces spillage and increases productivity.
Serrated Step
Serrated step ensures operator stability for entering and exiting the cab.
Wide Tine Spacing
Wide tine spacing allows for quicker screening and greater material separation.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
259D3 Compact Track Loaders
Gross Power – SAE J1995
55.4 kW
Rated Operating Capacities – 35% Tipping Load
915 kg
Operating Weight
4076 kg
