Description

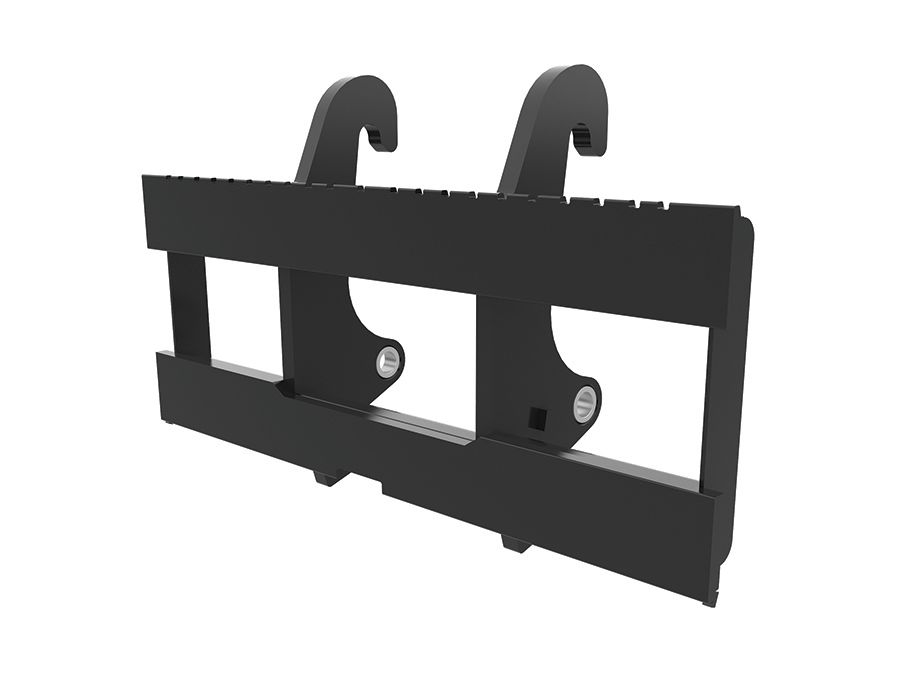

Pallet Fork Carriages Attachments
1550 mm (61 in)
Pallet fork carriages are used for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Height
35.3 in
Width
699.1 in
Weight
699.1 lb
Specifications
Height
35.3 in
Width
61 in
Weight
699.1 lb
Length
14.2 in
Interface Type
IT Coupler
Features
Application
Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.
Heavy Duty Backrest
Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.
Notched Rail-type Carriage
Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.
One carriage for all carrying capacities
The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.
Why choose RIMCO Barbados
Quality
Exceptional Service
All Emcompassing
Experienced
SUPPORTED EQUIPMENT
416 Center-Pivot Backhoe Loaders
Net Power – SAE J1349:2011
64 kW
Dig Depth – Standard
4348 mm
Operating Weight – Maximum
11000 kg
420 Center-Pivot Backhoe Loaders
Net Power – SAE J1349:2011
70 kW
Dig Depth – Standard
4360 mm
Operating Weight – Maximum
11000 kg
428F2 Side Shift Backhoe Loaders
Power – Net
64.9 kW
Operating Weight – Nominal
8425 kg
Operating Weight – Maximum
11000 kg
